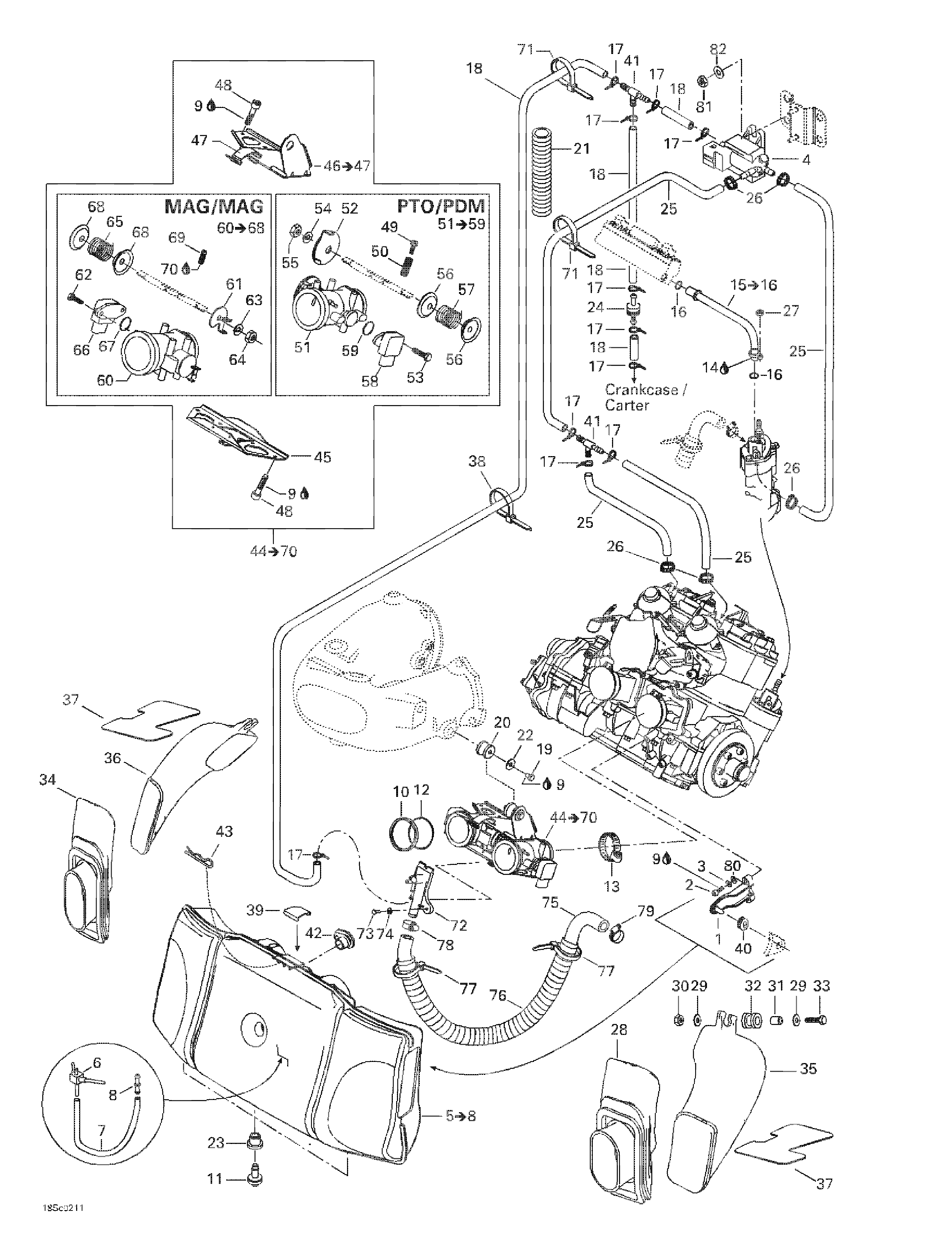

02- Air Intake System для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1273000123 Air Silencer SupportAir Silencer Support
-
2205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
3234061600 Flat Washer 6 mmFlat Washer 6 mm
-
4270600044 Soleno‹d ValveSoleno‹d Valve
-
5273000209 Air Silencer. Includes 5 - 8.Air Silencer. Includes 5 - 8.
-
7415080100 Line (Meter)Line (Meter)
-
8273000181 ConnectorConnector
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10293250122 GasketGasket
-
11275500454 Check ValveCheck Valve
-
12293250065 O-RingO-Ring
-
13293650079 Norma Gear ClampNorma Gear Clamp
-
14293800070 Loctite Antiseize Lube, 8 ozLoctite Antiseize Lube, 8 oz
-
15270600022 Pressure Hose. Includes 15 - 16.Pressure Hose. Includes 15 - 16.
-
16293300070 O-RingO-Ring
-
17293750001 Tie Rap 94 mmTie Rap 94 mm
-
18270000374 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
19207181260 Hexagonal Screw M8 x 12Hexagonal Screw M8 x 12
-
20274000839 IsolatorIsolator
-
21293100011 Tubing 1'' (meter)Tubing 1'' (meter)
-
22234082600 Flat Washer 8 mmFlat Washer 8 mm
-
23293720064 GrommetGrommet
-
24275500398 Check ValveCheck Valve
-
25270000471 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
26293650100 Gear Clamp OetikerGear Clamp Oetiker
-
27232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
28273000163 Intake Adaptor (PTO)Intake Adaptor (PTO)
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
31272000074 Spacer 8 mmSpacer 8 mm
-
32278001260 InsulatorInsulator
-
33207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
34273000164 Intake Adaptor (MAG)Intake Adaptor (MAG)
-
35273000151 Air Duct (PTO)Air Duct (PTO)
-
36273000150 Air Duct (MAG)Air Duct (MAG)
-
37273000165 Protector PadProtector Pad
-
38414115200 Tie Rap 180 mmTie Rap 180 mm
-
39273000204 Support PlateSupport Plate
-
40293720052 GrommetGrommet
-
41293710068 ''T'' Fitting''T'' Fitting
-
42270600024 Female Adaptor (Air/Oil)Female Adaptor (Air/Oil)
-
43250400015 Hair PinHair Pin
-
44270600052 Throttle Body Ass'y. Includes 44 - 70.Throttle Body Ass'y. Includes 44 - 70.
-
45270600026 Lower Support (Throttle Body)Lower Support (Throttle Body)
-
46270600045 Upper Support Ass'y (Throttle Body). Includes 46 - 47.Upper Support Ass'y (Throttle Body). Includes 46 - 47.
-
47270600046 Latch BracketLatch Bracket
-
48205051060 Screw M5 x 10Screw M5 x 10
-
49270600047 Adjuster ScrewAdjuster Screw
-
50270600048 SpringSpring
-
51270600053 Throttle Body (PTO). Includes 51 - 59.Throttle Body (PTO). Includes 51 - 59.
-
52270600034 Throttle Lever Ass'yThrottle Lever Ass'y
-
53270600039 Potentiometer ScrewPotentiometer Screw
-
54234161601 Lock Washer 6 mmLock Washer 6 mm
-
55232061600 Hexagonal Nut M6Hexagonal Nut M6
-
56270600036 Spring GuideSpring Guide
-
57270600037 SpringSpring
-
58270000251 Position Sensor. Includes 58 - 59.Position Sensor. Includes 58 - 59.
-
59270000544 O-RingO-Ring
-
60270600054 Throttle Body (MAG). Includes 60 - 68.Throttle Body (MAG). Includes 60 - 68.
-
61270600035 Pick-Up LeverPick-Up Lever
-
62270600039 Potentiometer ScrewPotentiometer Screw
-
63234161601 Lock Washer 6 mmLock Washer 6 mm
-
64232061600 Hexagonal Nut M6Hexagonal Nut M6
-
65270600038 SpringSpring
-
66270000251 Position Sensor. Includes 66 - 67.Position Sensor. Includes 66 - 67.
-
67270000544 O-RingO-Ring
-
68270600036 Spring GuideSpring Guide
-
69270600049 Idle ScrewIdle Screw
-
70270600050 Cover (Loctite Ultra Grey)Cover (Loctite Ultra Grey)
-
71293750002 Tie Rap 130 mmTie Rap 130 mm
-
72270600023 Air Intake AdaptorAir Intake Adaptor
-
73207341260 Hexagonal Screw M4 x 12 (Scotch Grip)Hexagonal Screw M4 x 12 (Scotch Grip)
-
74234042600 Flat Washer 4 mmFlat Washer 4 mm
-
75270600021 Air Intake HoseAir Intake Hose
-
76415116600 Protective Shield (mm)Protective Shield (mm)
-
77293750002 Tie Rap 130 mmTie Rap 130 mm
-
78293650130 Tridon Gear ClampTridon Gear Clamp
-
79293650131 Tridon Gear ClampTridon Gear Clamp
-
80234161601 Lock Washer 6 mmLock Washer 6 mm
-
81232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
82234051600 Flat Washer 5 mmFlat Washer 5 mm
