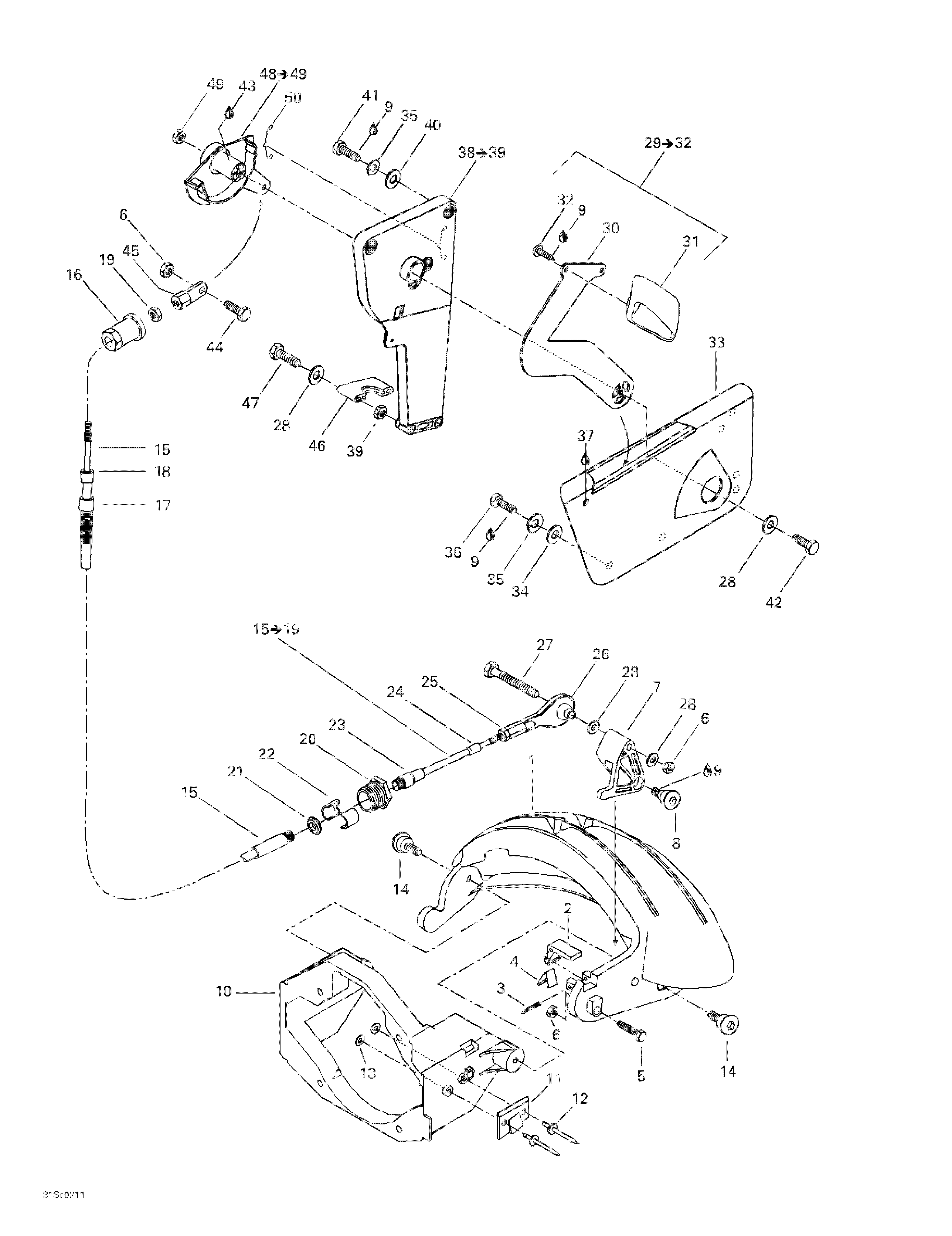

05- Reverse для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1271000947 Reverse GateReverse Gate
-
2271000430 Lever HookLever Hook
-
3211400009 Roll Pin 1/8''Roll Pin 1/8''
-
4271000431 SpringSpring
-
5207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7271000583 Cable LeverCable Lever
-
8211000077 Shoulder Screw M8Shoulder Screw M8
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10204170158 Gate SupportGate Support
-
11271000485 Stop PawlStop Pawl
-
12293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
13211200035 Flat WasherFlat Washer
-
14211000007 ScrewScrew
-
15204390204 Reverse Cable Ass'y. Includes 15 - 19.Reverse Cable Ass'y. Includes 15 - 19.
-
16277000167 Knob AdjusterKnob Adjuster
-
17277000473 Large BootLarge Boot
-
18277000466 Small BootSmall Boot
-
19212100005 Hex. Nut 10-32 UNFHex. Nut 10-32 UNF
-
20277000052 Cable LockCable Lock
-
21211100009 Rubber WasherRubber Washer
-
22277000055 Half RingHalf Ring
-
23277000473 Large BootLarge Boot
-
24277000466 Small BootSmall Boot
-
25212100005 Hex. Nut 10-32 UNFHex. Nut 10-32 UNF
-
26277000153 Ball JointBall Joint
-
27207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
28234061600 Flat Washer M6Flat Washer M6
-
29271000586 Handle Reverse Ass'y. Includes 29 - 32.Handle Reverse Ass'y. Includes 29 - 32.
-
30271000613 LeverLever
-
31271000614 Reverse HandleReverse Handle
-
32208451260 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
33271001055 Housing Reverse HandleHousing Reverse Handle
-
34211200033 Flat WasherFlat Washer
-
35234151601 Lock Washer 5 mmLock Washer 5 mm
-
36207151260 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
37296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
38271000584 Reverse Cable Support. Includes 38 - 39.Reverse Cable Support. Includes 38 - 39.
-
39232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
40234052600 Flat Washer 5 mmFlat Washer 5 mm
-
41207151660 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
42207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
43293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
44211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
45277000646 JointJoint
-
46277000162 Thrust SupportThrust Support
-
47207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
48271000585 Lever Interior. Includes 48 - 49.Lever Interior. Includes 48 - 49.
-
49232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
50271000612 SpringSpring
