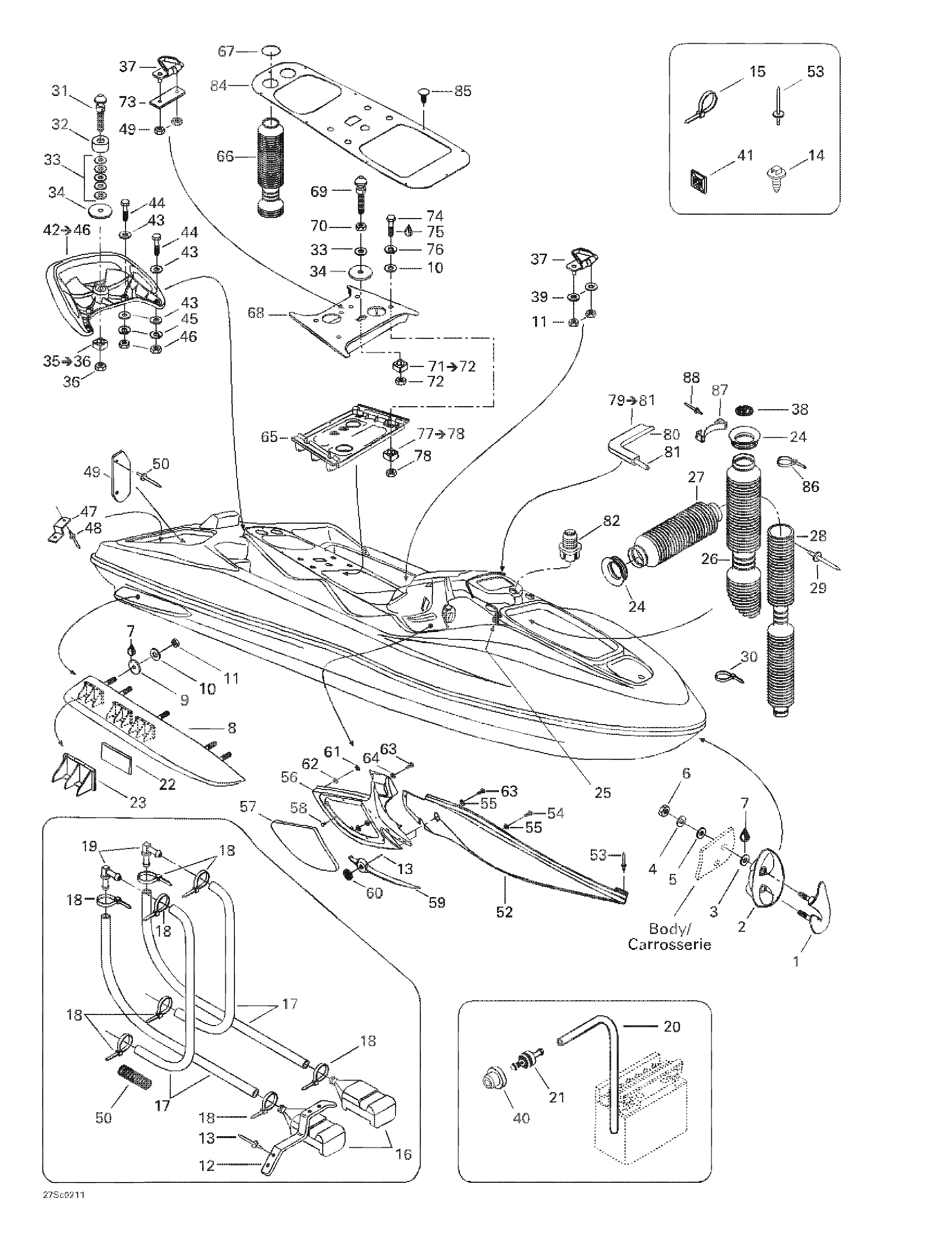

09- Body для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1292000708 Bow Eye (Black)Bow Eye (Black)
-
2292000453 Shell (Black)Shell (Black)
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4234082600 Flat Washer 8 mmFlat Washer 8 mm
-
5293830037 Rubber WasherRubber Washer
-
6232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292000594 R.H. SponsonR.H. Sponson
-
292000595 L.H. SponsonL.H. Sponson
-
9293250026 GasketGasket
-
10234062600 Flat Washer 6 mmFlat Washer 6 mm
-
11232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
12292000398 L.H. Spring ClipL.H. Spring Clip
-
13293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293730018 Dart MountDart Mount
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
16292000688 Screen BailerScreen Bailer
-
17275000007 Hose 8 mmHose 8 mm
-
18293750001 Tie Rap 94 mmTie Rap 94 mm
-
19293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
20276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
21275500489 Check ValveCheck Valve
-
22292000414 CushionCushion
-
23293450149 Sponson InsertSponson Insert
-
24291001100 Adapter VentAdapter Vent
-
25291001512 ProtectorProtector
-
26291001772 Vent HoseVent Hose
-
27291001775 Vent HoseVent Hose
-
28204070575 Vent HoseVent Hose
-
29293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
30293750008 Tie Rap 350 mmTie Rap 350 mm
-
31291000664 Latch StudLatch Stud
-
32293830025 Rubber PadRubber Pad
-
33234002600 Flat Washer 10 mmFlat Washer 10 mm
-
34291000628 Rubber WasherRubber Washer
-
35271000598 Nut Housing. Includes 35 - 36.Nut Housing. Includes 35 - 36.
-
36232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
37291001479 Hook (Seat)Hook (Seat)
-
38291001617 RestrictorRestrictor
-
39234062600 Flat Washer 6 mmFlat Washer 6 mm
-
40293720029 GrommetGrommet
-
41293750015 Tie Rap MountTie Rap Mount
-
42295500369 Grab Handle (Black). Includes 42 - 46.Grab Handle (Black). Includes 42 - 46.
-
43234062600 Flat Washer M6Flat Washer M6
-
44207064060 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
45234161601 Lock washer M6Lock washer M6
-
46232061600 Hex. Nut M6Hex. Nut M6
-
47204050341 Retaining PlateRetaining Plate
-
48293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
49204050197 Storage ExtensionStorage Extension
-
50293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
52291001403 L.H. MouldingL.H. Moulding
-
291001404 R.H. MouldingR.H. Moulding
-
53293150065 RivetRivet
-
54241141660 Screw K40 x 16Screw K40 x 16
-
55234052600 Flat Washer 5 mmFlat Washer 5 mm
-
56269500715 R.H. Intake Grill (Starboard)R.H. Intake Grill (Starboard)
-
269500714 L.H. Intake Grill (Port)L.H. Intake Grill (Port)
-
57204070954 R.H. Knee PadR.H. Knee Pad
-
204070956 L.H. Knee PadL.H. Knee Pad
-
58414644300 Windshield DartWindshield Dart
-
59269500716 Finition PlateFinition Plate
-
60516000983 Logo BombardierLogo Bombardier
-
61204100060 Jam NutJam Nut
-
62234062600 Flat WasherFlat Washer
-
63241141660 Screw K40 x 16Screw K40 x 16
-
64211200033 Flat WasherFlat Washer
-
65291001281 Bridge LowerBridge Lower
-
66291001772 Vent Tube (Rear)Vent Tube (Rear)
-
67293300063 O-RingO-Ring
-
68291000851 Bridge UpperBridge Upper
-
69291000945 Latch StudLatch Stud
-
70232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
71271000598 Nut Housing. Includes 71 - 72.Nut Housing. Includes 71 - 72.
-
72232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
73291000079 Reinforcement PlateReinforcement Plate
-
74207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
75293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
76234161601 Lock Washer 6 mmLock Washer 6 mm
-
77269500252 Nut Housing. Includes 77 - 78.Nut Housing. Includes 77 - 78.
-
78232061600 Hex. Nut M6Hex. Nut M6
-
79293830090 Rubber Pad. Includes 79 - 81.Rubber Pad. Includes 79 - 81.
-
80293200017 Neoprene SealNeoprene Seal
-
81276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
82293720042 GrommetGrommet
-
83414115200 Tie RapTie Rap
-
84204070561 Engine Access PanelEngine Access Panel
-
85293730006 Dart (Black)Dart (Black)
-
86293750019 Tie RapTie Rap
-
87274000891 SupportSupport
-
88293150043 Pop Rivet 3/16Pop Rivet 3/16
