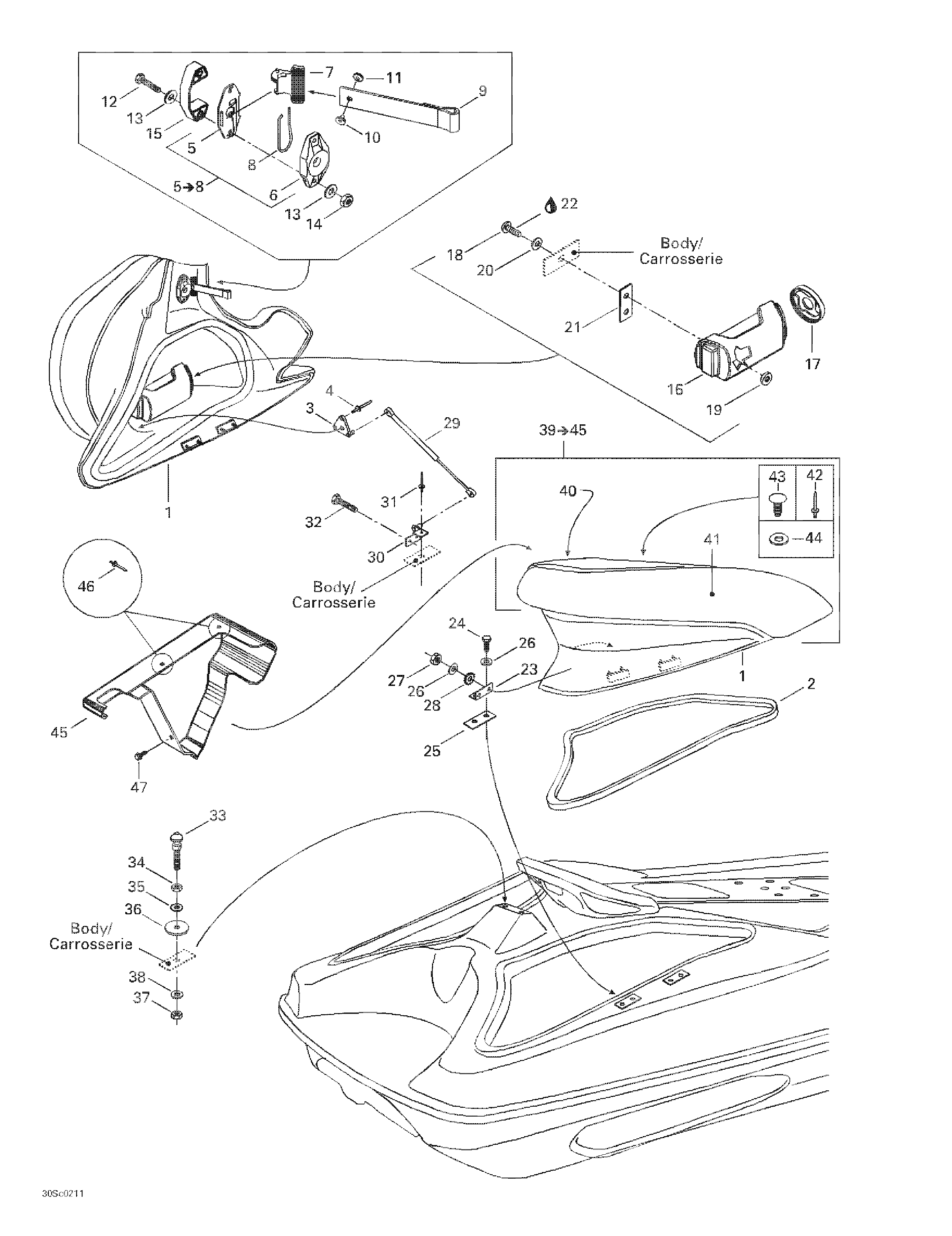

09- Body для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1204071638 R.H. Side Door Ass'y (Starboard)R.H. Side Door Ass'y (Starboard)
-
204071642 L.H. Side Door Ass'y (Port)L.H. Side Door Ass'y (Port)
-
2293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
3204071673 Body Cylinder SupportBody Cylinder Support
-
4293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
5204070577 Latch Ass'y. Includes 5 - 8.Latch Ass'y. Includes 5 - 8.
-
5269700020 Latch CoverLatch Cover
-
6269000015 Latch BaseLatch Base
-
7269000016 Latch LeverLatch Lever
-
8269700017 Latch SpringLatch Spring
-
9204071051 StrapStrap
-
10293150070 Ratchet RivetRatchet Rivet
-
11293150073 Ratchet RivetRatchet Rivet
-
12207064560 Hex. Screw M6 x 45Hex. Screw M6 x 45
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
15269700015 ShimShim
-
16204630105 Storage Housing (Port Side Door)Storage Housing (Port Side Door)
-
17269500604 Storage CapStorage Cap
-
18208662060 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
20234062600 Flat Washer 6 mmFlat Washer 6 mm
-
21293250037 GasketGasket
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23204070705 HingeHinge
-
24207152560 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
25204070720 InsertInsert
-
26234052600 Flat Washer 5 mmFlat Washer 5 mm
-
27232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
28234461608 Serrated Lock WasherSerrated Lock Washer
-
29204071054 Retainer CylinderRetainer Cylinder
-
30204070678 Cylinder SupportCylinder Support
-
31293150039 Pop Rivet 3/16''Pop Rivet 3/16''
-
32207151660 Screw Hex M5 x 16Screw Hex M5 x 16
-
33204100065 Latch StudLatch Stud
-
34232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
35234002600 Flat Washer 10 mmFlat Washer 10 mm
-
36291000628 Rubber WasherRubber Washer
-
37232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
38204100043 Flat WasherFlat Washer
-
39204611164 R.H. Sundeck Ass'y (Starboard). Includes 39 - 45.R.H. Sundeck Ass'y (Starboard). Includes 39 - 45.
-
204611178 L.H. Sundeck Ass'y (Port)L.H. Sundeck Ass'y (Port)
-
40204612031 R.H. Cushion Ass'y (Starboard)R.H. Cushion Ass'y (Starboard)
-
204612032 L.H. Cushion Ass'y (Port)L.H. Cushion Ass'y (Port)
-
41204612029 R.H. Spoiler Ass'y (Starboard)R.H. Spoiler Ass'y (Starboard)
-
204612030 L.H. Spoiler Ass'y (Port)L.H. Spoiler Ass'y (Port)
-
42293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
43293730006 Dart (Black)Dart (Black)
-
44234062600 Flat Washer 6 mmFlat Washer 6 mm
-
45204070707 R.H. Cover Cap (Starboard)R.H. Cover Cap (Starboard)
-
204070706 L.H. Cover Cap (Port)L.H. Cover Cap (Port)
-
46293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
47241642060 Flanged Screw K40 x 20Flanged Screw K40 x 20
