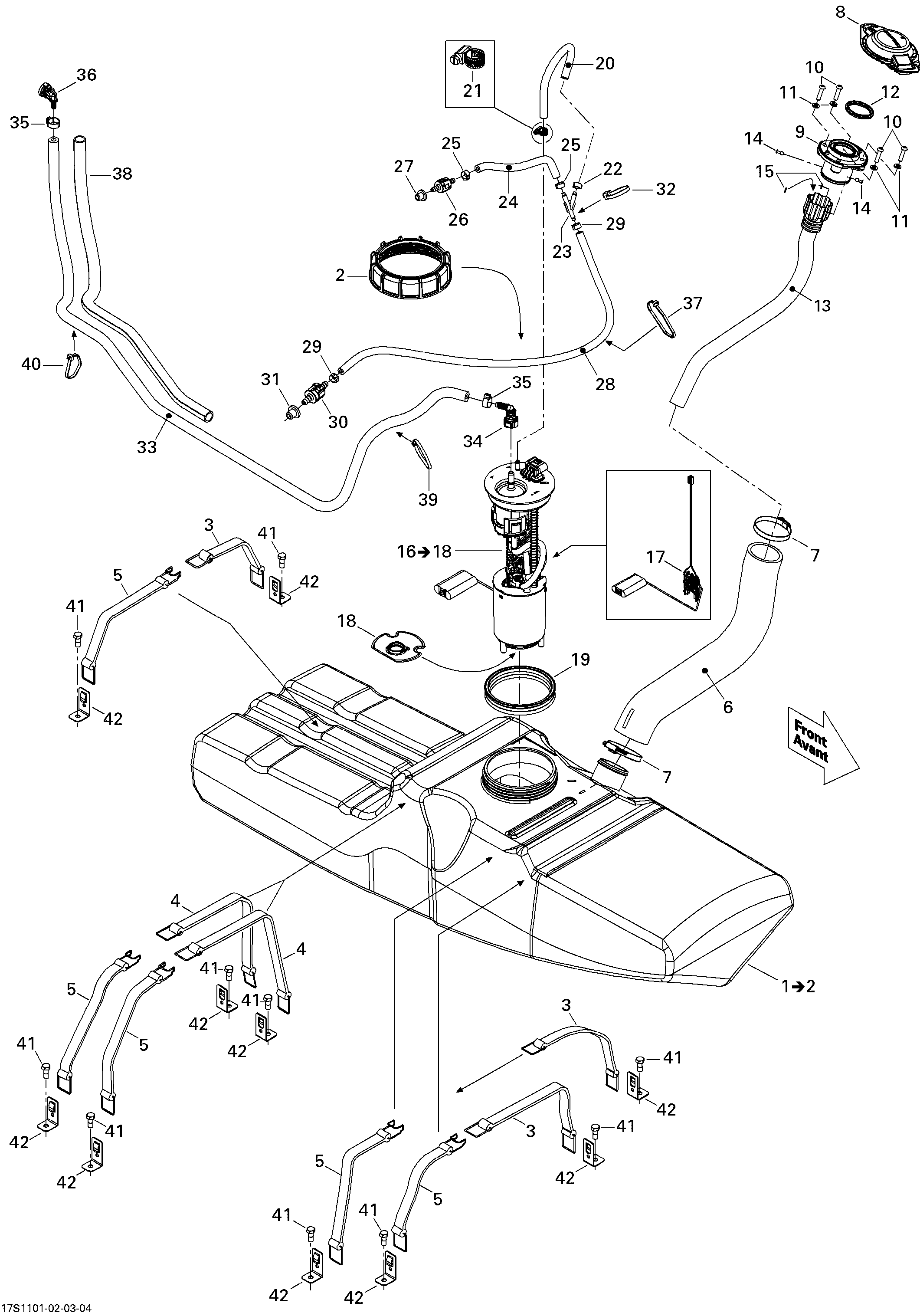

02- Fuel System для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
1275500783 Fuel Tank Ass'y. Includes 1 to 2Fuel Tank Ass'y. Includes 1 to 2
-
2250100062 Special Nut M130Special Nut M130
-
3293850087 Fuel Tank StrapFuel Tank Strap
-
4293850095 Fuel Tank StrapFuel Tank Strap
-
5293850094 Fuel Tank StrapFuel Tank Strap
-
6275500778 Filler Neck HoseFiller Neck Hose
-
7293650081 Norma ClampNorma Clamp
-
8275500722 Fuel Tank CapFuel Tank Cap
-
9275500744 Filler Neck, FuelFiller Neck, Fuel
-
10250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
11234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12293300139 X-RingX-Ring
-
13275500757 Filler Neck, InteriorFiller Neck, Interior
-
14293150032 Pop Rivet 1/8''Pop Rivet 1/8''
-
15234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
16275500779 Fuel Pump Ass'y. Includes 16 to 18Fuel Pump Ass'y. Includes 16 to 18
-
17275500780 Sensor LeverSensor Lever
-
18270600108 Fuel FilterFuel Filter
-
19293250173 GasketGasket
-
20275500549 Hose 1/4''Hose 1/4''
-
21293650084 Norma ClampNorma Clamp
-
22293650025 Oetiker Gear ClampOetiker Gear Clamp
-
23293710059 Y-FittingY-Fitting
-
24204300184 Hose-1/4Hose-1/4
-
25293650025 Oetiker Gear ClampOetiker Gear Clamp
-
26275500770 Check ValveCheck Valve
-
27293720029 GrommetGrommet
-
28204300184 Hose-1/4Hose-1/4
-
29293650025 Oetiker Gear ClampOetiker Gear Clamp
-
30275500774 Check ValveCheck Valve
-
31293720029 GrommetGrommet
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33296000331 BoyauBoyau
-
34275500700 Quick Attach 90°Quick Attach 90°
-
35293650053 Crimp ClampCrimp Clamp
-
36293710105 Elbow Fitting 90°Elbow Fitting 90°
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38415080000 Tubing 16 mmTubing 16 mm
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
42275500743 Strap Clip 90°Strap Clip 90°
