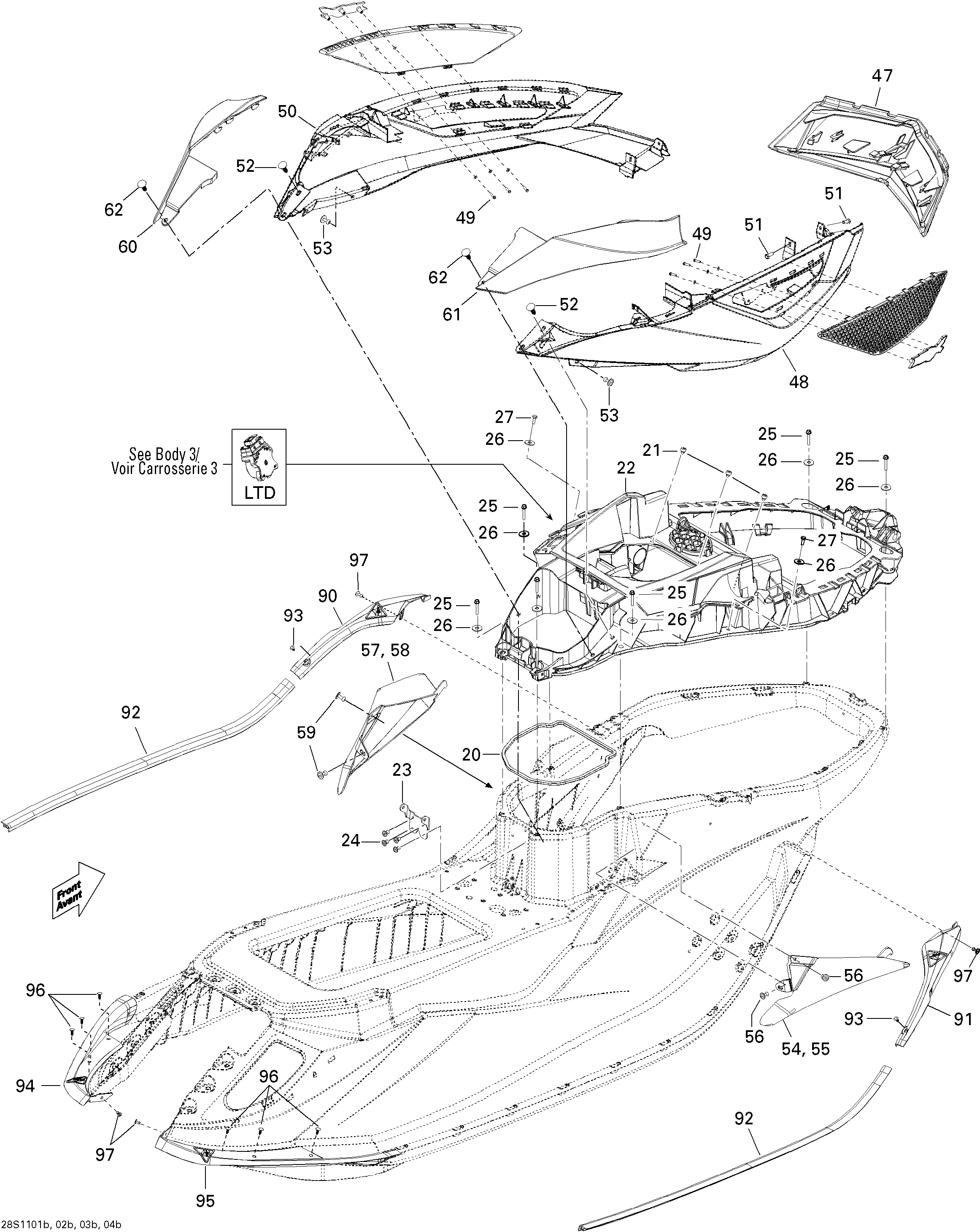

09- Body, Rear View 2 для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
20293250200 Neoprene SealNeoprene Seal
-
21293830005 Rubber PlugRubber Plug
-
22291003017 Front ModuleFront Module
-
23291002865 Seat PivotSeat Pivot
-
24293150186 Pop Rivet 3/16Pop Rivet 3/16
-
25243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
26234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
27207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
47269501797 Front GridFront Grid
-
48291003289 RH Front Moulding Ass'yRH Front Moulding Ass'y
-
49291003290 LH Front Moulding Ass'yLH Front Moulding Ass'y
-
50241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
51211000106 Hex. Forming Screw M6 X 16Hex. Forming Screw M6 X 16
-
52293730006 Dart, BlackDart, Black
-
53293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
54291003192 RH Seat Pad, BlackRH Seat Pad, Black
-
56293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
57291003193 LH Seat Pad, BlackLH Seat Pad, Black
-
59293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
60291002919 LH Upper Body Cap Cover, RedLH Upper Body Cap Cover, Red
-
61291002921 RH Upper Body Cap Cover, RedRH Upper Body Cap Cover, Red
-
62293730006 Dart, BlackDart, Black
-
90291002837 LH Front Scraper JointLH Front Scraper Joint
-
91291002838 RH Front Scraper JointRH Front Scraper Joint
-
92291002839 Midle Sraper JointMidle Sraper Joint
-
93293730010 Dart, BlackDart, Black
-
94291002696 LH Rear Scraper JointLH Rear Scraper Joint
-
95291002697 RH Rear Scraper JointRH Rear Scraper Joint
-
96293730006 Dart, BlackDart, Black
-
97293150186 Pop Rivet 3/16Pop Rivet 3/16
