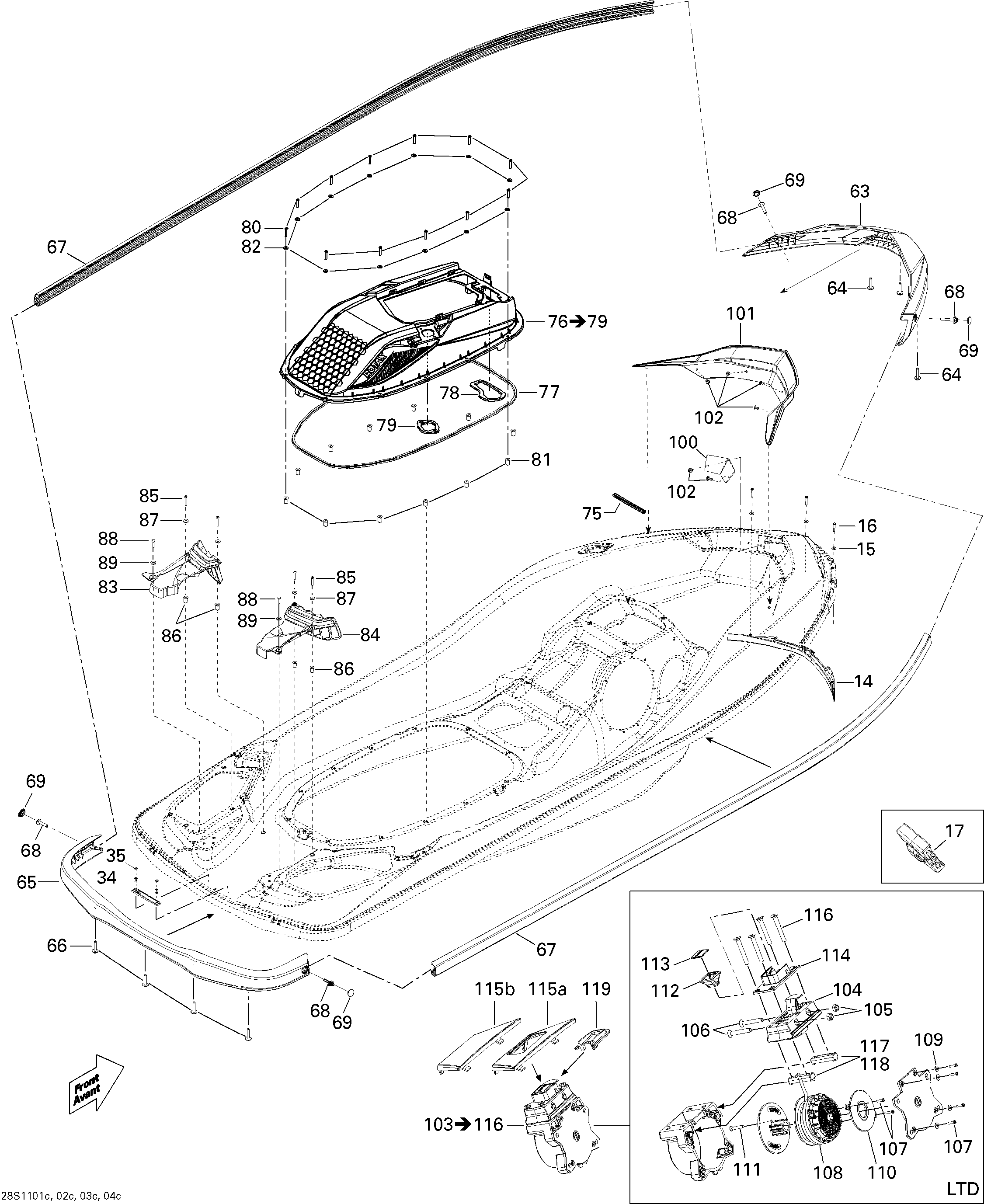

09- Body, Rear View 3 для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
14291002818 Deck NoseDeck Nose
-
15234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
16241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
17293750025 Tie-Rap MountTie-Rap Mount
-
34293150016 Rivet 1/8''Rivet 1/8''
-
35293000014 Snap Cap, BlackSnap Cap, Black
-
63291002588 Front BumberFront Bumber
-
64250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
65291002592 Rear BumberRear Bumber
-
66250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
67291003050 Lateral BumperLateral Bumper
-
68250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
69291002744 Bumber CapBumber Cap
-
75271000110 Protection TrimProtection Trim
-
76291002763 Deck Extension Ass'yDeck Extension Ass'y
-
77293250185 Lip SealLip Seal
-
78293250205 Lip SealLip Seal
-
79293250209 Lip SealLip Seal
-
80205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
81250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
82234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
83291002658 LH Rear GrillLH Rear Grill
-
84291002698 RH Rear GrillRH Rear Grill
-
85205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
86250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
87234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
88207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
89234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
100293250231 GasketGasket
-
101291003081 Body DeflectorBody Deflector
-
102293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
115b291002756 Front Rewinder CapFront Rewinder Cap
