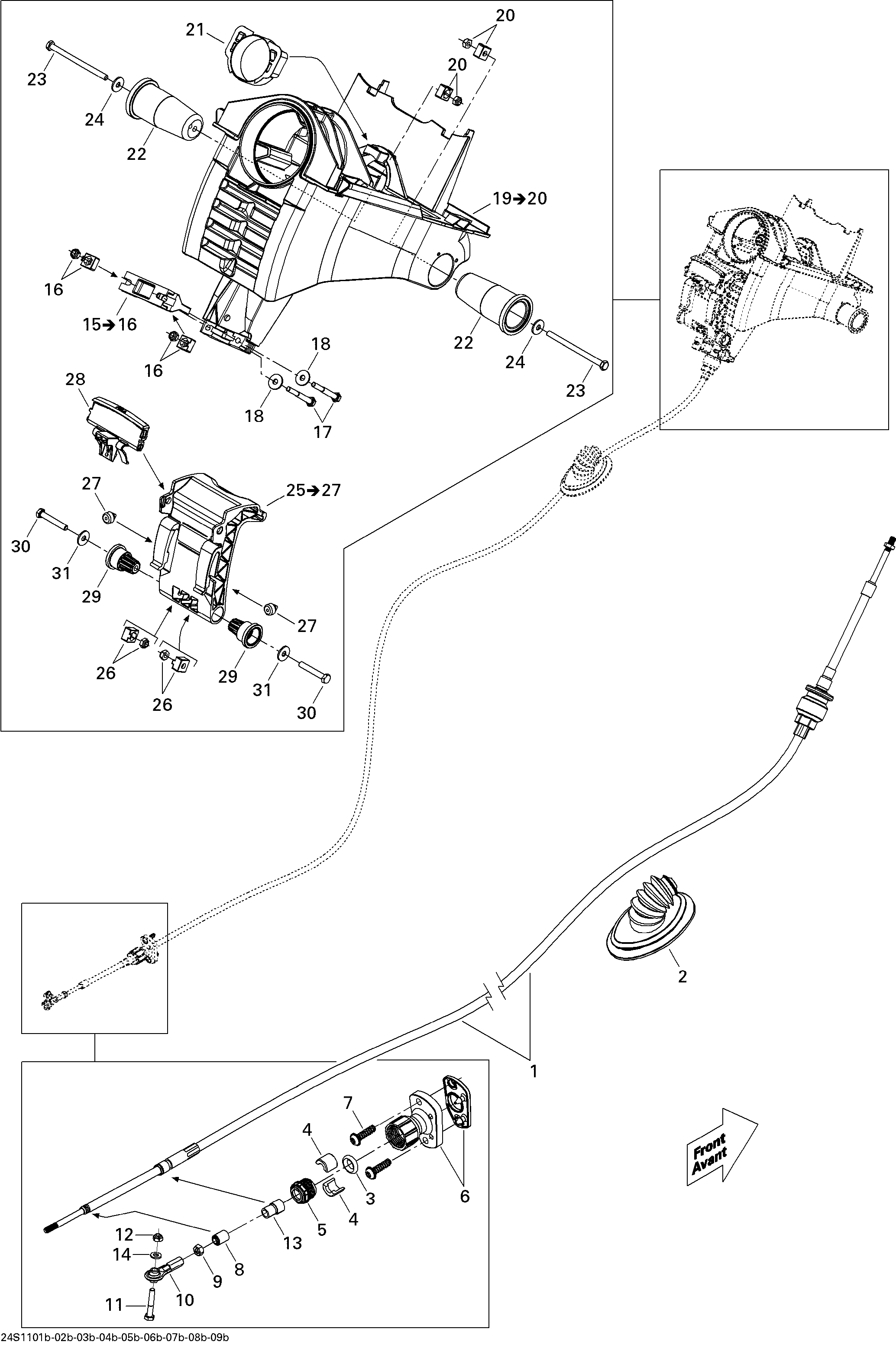

07- Steering 2 для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
1277001602 Steering CableSteering Cable
-
2293720083 GrommetGrommet
-
3293830063 Rubber WasherRubber Washer
-
4277001527 Half RingHalf Ring
-
5277001729 Steering Cable LockSteering Cable Lock
-
6277001784 Cable Adaptor Ass'yCable Adaptor Ass'y
-
7250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
8277001582 Small BootSmall Boot
-
9211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
10277000775 Ball JointBall Joint
-
11207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
12232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
13277001583 Large BootLarge Boot
-
14234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15277001655 Thrust Support Ass'y. Includes 15 to 16Thrust Support Ass'y. Includes 15 to 16
-
16269501166 Nut Housing Ass'yNut Housing Ass'y
-
17207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
18234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
19277001739 Steering Support Ass'y. Includes 19 to 20Steering Support Ass'y. Includes 19 to 20
-
20269501166 Nut Housing Ass'yNut Housing Ass'y
-
21277001741 Wear RingWear Ring
-
22277001605 Steering Support PivotSteering Support Pivot
-
23207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
24234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25277001658 Handle Ass'y. Includes 25 to 27Handle Ass'y. Includes 25 to 27
-
26269501166 Nut Housing Ass'yNut Housing Ass'y
-
27293830005 Rubber PlugRubber Plug
-
28277001616 LockLock
-
29277001652 PivotPivot
-
30207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
31234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
