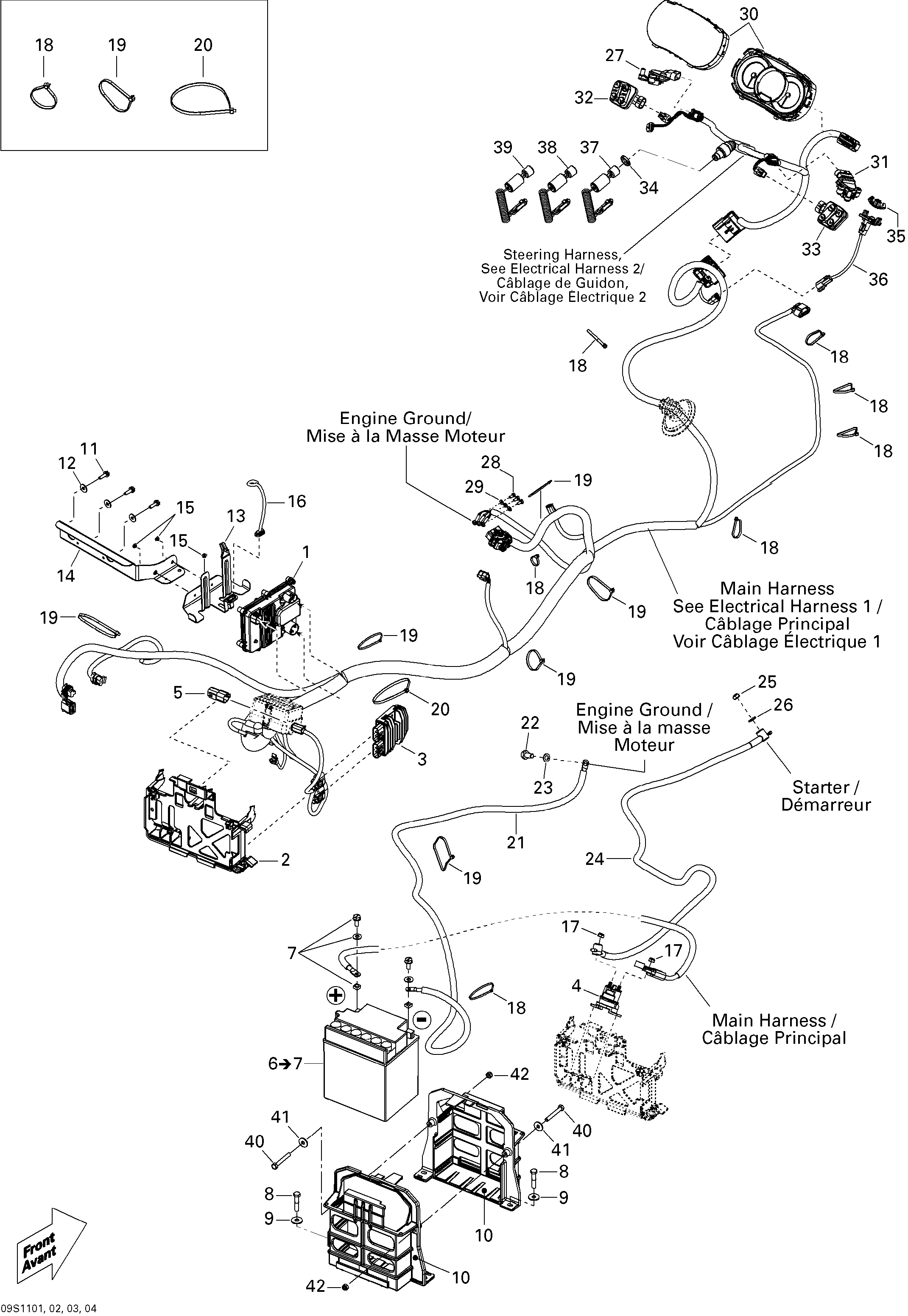

10- Electrical System для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
1278002491 Electronic Suspension ModuleElectronic Suspension Module
-
2278002338 Electrical Component SupportElectrical Component Support
-
3710001103 Voltage RegulatorVoltage Regulator
-
4278002347 Starter RelayStarter Relay
-
5278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
6278001882 Battery, 30 AmperesBattery, 30 Amperes
-
7295500849 Battery Fastener KitBattery Fastener Kit
-
8207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10278002339 Battery SupportBattery Support
-
11243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
12234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13278002403 Suspension Module SupportSuspension Module Support
-
14278002402 SupportSupport
-
15204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
16269501299 Rubber LatchRubber Latch
-
17232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
21278002278 Ground CableGround Cable
-
22207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
23234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
24278002279 Starter CableStarter Cable
-
25232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
26234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27278002284 LH Throttle SensorLH Throttle Sensor
-
28207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
29234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
30278002659 Main Info Center PREMIUMMain Info Center PREMIUM
-
31278002283 RH Throttle SensorRH Throttle Sensor
-
32278002603 SwitchSwitch
-
33278002602 SwitchSwitch
-
34278000508 Safety Switch NutSafety Switch Nut
-
35278002323 O.T.A.S. ActuatorO.T.A.S. Actuator
-
36278002324 O.T.A.S. SensorO.T.A.S. Sensor
-
37278002483 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
38278002484 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
-
40207164560 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
41234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
42232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
