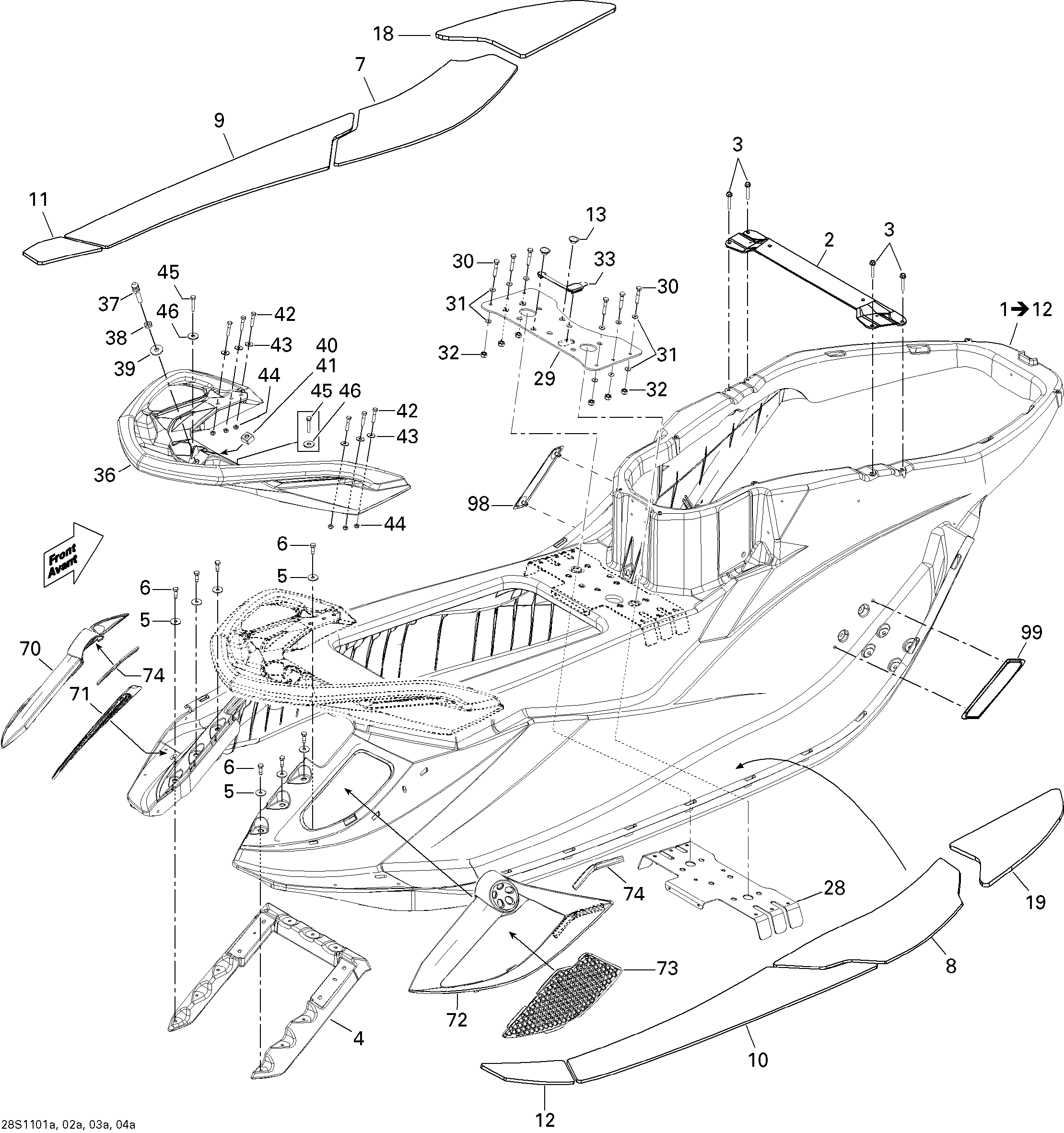

09- Body, Rear View 1 для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
1291003269 Upper Deck Ass'y. Includes 1 1 to 12Upper Deck Ass'y. Includes 1 1 to 12
-
2291002778 Module StifnerModule Stifner
-
3243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
4279000214 Rear Pivot Ass'yRear Pivot Ass'y
-
5250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
6207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
7291002609 LH Front Midle CarpetLH Front Midle Carpet
-
8291002610 RH Front Midle CarpetRH Front Midle Carpet
-
9291002611 LH Rear Midle CarpetLH Rear Midle Carpet
-
10291002612 RH Rear Midle CarpetRH Rear Midle Carpet
-
11291002775 LH Rear CarpetLH Rear Carpet
-
12291002776 RH Rear CarpetRH Rear Carpet
-
13291002950 CapCap
-
18291002607 LH Front CarpetLH Front Carpet
-
19291002608 RH Front CarpetRH Front Carpet
-
28291003306 Central ReinforcementCentral Reinforcement
-
29291002926 Superior ReinforcementSuperior Reinforcement
-
30207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
31234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
36291004621 Black Rear HandleBlack Rear Handle
-
37291002784 Seat StudSeat Stud
-
38232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
39234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
40271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
41232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
42207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
43234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
44232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
45207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
46250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
70291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
71291002740 LH Rear Side GrilleLH Rear Side Grille
-
72291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
73291002742 RH Rear Side GrilleRH Rear Side Grille
-
74293250087 Gasket, NeopreneGasket, Neoprene
-
98291002694 LH Footrest CoverLH Footrest Cover
-
99291002695 RH Footrest CoverRH Footrest Cover
