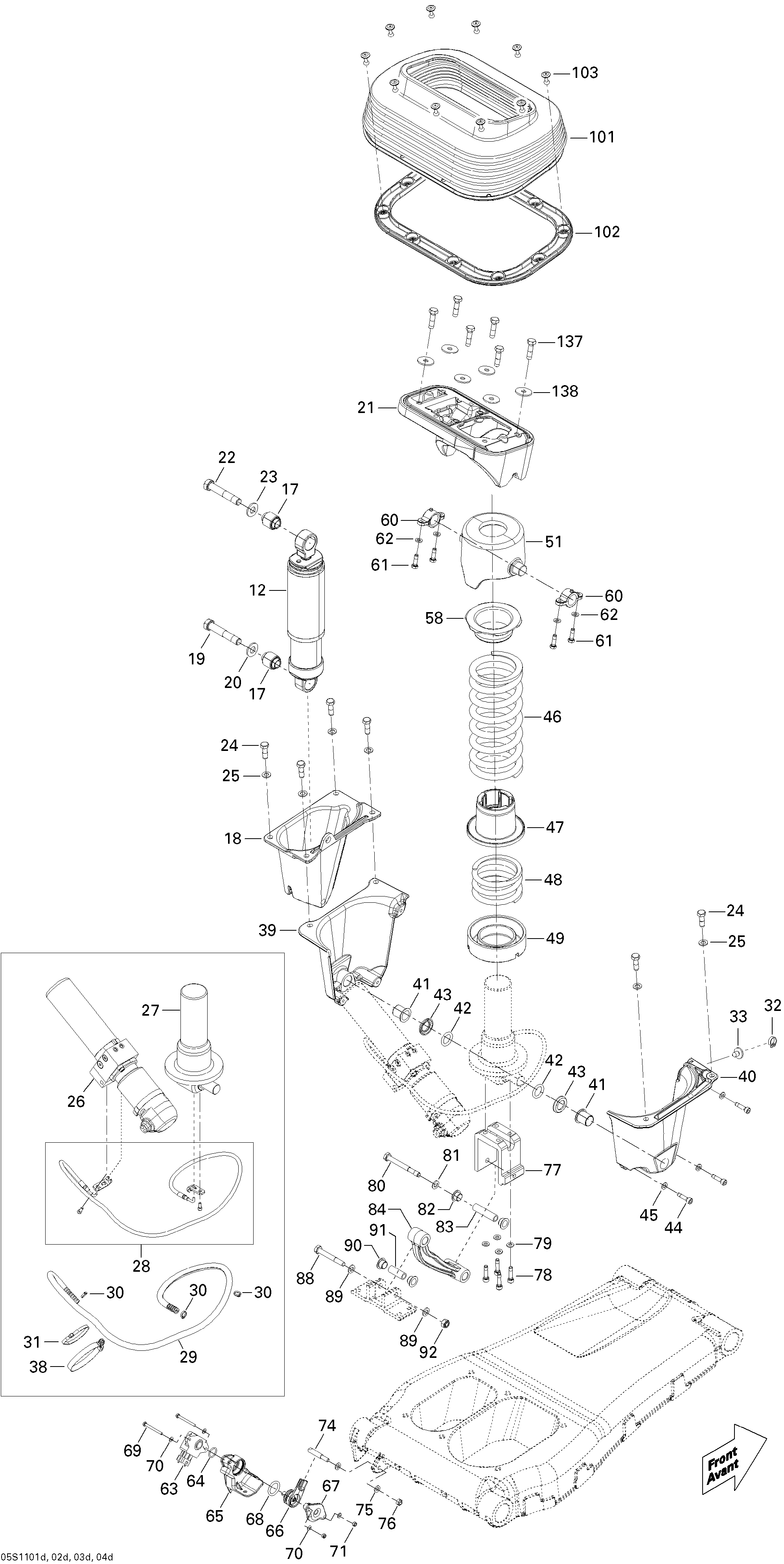

09- Seat Suspension 4 для BRP GTX iS 215 - 2011
-
№АртикулНазвание
-
12279000126 Shock AbsorberShock Absorber
-
17279000051 BushingBushing
-
18279000055 Shock Lower HolderShock Lower Holder
-
19207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
20250200053 Flat Washer M12Flat Washer M12
-
21279000057 Shock Upper HolderShock Upper Holder
-
22207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
23250200053 Flat Washer M12Flat Washer M12
-
24207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
25234080600 Flat Washer 8 mmFlat Washer 8 mm
-
26279000207 PumpPump
-
27279000117 ActuatorActuator
-
28279000162 Connector HoseConnector Hose
-
29515175442 Tubing 6 mmTubing 6 mm
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33293730040 Mount DartMount Dart
-
38293650079 Norma ClampNorma Clamp
-
39279000070 LH Spring HolderLH Spring Holder
-
40279000074 RH Spring HolderRH Spring Holder
-
41279000103 BushingBushing
-
42279000104 O-RingO-Ring
-
43279000105 BushingBushing
-
44205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
45234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
46279000128 Painted SpringPainted Spring
-
47279000130 Spring SpacerSpring Spacer
-
48279000131 Painted SpringPainted Spring
-
49279000121 Lower Spring ProtectorLower Spring Protector
-
51279000061 Upper Spring HolderUpper Spring Holder
-
58279000134 Upper Spring ProtectorUpper Spring Protector
-
60279000106 ClampClamp
-
61207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
62234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
63270000251 Position SensorPosition Sensor
-
64270000544 O-RingO-Ring
-
65279000098 Position Sensor BracketPosition Sensor Bracket
-
66279000099 Sensor LeverSensor Lever
-
67279000107 Position Sensor CoverPosition Sensor Cover
-
68279000108 O-RingO-Ring
-
69207144060 Hex. Screw M4 X 40Hex. Screw M4 X 40
-
70234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
71232541200 Elastic Stop Nut M4Elastic Stop Nut M4
-
74279000139 Threaded RodThreaded Rod
-
75234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
76232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
77279000154 Spring Alignment AdaptorSpring Alignment Adaptor
-
78205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
79234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
80207287560 Hex. Screw M8 x 75 (Scotch Grip)Hex. Screw M8 x 75 (Scotch Grip)
-
81234080600 Flat Washer 8 mmFlat Washer 8 mm
-
82279000137 BushingBushing
-
83279000138 SpacerSpacer
-
84279000157 Spring Alignment ArmSpring Alignment Arm
-
88207086060 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
89234080600 Flat Washer 8 mmFlat Washer 8 mm
-
90279000137 BushingBushing
-
91279000153 SpacerSpacer
-
92232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
101279000008 Central BellowsCentral Bellows
-
102279000010 Retaining PlateRetaining Plate
-
103293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
137207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
138250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
