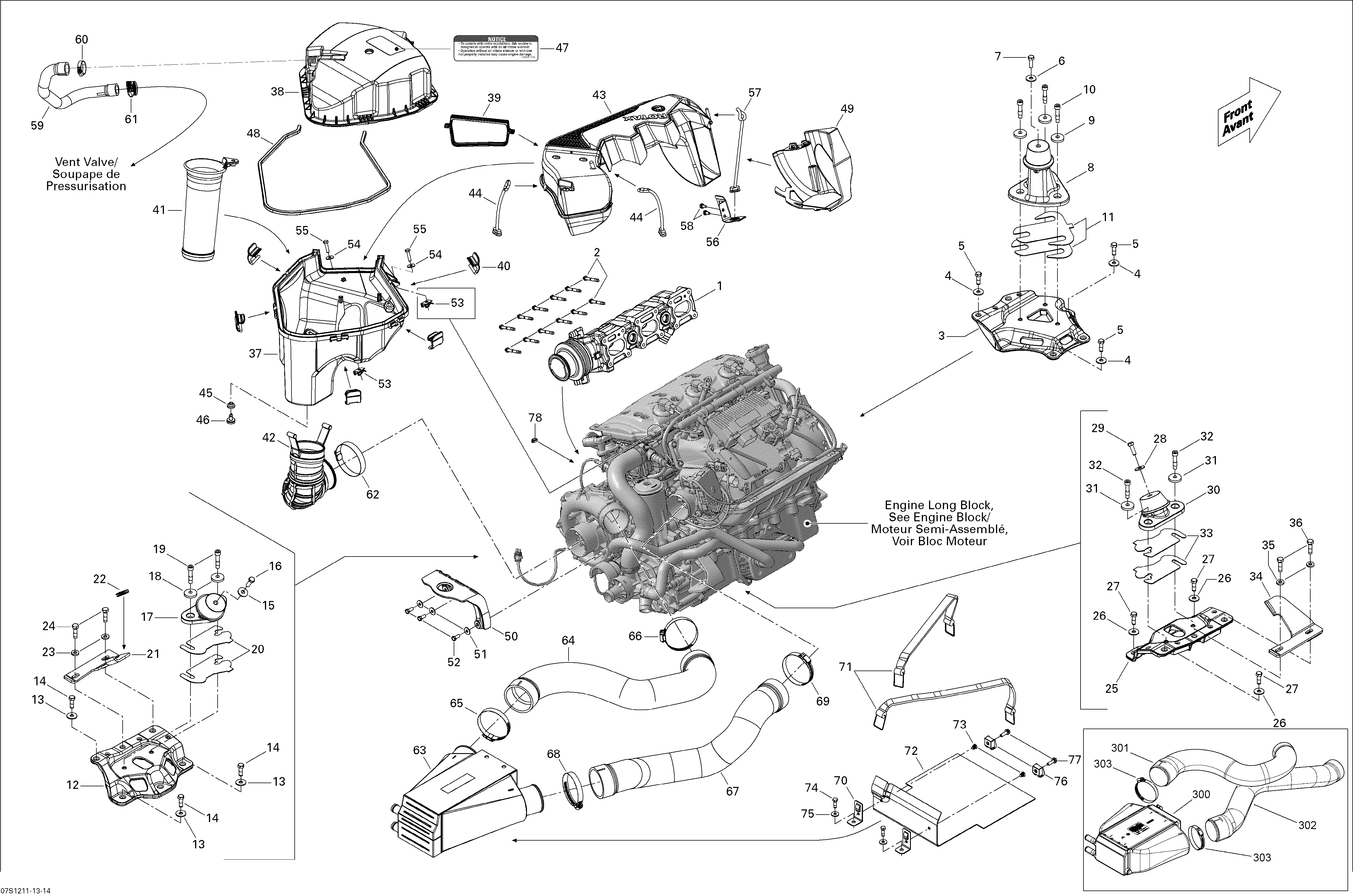

01- Engine And Air Intake Silencer для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
1274001434 Exhaust ManifoldExhaust Manifold
-
2420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3270000767 SpacerSpacer
-
4234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
6234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8270000886 Rubber MountRubber Mount
-
9250200018 Cone WasherCone Washer
-
10250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
11270000770 Shim 1.3 mmShim 1.3 mm
-
12270000763 SpacerSpacer
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
15234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
16207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
17270000882 Rubber MountRubber Mount
-
18250200018 Cone WasherCone Washer
-
19250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
20270000762 Shim 1.3 mmShim 1.3 mm
-
21270000796 LH StopperLH Stopper
-
22204610371 Trim, BlackTrim, Black
-
23293050001 Flat WasherFlat Washer
-
24250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
25270000766 SpacerSpacer
-
26234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
27250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
28234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
29207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
30270000882 Rubber MountRubber Mount
-
31250200018 Cone WasherCone Washer
-
32250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
33270000762 Shim 1.3 mmShim 1.3 mm
-
34270000799 RH StopperRH Stopper
-
35293050001 Flat WasherFlat Washer
-
36250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
37273000250 Air Silencer LowAir Silencer Low
-
38273000249 Air Silencer UpperAir Silencer Upper
-
39293250190 SealSeal
-
40269501718 ClipClip
-
41273000252 Intake HoseIntake Hose
-
42273000251 Connector HoseConnector Hose
-
43273000253 Intake TubeIntake Tube
-
44269501299 StrapStrap
-
45293720064 GrommetGrommet
-
46275500454 Check ValveCheck Valve
-
47219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
48293200123 Neoprene SealNeoprene Seal
-
49273000271 DeflectorDeflector
-
50270000735 Air Box SupportAir Box Support
-
51234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
52207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
53420942108 Panel Nut M6 X 1Panel Nut M6 X 1
-
54234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
55207362560 Hex. Screw M6 X 25, Scotch GripHex. Screw M6 X 25, Scotch Grip
-
56273000260 Air Box BracketAir Box Bracket
-
57273000261 StrapStrap
-
58207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
59270000807 Formed HoseFormed Hose
-
60293650051 Tridon Gear ClampTridon Gear Clamp
-
61293650051 Tridon Gear ClampTridon Gear Clamp
-
62293650179 Tridon ClampTridon Clamp
-
63276000273 IntercoolerIntercooler
-
64273000282 Inlet Hose CoolerInlet Hose Cooler
-
65293650179 Tridon ClampTridon Clamp
-
66293650179 Tridon ClampTridon Clamp
-
67273000300 Outlet Hose CoolerOutlet Hose Cooler
-
68293650179 Tridon ClampTridon Clamp
-
69293650179 Tridon ClampTridon Clamp
-
70275500743 Strap Clip 90°Strap Clip 90°
-
71293850093 StrapStrap
-
72293830146 Rubber PadRubber Pad
-
73293730016 Dart, BlackDart, Black
-
74243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
75234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
78293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
300276000397 Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
-
301273000361 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
302273000362 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
303293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7Tridon Gear Clamp. Ref Service Bulletin 2015-7
