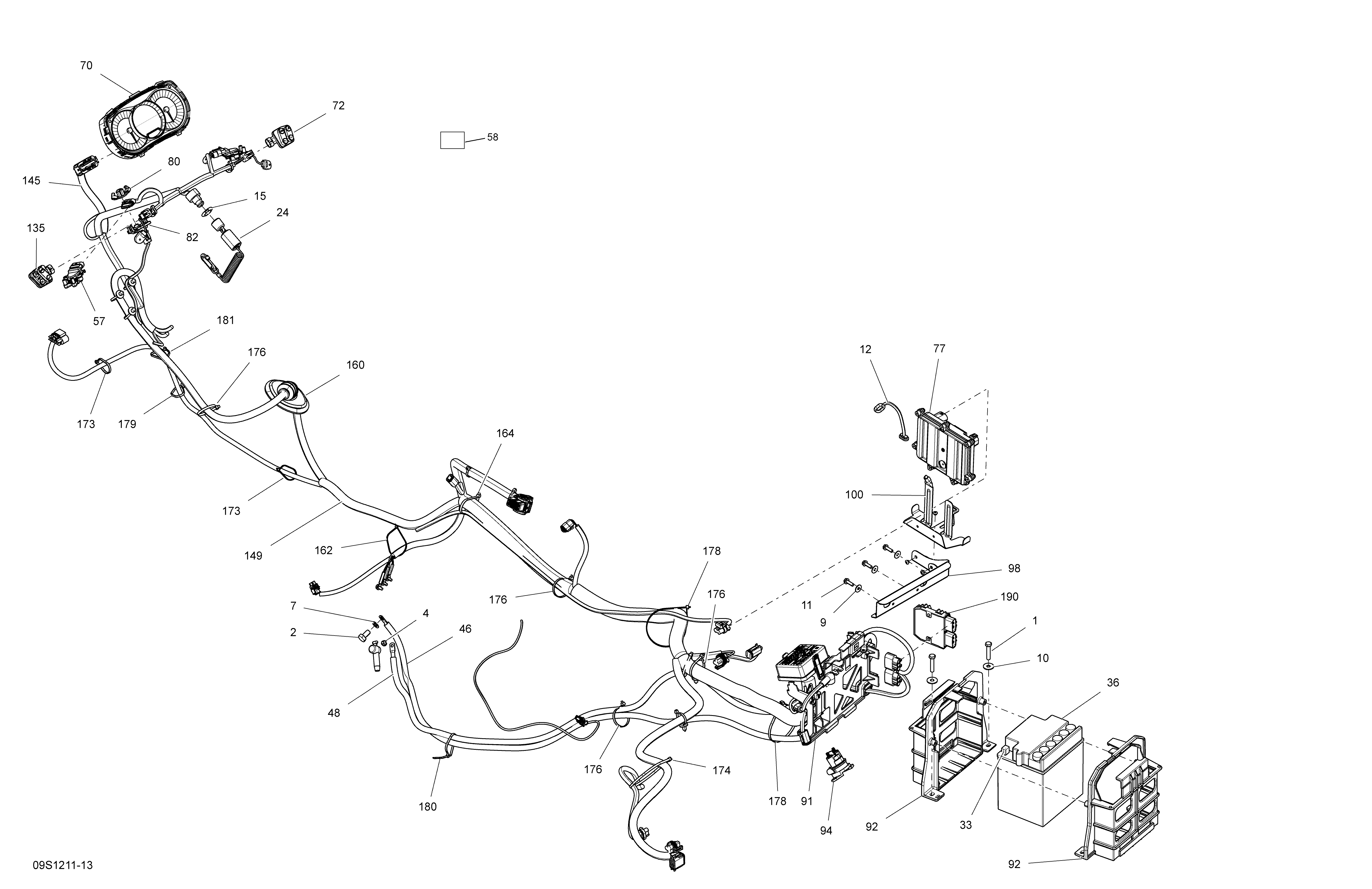

10- Electrical System для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
9234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
12269501299 StrapStrap
-
15278000508 Safety Switch NutSafety Switch Nut
-
24278002483 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
33295500849 Battery Fastener KitBattery Fastener Kit
-
36278001882 Battery, 30 AmperesBattery, 30 Amperes
-
46278002278 Ground CableGround Cable
-
48278002279 Starter CableStarter Cable
-
57278002284 LH Throttle SensorLH Throttle Sensor
-
58278002283 RH Throttle SensorRH Throttle Sensor
-
70278002714 Cluster LCDCluster LCD
-
72278002602 SwitchSwitch
-
77278002491 Electronic Suspension ModuleElectronic Suspension Module
-
80278002323 O.T.A.S. ActuatorO.T.A.S. Actuator
-
82278002324 O.T.A.S. SensorO.T.A.S. Sensor
-
91278002338 Electrical Component SupportElectrical Component Support
-
92278002339 Battery SupportBattery Support
-
94278002347 Starter RelayStarter Relay
-
98278002402 SupportSupport
-
100278002403 Suspension Module SupportSuspension Module Support
-
135278002767 SwitchSwitch
-
145278002788 Steering Handle HarnessSteering Handle Harness
-
149278002811 Main Harness (IS)Main Harness (IS)
-
160293720083 GrommetGrommet
-
162293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
164293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
173293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
174293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
176414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
178293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
179293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
180293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
181414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
190710001103 Voltage RegulatorVoltage Regulator
