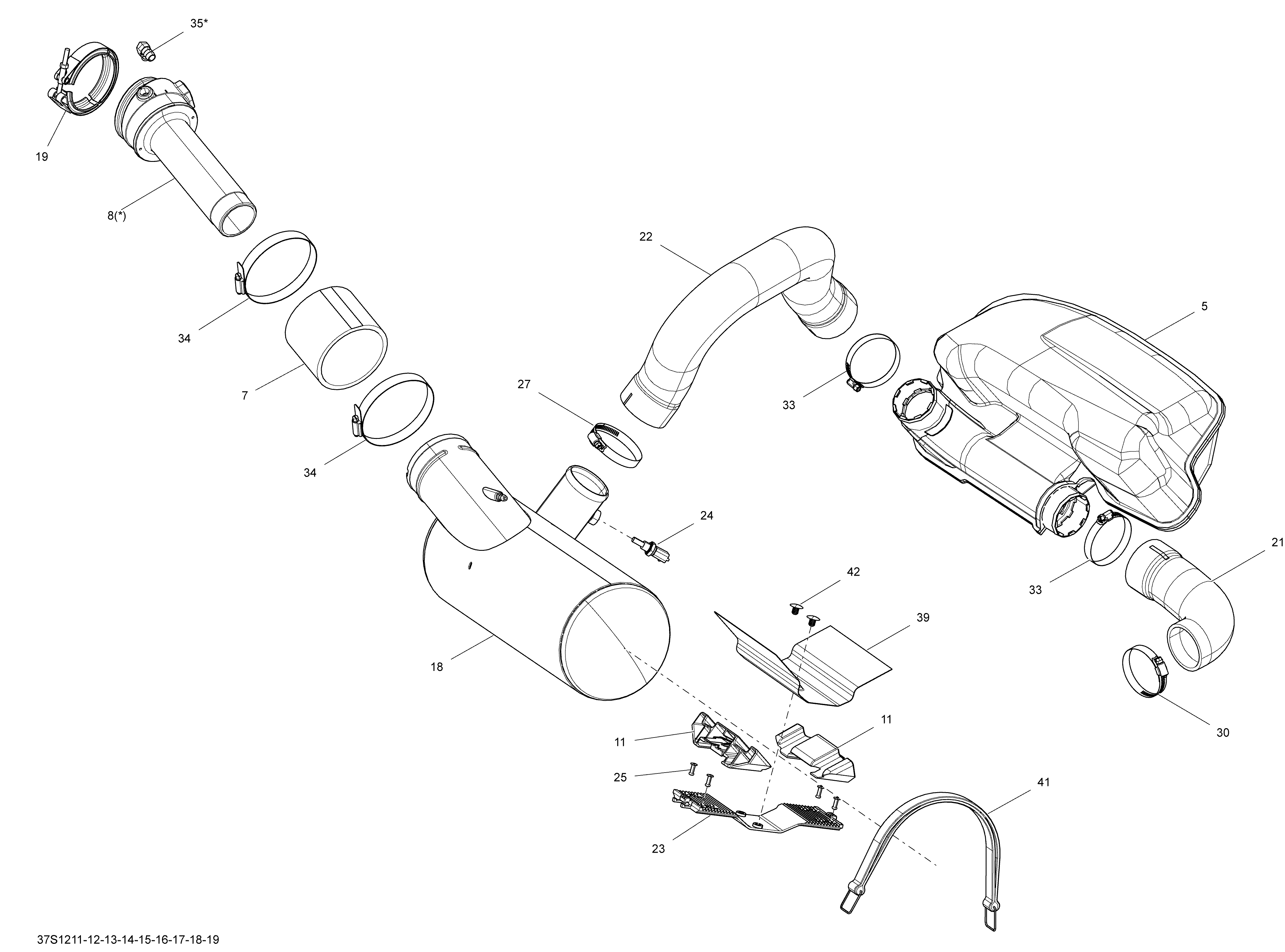

01- Exhaust System для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
5274001366 ResonatorResonator
-
7274001348 HoseHose
-
8274001489 Head Pipe Ass'yHead Pipe Ass'y
-
11274001358 StopperStopper
-
18274001384 MufflerMuffler
-
19274001417 Exhaust ClampExhaust Clamp
-
21274001423 Exhaust Hose, RearExhaust Hose, Rear
-
22274001458 Front Formed Exhaust HoseFront Formed Exhaust Hose
-
23274001479 Exhaust Muffler SupportExhaust Muffler Support
-
24278001016 Temperature SensorTemperature Sensor
-
25293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293650179 Tridon ClampTridon Clamp
-
30293650179 Tridon ClampTridon Clamp
-
33293650179 Tridon ClampTridon Clamp
-
34293650202 Gear ClampGear Clamp
-
35293700023 Elbow Fitting 90°Elbow Fitting 90°
-
39293830150 Rubber PadRubber Pad
-
41293850093 Fuel Tank StrapFuel Tank Strap
-
42414939500 DartDart
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankshaft, Pistons And Balance Shaft
- 01- Cylinder Head
- 01- Engine And Air Intake Silencer
- 01- Engine Block
- • 01- Exhaust System
- 02- Air Intake Manifold And Throttle Body 1_Sea-Doo
- 02- Fuel System
- 02- Oil Separator
- 02- Supercharger
- 03- PTO Cover And Magneto
- 05- Propulsion
- 05- Pump
- 05- Reverse
- 07- Steering
- 09- Body
- 09- Decals
- 09- Decals Caution
- 09- Front Cover
- 09- Hull
- 09- Seat
- 09- Seat Suspension 1
- 09- Seat Suspension 2
- 09- Seat Suspension 4
- 09- Storage Compartments
- 09- Ventilation
- 10- Electrical Harness Main
- 10- Electrical Harness Steering
- 10- Electrical System
- 10- Engine Harness
