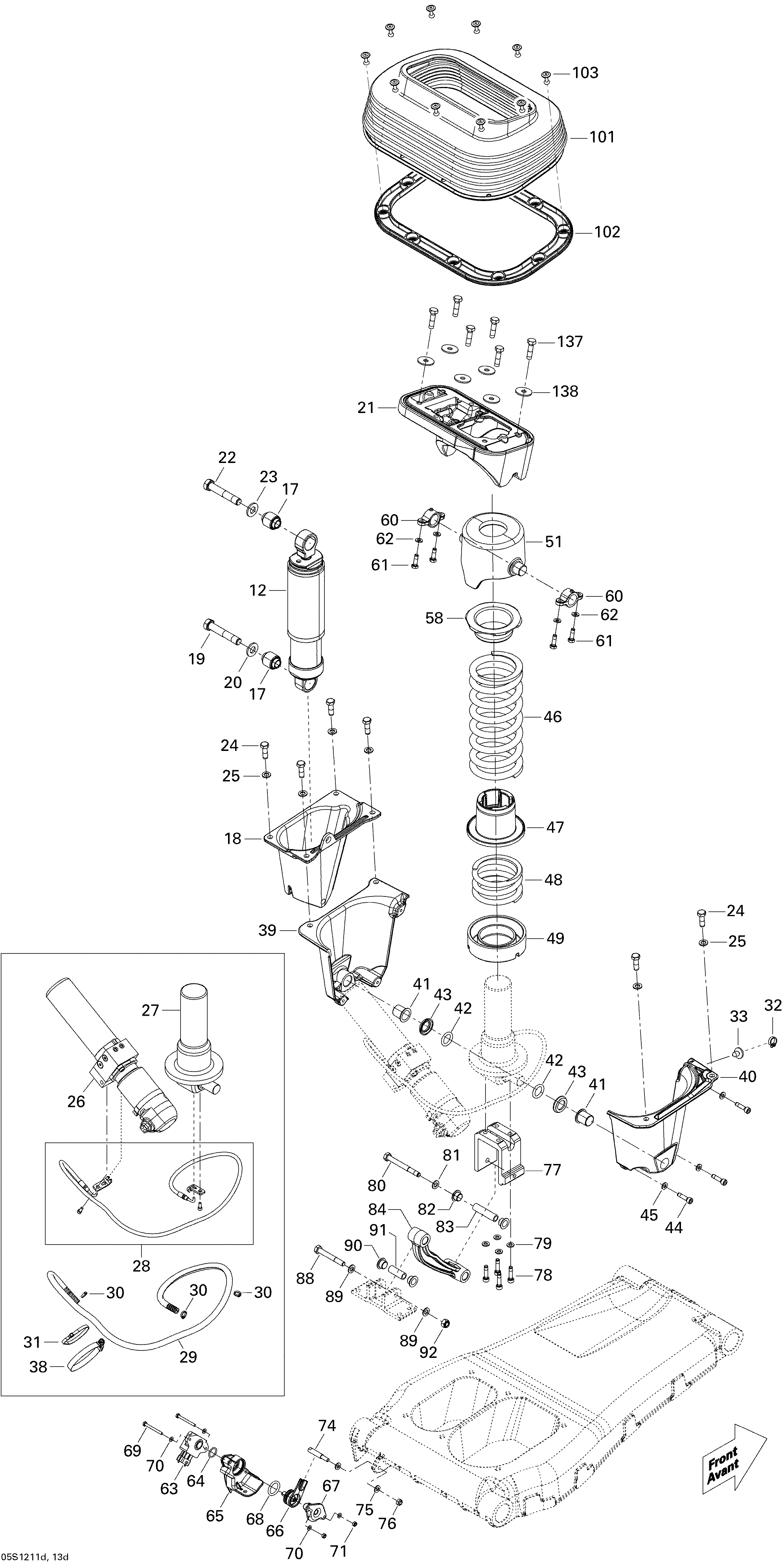

09- Seat Suspension 4 для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
12279000004 Shock Absorber. RXT ISShock Absorber. RXT IS
-
17279000051 Bushing. RXT ISBushing. RXT IS
-
18279000055 Shock Lower Holder. RXT ISShock Lower Holder. RXT IS
-
19207227060 Hex. Screw M12 X 70, Scotch Grip. RXT ISHex. Screw M12 X 70, Scotch Grip. RXT IS
-
20250200053 Flat Washer M12. RXT ISFlat Washer M12. RXT IS
-
21279000057 Shock Upper Holder. RXT ISShock Upper Holder. RXT IS
-
22207227060 Hex. Screw M12 X 70, Scotch Grip. RXT ISHex. Screw M12 X 70, Scotch Grip. RXT IS
-
23250200053 Flat Washer M12. RXT ISFlat Washer M12. RXT IS
-
24207383060 Hex. Screw M8 X 30, Scotch Grip. RXT ISHex. Screw M8 X 30, Scotch Grip. RXT IS
-
25234080600 Flat Washer 8 mm. RXT ISFlat Washer 8 mm. RXT IS
-
26279000207 Pump. RXT ISPump. RXT IS
-
27279000117 Actuator. RXT ISActuator. RXT IS
-
28279000162 Connector Hose. RXT ISConnector Hose. RXT IS
-
29515175442 Tubing 6 mm. RXT ISTubing 6 mm. RXT IS
-
30293750001 Tie-Rap 94 mm. RXT ISTie-Rap 94 mm. RXT IS
-
31293750008 Tie-Rap 350 mm. RXT ISTie-Rap 350 mm. RXT IS
-
32414115200 Tie-Rap 180 mm. RXT ISTie-Rap 180 mm. RXT IS
-
33293730040 Mount Dart. RXT ISMount Dart. RXT IS
-
33293730040 Mount Dart. RXT ISMount Dart. RXT IS
-
38293650079 Norma Clamp. RXT ISNorma Clamp. RXT IS
-
39279000070 LH Spring Holder. RXT ISLH Spring Holder. RXT IS
-
40279000074 RH Spring Holder. RXT ISRH Spring Holder. RXT IS
-
41279000103 Bushing. RXT ISBushing. RXT IS
-
42279000104 O-Ring. RXT ISO-Ring. RXT IS
-
43279000105 Bushing. RXT ISBushing. RXT IS
-
44205562560 Socket Head Screw M6 X 25, Scotch Grip. RXT ISSocket Head Screw M6 X 25, Scotch Grip. RXT IS
-
45234061600 Flat Washer M6, Stainless. RXT ISFlat Washer M6, Stainless. RXT IS
-
46279000005 Painted Spring. RXT ISPainted Spring. RXT IS
-
47279000118 Spring Spacer. RXT ISSpring Spacer. RXT IS
-
48279000119 Painted Spring. RXT ISPainted Spring. RXT IS
-
49279000133 Lower Spring Protector. RXT ISLower Spring Protector. RXT IS
-
51279000061 Upper Spring Holder. RXT ISUpper Spring Holder. RXT IS
-
58279000134 Upper Spring Protector. RXT ISUpper Spring Protector. RXT IS
-
60279000106 Clamp. RXT ISClamp. RXT IS
-
61207362060 Hex. Screw M6 X 20, Scotch Grip. RXT ISHex. Screw M6 X 20, Scotch Grip. RXT IS
-
62234041600 Flat Washer 4 mm, Stainless. RXT ISFlat Washer 4 mm, Stainless. RXT IS
-
63270000251 Position Sensor. RXT ISPosition Sensor. RXT IS
-
64270000544 O-Ring. RXT ISO-Ring. RXT IS
-
65279000098 Position Sensor Bracket. RXT ISPosition Sensor Bracket. RXT IS
-
66279000099 Sensor Lever. RXT ISSensor Lever. RXT IS
-
67279000107 Position Sensor Cover. RXT ISPosition Sensor Cover. RXT IS
-
68279000108 O-Ring. RXT ISO-Ring. RXT IS
-
69207144060 Hex. Screw M4 X 40. RXT ISHex. Screw M4 X 40. RXT IS
-
70234061600 Flat Washer M6, Stainless. RXT ISFlat Washer M6, Stainless. RXT IS
-
71232541200 Elastic Stop Nut M4. RXT ISElastic Stop Nut M4. RXT IS
-
74279000139 Threaded Rod. RXT ISThreaded Rod. RXT IS
-
75234061600 Flat Washer M6, Stainless. RXT ISFlat Washer M6, Stainless. RXT IS
-
76232561200 Elastic Stop Nut M6, Brass. RXT ISElastic Stop Nut M6, Brass. RXT IS
-
77279000154 Spring Alignment Adaptor. RXT ISSpring Alignment Adaptor. RXT IS
-
78205562560 Socket Head Screw M6 X 25, Scotch Grip. RXT ISSocket Head Screw M6 X 25, Scotch Grip. RXT IS
-
79234061600 Flat Washer M6, Stainless. RXT ISFlat Washer M6, Stainless. RXT IS
-
80207287560 Hex. Screw M8 x 75 (Scotch Grip). RXT ISHex. Screw M8 x 75 (Scotch Grip). RXT IS
-
81234080600 Flat Washer 8 mm. RXT ISFlat Washer 8 mm. RXT IS
-
82279000137 Bushing. RXT ISBushing. RXT IS
-
83279000138 Spacer. RXT ISSpacer. RXT IS
-
84279000157 Spring Alignment Arm. RXT ISSpring Alignment Arm. RXT IS
-
88207086060 Hex. Screw M8 x 60. RXT ISHex. Screw M8 x 60. RXT IS
-
89234080600 Flat Washer 8 mm. RXT ISFlat Washer 8 mm. RXT IS
-
90279000137 Bushing. RXT ISBushing. RXT IS
-
91279000153 Spacer. RXT ISSpacer. RXT IS
-
92232581200 Hex. Elastic Nut M8, Brass. RXT ISHex. Elastic Nut M8, Brass. RXT IS
-
101279000008 Central BellowsCentral Bellows
-
102279000010 Retaining PlateRetaining Plate
-
103293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
137207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
138250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
