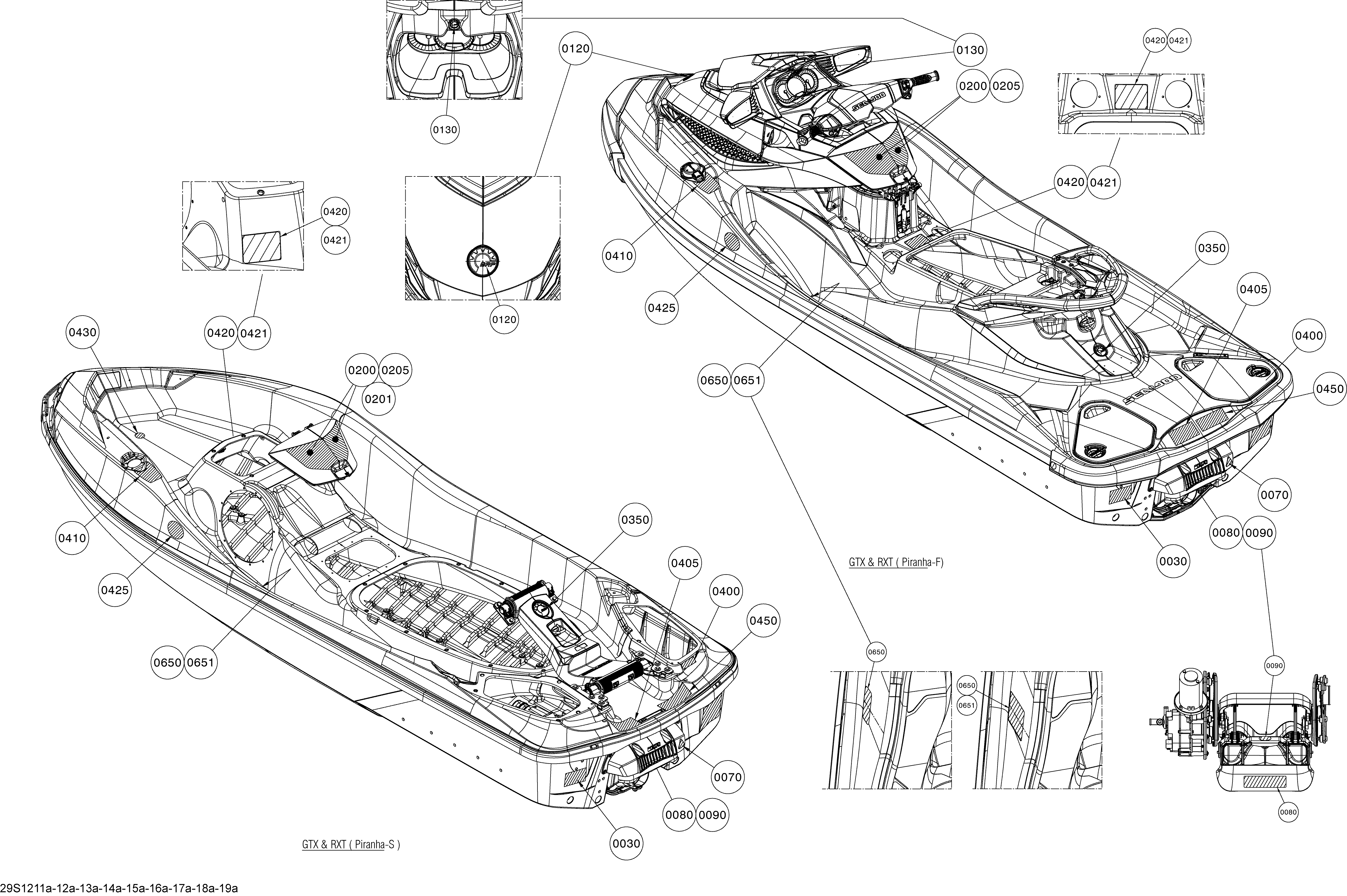

09- Decals Caution для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
30219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
70219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
80219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
90219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
120219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
130219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
200219903197 LH Warning Decal, PrincipalLH Warning Decal, Principal
-
205219903198 RH Warning Decal, PrincipalRH Warning Decal, Principal
-
350219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
400219903082 Warning Decal, BatteryWarning Decal, Battery
-
405219903510 Decal, ExemptionDecal, Exemption
-
410219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
425219902679 Decal, Emission ControlDecal, Emission Control
-
430219903079 Decal, No ObjectsDecal, No Objects
-
450219903088 Warning Decal, Boarding StepWarning Decal, Boarding Step
-
650219903554 Comformity Decal, CanadianComformity Decal, Canadian
-
650219904015 Comformity Decal, CE. EuropeComformity Decal, CE. Europe
