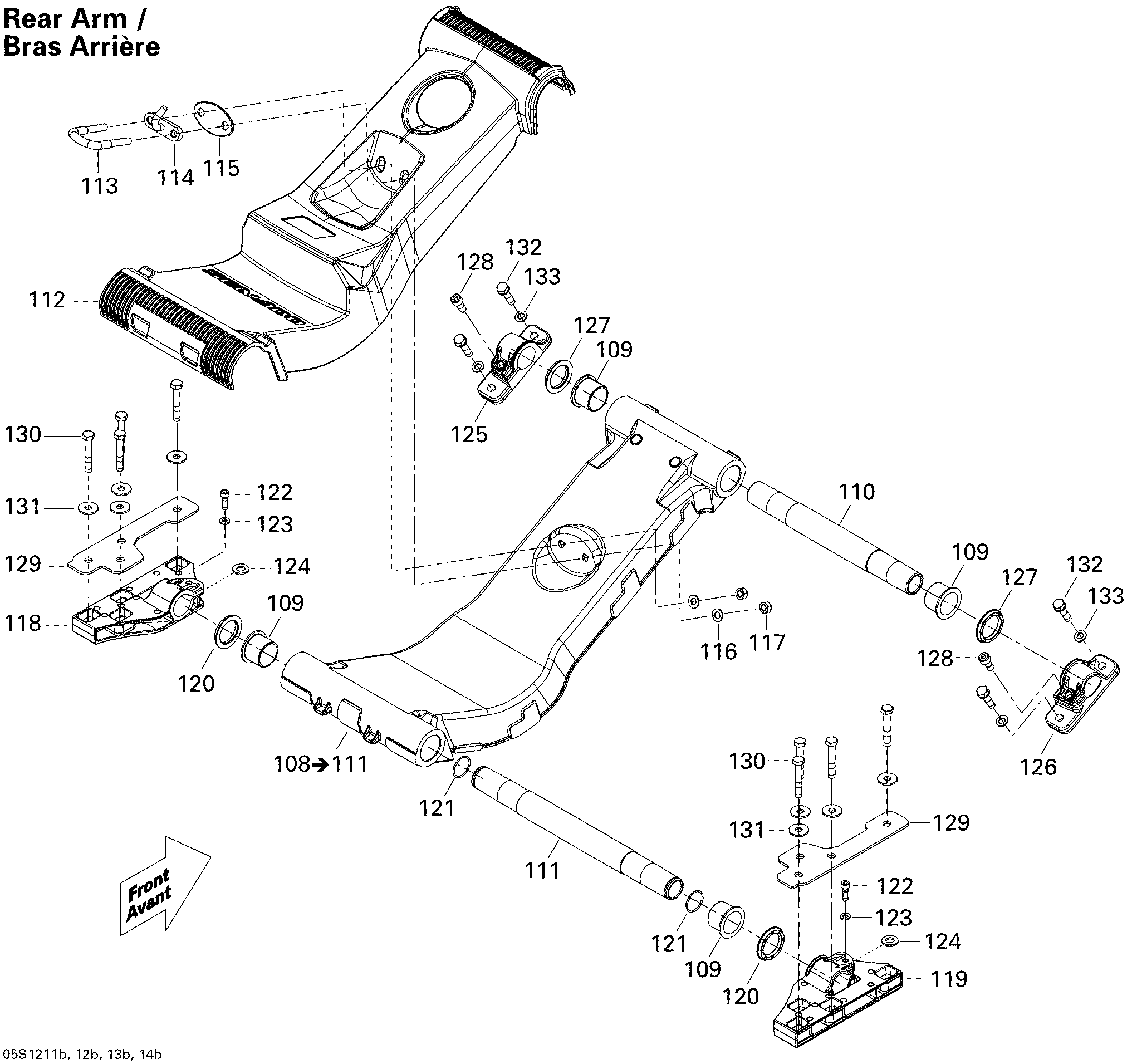

09- Seat Suspension 2 для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
108279000001 Rear Arm Ass'yRear Arm Ass'y
-
109279000019 BushingBushing
-
110279000031 Pivot TubePivot Tube
-
111279000033 Pivot TubePivot Tube
-
112279000080 Rear Arm MouldingRear Arm Moulding
-
113292000933 U-ClampU-Clamp
-
114291002351 HookHook
-
115291001386 Finition Plate, BlackFinition Plate, Black
-
116234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
117232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
118279000083 LH Rear BaseLH Rear Base
-
119279000087 RH Rear BaseRH Rear Base
-
120279000047 Rubber BumperRubber Bumper
-
121279000100 Retaining RingRetaining Ring
-
122205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
123234001600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
124234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
125279000089 LH ClampLH Clamp
-
126279000092 RH ClampRH Clamp
-
127279000047 Rubber BumperRubber Bumper
-
128205582060 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
129279000114 Retaining PlateRetaining Plate
-
130207285060 Hex. Screw M8 X 50, Scotch GripHex. Screw M8 X 50, Scotch Grip
-
131234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
132207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
133234080600 Flat Washer 8 mmFlat Washer 8 mm
