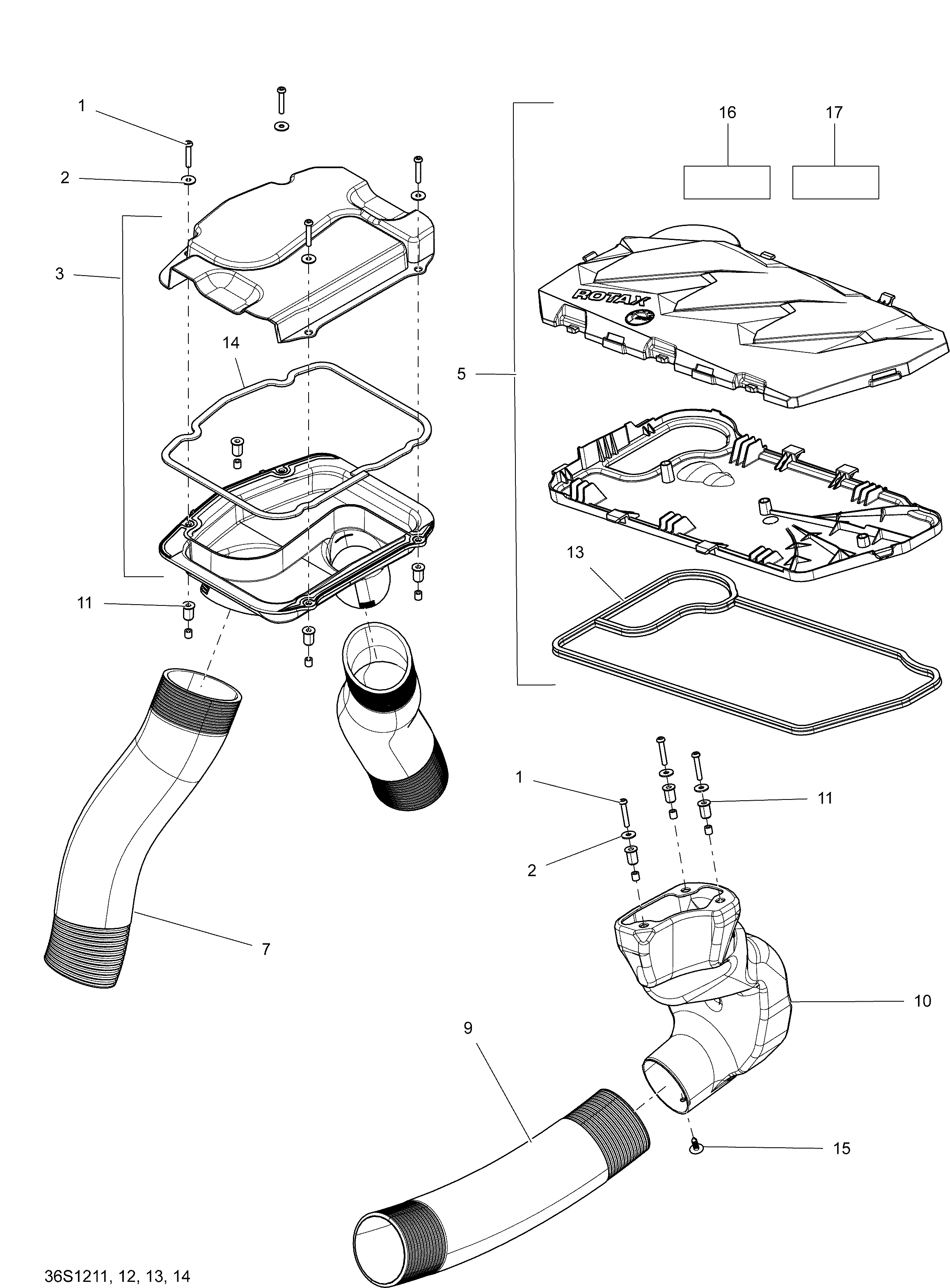

09- Ventilation для BRP RXT 260 (IS) - 2012
-
№АртикулНазвание
-
1205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
2234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3237000036 Front Ventilation Box Ass'yFront Ventilation Box Ass'y
-
5237000028 Rear Ventilation Box Ass'yRear Ventilation Box Ass'y
-
7237000030 Vent Hose 3.5''Vent Hose 3.5''
-
9237000031 Vent Hose 3.5''Vent Hose 3.5''
-
10237000034 Rear Vent DuctRear Vent Duct
-
11250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
13293250213 GasketGasket
-
14293250214 GasketGasket
-
15293730011 Dart, BlackDart, Black
-
16219903090 Warning Decal, Gasoline VaporWarning Decal, Gasoline Vapor
-
17219903084 Caution Decal, Engine OilCaution Decal, Engine Oil
