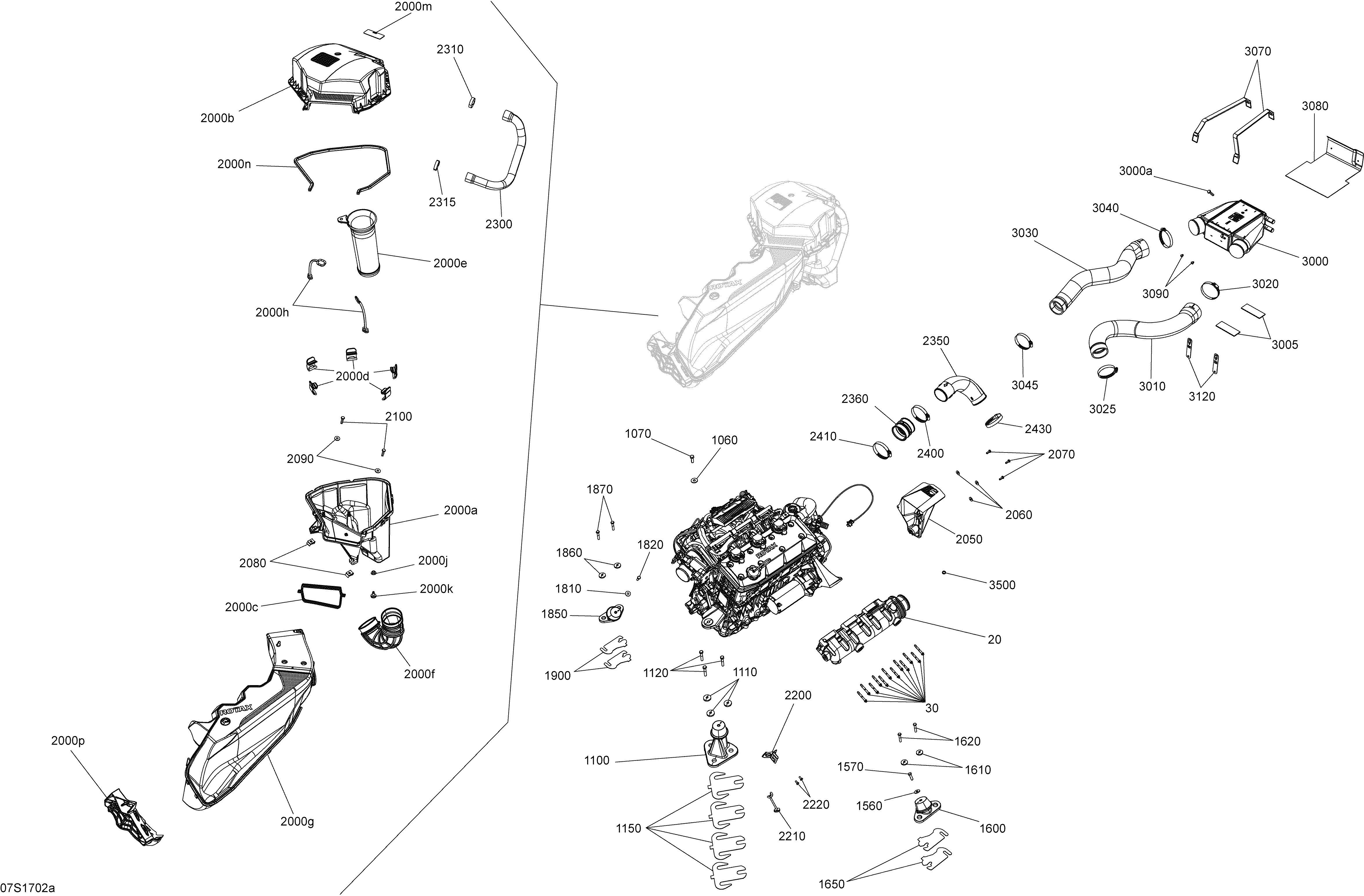

01- Engine - Model with Suspension для BRP GTX - 2017
-
№АртикулНазвание
-
20274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
30420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
1060234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1070207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1100270000886 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000770 Shim 1.3 mmShim 1.3 mm
-
1560234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1570207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1600270000882 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1810234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1820207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1850270000882 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000250 Air Silencer LowAir Silencer Low
-
2000b273000249 Air Silencer UpperAir Silencer Upper
-
2000c293250190 SealSeal
-
2000d269501718 ClipClip
-
2000e273000359 Intake HoseIntake Hose
-
2000f273000257 Connector Hose. Engine 1503 NA 4-TECConnector Hose. Engine 1503 NA 4-TEC
-
2000f273000348 Hose. Engine 1503 HO 4-TECHose. Engine 1503 HO 4-TEC
-
2000g273000253 Intake TubeIntake Tube
-
2000h269501299 StrapStrap
-
2000j293720064 GrommetGrommet
-
2000k275500454 Check ValveCheck Valve
-
2000m219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000n293200123 Neoprene SealNeoprene Seal
-
2000p273000271 DeflectorDeflector
-
2050270000735 Air Box Support. Engine 1503 HO 4-TECAir Box Support. Engine 1503 HO 4-TEC
-
2050270000791 Air Box Support. Engine 1503 NA 4-TECAir Box Support. Engine 1503 NA 4-TEC
-
2060234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2070207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
2080420942108 Panel Nut M6 X 1Panel Nut M6 X 1
-
2090234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2100207362560 Hex. Screw M6 X 25, Scotch GripHex. Screw M6 X 25, Scotch Grip
-
2200273000260 Air Box BracketAir Box Bracket
-
2210273000344 StrapStrap
-
2220207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
2300270000948 Formed HoseFormed Hose
-
2310293650051 Tridon Gear ClampTridon Gear Clamp
-
2315293650051 Tridon Gear ClampTridon Gear Clamp
-
2350273000327 Hose Intake. Engine 1503 NA 4-TECHose Intake. Engine 1503 NA 4-TEC
-
2360273000277 Intake Fitting. Engine 1503 NA 4-TECIntake Fitting. Engine 1503 NA 4-TEC
-
2400293650179 Tridon Clamp. Engine 1503 NA 4-TECTridon Clamp. Engine 1503 NA 4-TEC
-
2410293650179 Tridon Clamp. Engine 1503 NA 4-TECTridon Clamp. Engine 1503 NA 4-TEC
-
2430293650179 Tridon ClampTridon Clamp
-
3000>3000a276000397 Intercooler. Engine 1503 HO 4-TEC. Includes 3000 to 3000aIntercooler. Engine 1503 HO 4-TEC. Includes 3000 to 3000a
-
3000a271001942 Anode Zinc. Engine 1503 HO 4-TECAnode Zinc. Engine 1503 HO 4-TEC
-
3005293830180 Pad-Rubber. Engine 1503 HO 4-TECPad-Rubber. Engine 1503 HO 4-TEC
-
3010273000361 Formed Hose. Engine 1503 HO 4-TECFormed Hose. Engine 1503 HO 4-TEC
-
3020293650244 Tridon Gear Clamp. Engine 1503 HO 4-TECTridon Gear Clamp. Engine 1503 HO 4-TEC
-
3025293650179 Tridon Clamp. Engine 1503 HO 4-TECTridon Clamp. Engine 1503 HO 4-TEC
-
3030273000362 Formed Hose. Engine 1503 HO 4-TECFormed Hose. Engine 1503 HO 4-TEC
-
3040293650244 Tridon Gear Clamp. Engine 1503 HO 4-TECTridon Gear Clamp. Engine 1503 HO 4-TEC
-
3045293650179 Tridon Clamp. Engine 1503 HO 4-TECTridon Clamp. Engine 1503 HO 4-TEC
-
3070293850093 Strap. Engine 1503 HO 4-TECStrap. Engine 1503 HO 4-TEC
-
3080293830146 Rubber Pad. Engine 1503 HO 4-TECRubber Pad. Engine 1503 HO 4-TEC
-
3090293730016 Dart, Black. Engine 1503 HO 4-TECDart, Black. Engine 1503 HO 4-TEC
-
3120270000946 Holding StrapHolding Strap
-
3500293750002 Tie-Rap 142 mmTie-Rap 142 mm
