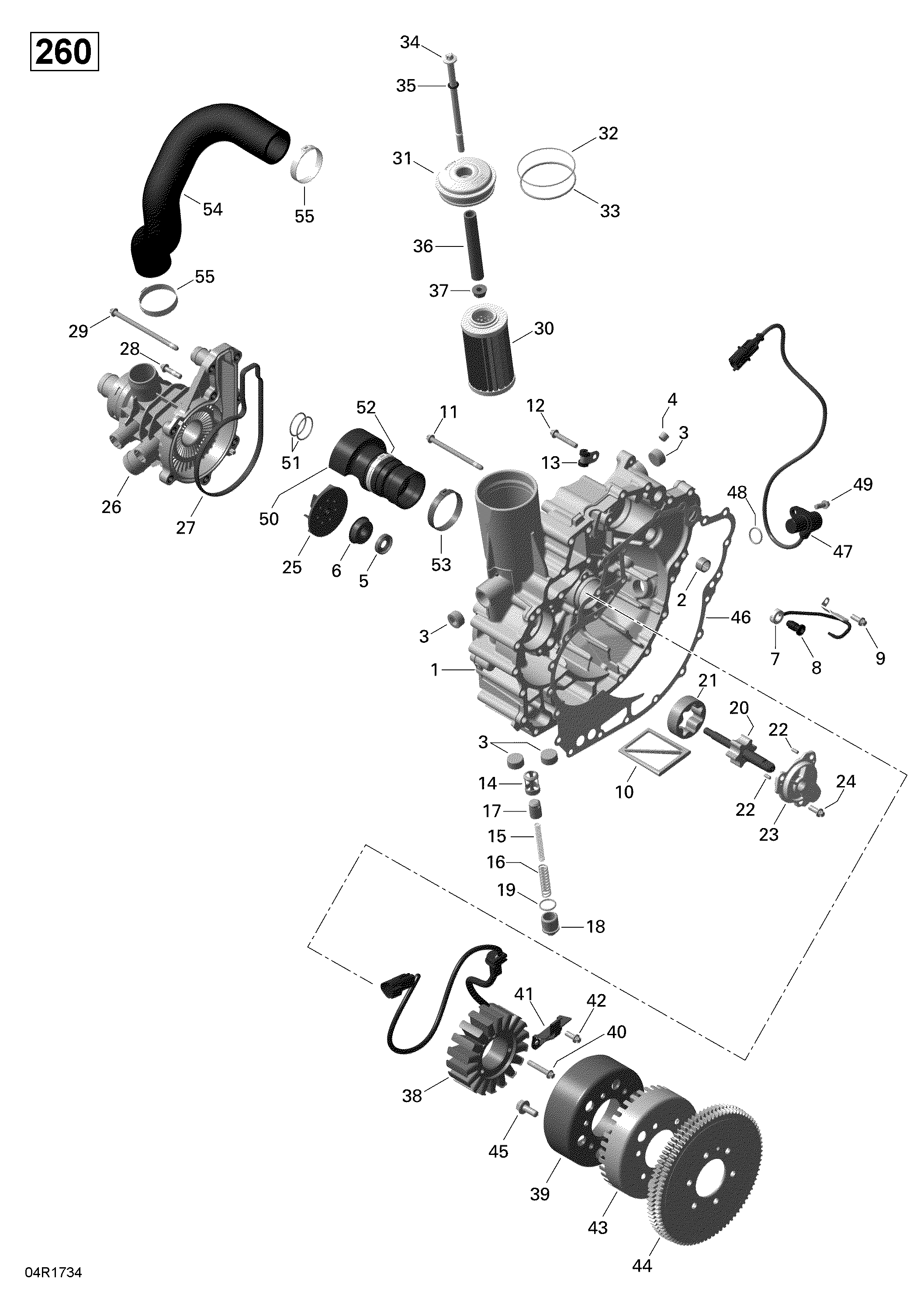

03- PTO Cover and Magneto - 260 для BRP GTX - 2017
-
№АртикулНазвание
-
1420910521 Timing/Drive Cover Ass'y. Includes 1 to 6Timing/Drive Cover Ass'y. Includes 1 to 6
-
2420232482 Needle BushingNeedle Bushing
-
3420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
4420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
5420650310 Oil SealOil Seal
-
6420650370 Rotary SealRotary Seal
-
7420856877 Gicleur d'Huile Ass'y. Includes 7 to 8Gicleur d'Huile Ass'y. Includes 7 to 8
-
8420840181 Banjo ScrewBanjo Screw
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
10420956950 Oil SieveOil Sieve
-
11420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
12420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
13420853414 ClampClamp
-
14420256606 Valve Seat SleeveValve Seat Sleeve
-
15420939400 Compression SpringCompression Spring
-
16420939211 Compression SpringCompression Spring
-
17420256630 Piston ValvePiston Valve
-
18420641052 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
19420230890 O-RingO-Ring
-
20420837472 Pump Shaft Ass'yPump Shaft Ass'y
-
21420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
22420929070 Needle PinNeedle Pin
-
23420811590 Oil Pump CoverOil Pump Cover
-
24420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
25420922801 ImpellerImpeller
-
26420922686 Water Pump Housing Ass'y. Includes 26 to 27Water Pump Housing Ass'y. Includes 26 to 27
-
27420950840 GasketGasket
-
28420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
29420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
30420956741 Oil FilterOil Filter
-
31420612080 Oil Filter CoverOil Filter Cover
-
32420850500 O-RingO-Ring
-
33420230920 O-RingO-Ring
-
34420641103 Hex. Screw M8 X 140.5Hex. Screw M8 X 140.5
-
35420950860 O-RingO-Ring
-
36420857229 SpacerSpacer
-
37420842610 Hex. Nut M8Hex. Nut M8
-
38420889721 Stator PlateStator Plate
-
39420296900 Magneto FlywheelMagneto Flywheel
-
40420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
41420926300 Retaining PlateRetaining Plate
-
42420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
43420664082 Trigger WheelTrigger Wheel
-
44420834874 Starter Double GearStarter Double Gear
-
45295501162 Screw KitScrew Kit
-
46420931130 GasketGasket
-
47420966570 Crankshaft Position Sensor Ass'y. Includes 47 to 48Crankshaft Position Sensor Ass'y. Includes 47 to 48
-
48420431580 O-RingO-Ring
-
49420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
50420832648 Ball Bearing With Bellows Ass'y. Includes 50 to 52Ball Bearing With Bellows Ass'y. Includes 50 to 52
-
51420631610 O-RingO-Ring
-
52420853023 Gear ClampGear Clamp
-
53420851653 Gear ClampGear Clamp
-
54420922825 Formed HoseFormed Hose
-
55420851683 Gear ClampGear Clamp
