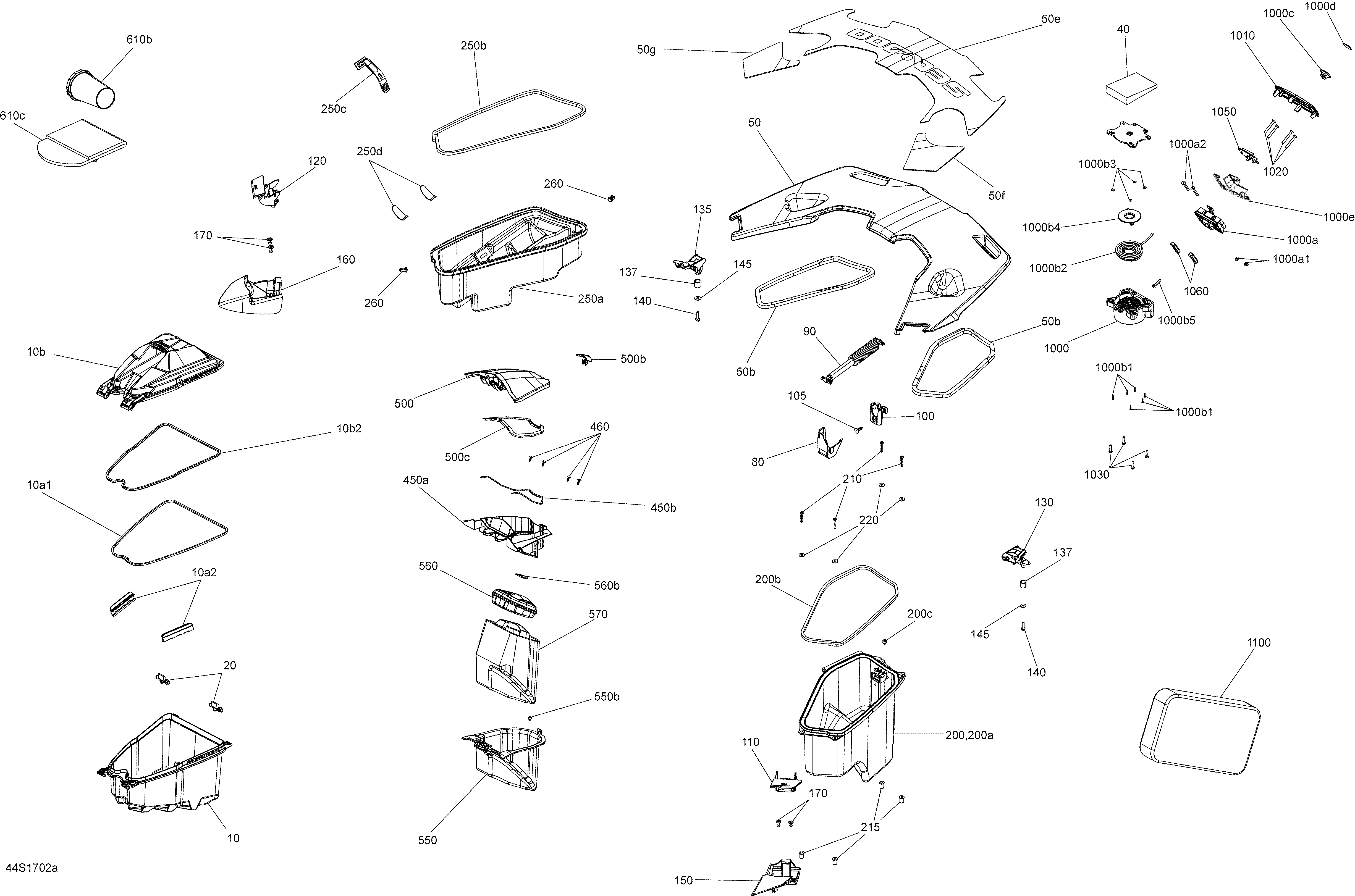

09- Storage Compartments - Model with Suspension для BRP GTX - 2017
-
№АртикулНазвание
-
10a>10a2264000118 Storage Bin Ass'y. Includes 10a to 10a2Storage Bin Ass'y. Includes 10a to 10a2
-
10a1293250161 GasketGasket
-
10a2269501609 ClipClip
-
10b>10b2264000120 Storage Bin Cover Ass'y. Includes 10b to 10b2Storage Bin Cover Ass'y. Includes 10b to 10b2
-
10b2293250210 Neoprene SealNeoprene Seal
-
20264000024 LatchLatch
-
40264000025 Platform Foam. Package LTDPlatform Foam. Package LTD
-
50>50g264000034 Rear Platform Ass'y. Includes 50 to 50gRear Platform Ass'y. Includes 50 to 50g
-
50b293250186 GasketGasket
-
50e291002585 Rear Platform CarpetRear Platform Carpet
-
50f264000040 LH Platform CarpetLH Platform Carpet
-
50g264000041 RH Platform CarpetRH Platform Carpet
-
80264000092 StiffenerStiffener
-
90264000099 Shock Ass'yShock Ass'y
-
100264000093 StiffenerStiffener
-
105293730006 Black DartBlack Dart
-
110264000020 LH LatchLH Latch
-
120264000021 RH LatchRH Latch
-
130264000003 LH Pivot SupportLH Pivot Support
-
135264000032 RH Pivot SupportRH Pivot Support
-
137264000042 SpacerSpacer
-
140243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
145234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
150264000055 LH Latch Base, BlackLH Latch Base, Black
-
160264000056 RH Latch Base, BlackRH Latch Base, Black
-
170293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
200>200c264000097 LH Tray. Includes 200 to 200cLH Tray. Includes 200 to 200c
-
200a264000097 LH TrayLH Tray
-
200b293250218 GasketGasket
-
200c293830005 Rubber BumperRubber Bumper
-
210205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
215250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
220234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
250a264000002 RH Rear TrayRH Rear Tray
-
250B293250218 GasketGasket
-
250c269500408 StrapStrap
-
250d264000043 Tray PadTray Pad
-
260293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
450a264000112 Glove Box Ext.Glove Box Ext.
-
450b293250376 SealSeal
-
460293730011 Black DartBlack Dart
-
500>500c264000111 Glove Door Ass'y. Includes 500 to 500cGlove Door Ass'y. Includes 500 to 500c
-
500b264000091 Latch, BlackLatch, Black
-
500c293250367 GasketGasket
-
550>550b264000031 Glove Box Ass'y. Includes 550 to 550bGlove Box Ass'y. Includes 550 to 550b
-
550b293830005 Rubber BumperRubber Bumper
-
560>560b291002814 Removable Case Ass'y. Package LTD. Includes 560 to 560bRemovable Case Ass'y. Package LTD. Includes 560 to 560b
-
560b291002793 Sea-Doo Decal. Package LTDSea-Doo Decal. Package LTD
-
570291002761 Protection Liner. Package LTDProtection Liner. Package LTD
-
610b295100330 Safety Kit. Package LTDSafety Kit. Package LTD
-
610c269001936 Bag. Package LTDBag. Package LTD
-
1000>1000e291004019 Retractable Rope Ass'y. Package LTD. Includes 1000 to 1000eRetractable Rope Ass'y. Package LTD. Includes 1000 to 1000e
-
1000a>1000a2291003023 Jam Cleat System Ass'y. Package LTD. Includes 1000a to 1000a2Jam Cleat System Ass'y. Package LTD. Includes 1000a to 1000a2
-
1000a1232561200 Elastic Stop Nut M6, Brass. Package LTDElastic Stop Nut M6, Brass. Package LTD
-
1000a2205364060 Socket Head Screw M6 X 40. Package LTDSocket Head Screw M6 X 40. Package LTD
-
1000b1241731260 Oval Philipp Screw KA30 x 12. Package LTDOval Philipp Screw KA30 x 12. Package LTD
-
1000b2291002733 Rope 3/16''. Package LTDRope 3/16''. Package LTD
-
1000b3234032600 Flat Washer M3, Stainless. Package LTDFlat Washer M3, Stainless. Package LTD
-
1000b4291002762 Inside Cover. Package LTDInside Cover. Package LTD
-
1000b5204100049 Phillips Tapping Screw #8 X 1''. Package LTDPhillips Tapping Screw #8 X 1''. Package LTD
-
1000c291002726 Button. Package LTDButton. Package LTD
-
1000d291002754 Button Cap. Package LTDButton Cap. Package LTD
-
1000e291002729 Rope Guide. Package LTDRope Guide. Package LTD
-
1010264000033 Rear Rewind Cap. Model GTX 155Rear Rewind Cap. Model GTX 155
-
1010291002725 Rear Rewind Frame. Package LTDRear Rewind Frame. Package LTD
-
1020205364560 Socket Screw Head M6 X 45. Package LTDSocket Screw Head M6 X 45. Package LTD
-
1030211000023 Hex. Screw 10-14 X 7/8''. Package LTDHex. Screw 10-14 X 7/8''. Package LTD
-
1050291002727 Under Cam. Package LTDUnder Cam. Package LTD
-
1060291002755 Double Cage Nut Ass'y. Package LTDDouble Cage Nut Ass'y. Package LTD
-
1100295100718 Cover. Package LTDCover. Package LTD
