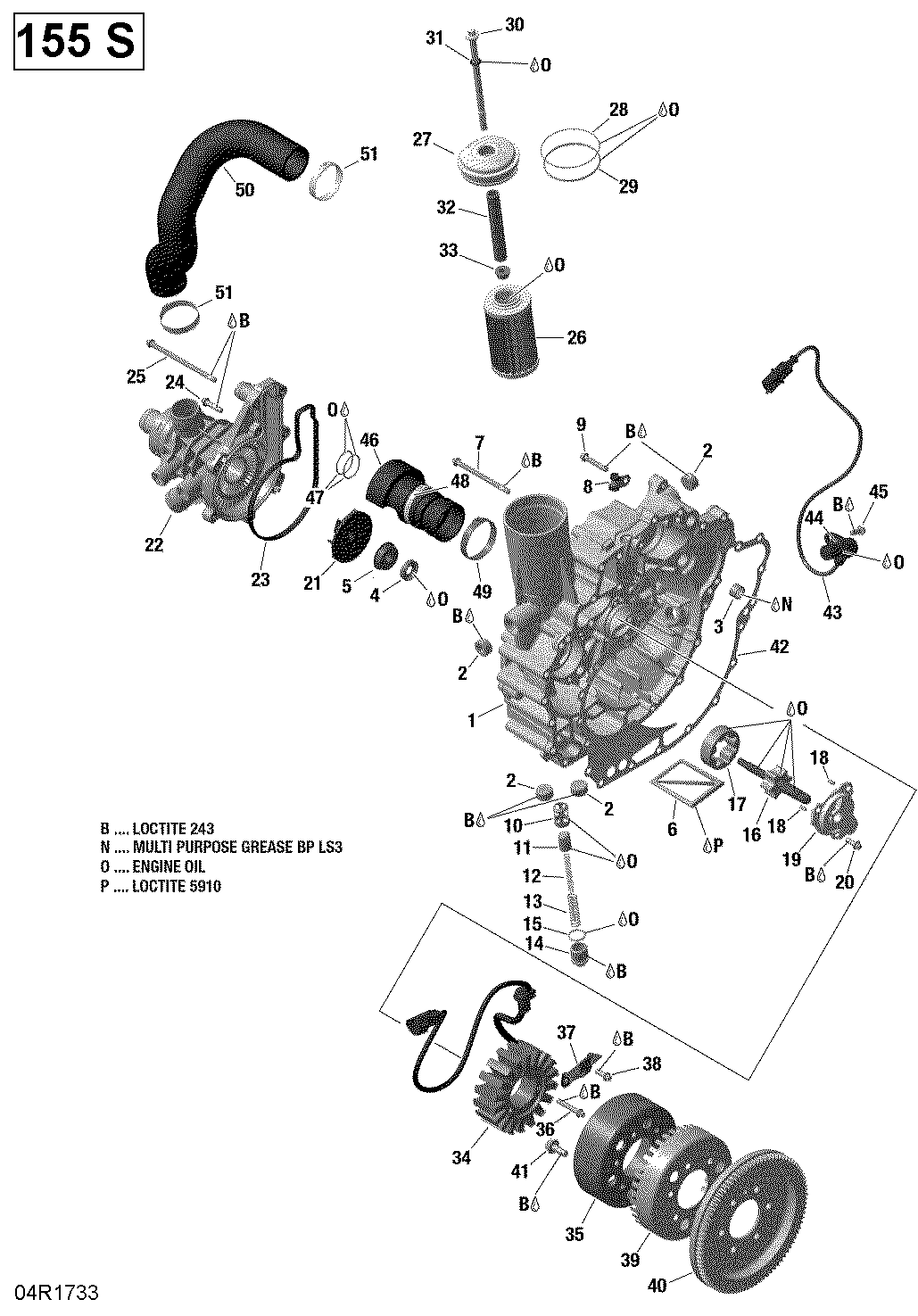

03- PTO Cover And Magneto - 155 Model With Suspension для BRP GTX - 2017
-
№АртикулНазвание
-
1>4420910527 Timing/Drive Cover Ass'yTiming/Drive Cover Ass'y
-
2420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
3420232482 Needle BushingNeedle Bushing
-
4420650310 Oil SealOil Seal
-
5420650370 Rotary SealRotary Seal
-
6420956950 Oil SieveOil Sieve
-
7420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
8420853414 ClampClamp
-
9420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
10420256606 Valve Seat SleeveValve Seat Sleeve
-
11420256630 Piston ValvePiston Valve
-
12420939400 Compression SpringCompression Spring
-
13420939211 Compression SpringCompression Spring
-
14420641052 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
15420230890 O-RingO-Ring
-
16420837472 Pump Shaft Ass'yPump Shaft Ass'y
-
17420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
18420929070 Needle PinNeedle Pin
-
19420811590 Oil Pump CoverOil Pump Cover
-
20420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
21420922801 ImpellerImpeller
-
22>23420922686 Water Pump Housing Ass'yWater Pump Housing Ass'y
-
23420950840 GasketGasket
-
24420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
25420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
26420956741 Oil FilterOil Filter
-
27420612080 Oil Filter CoverOil Filter Cover
-
28420230920 O-RingO-Ring
-
29420850500 O-RingO-Ring
-
30420641103 Hex. Screw M8 X 140.5Hex. Screw M8 X 140.5
-
31420950860 O-RingO-Ring
-
32420857229 SpacerSpacer
-
33420842610 Hex. Nut M8Hex. Nut M8
-
34420889721 Stator PlateStator Plate
-
35420296900 Magneto FlywheelMagneto Flywheel
-
36420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
37420926300 Retaining PlateRetaining Plate
-
38420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
39420664082 Trigger WheelTrigger Wheel
-
40420835163 Starter Gear, 86 TeethStarter Gear, 86 Teeth
-
41295501162 Hex ScrewHex Screw
-
42420931130 GasketGasket
-
43>44420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
44420431580 O-RingO-Ring
-
45420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
46>48420832648 Ball Bearing With Bellows Ass'yBall Bearing With Bellows Ass'y
-
47420631610 O-RingO-Ring
-
48420853023 Gear ClampGear Clamp
-
49420851653 Gear ClampGear Clamp
-
50420922825 Formed HoseFormed Hose
-
51420851683 Gear ClampGear Clamp
