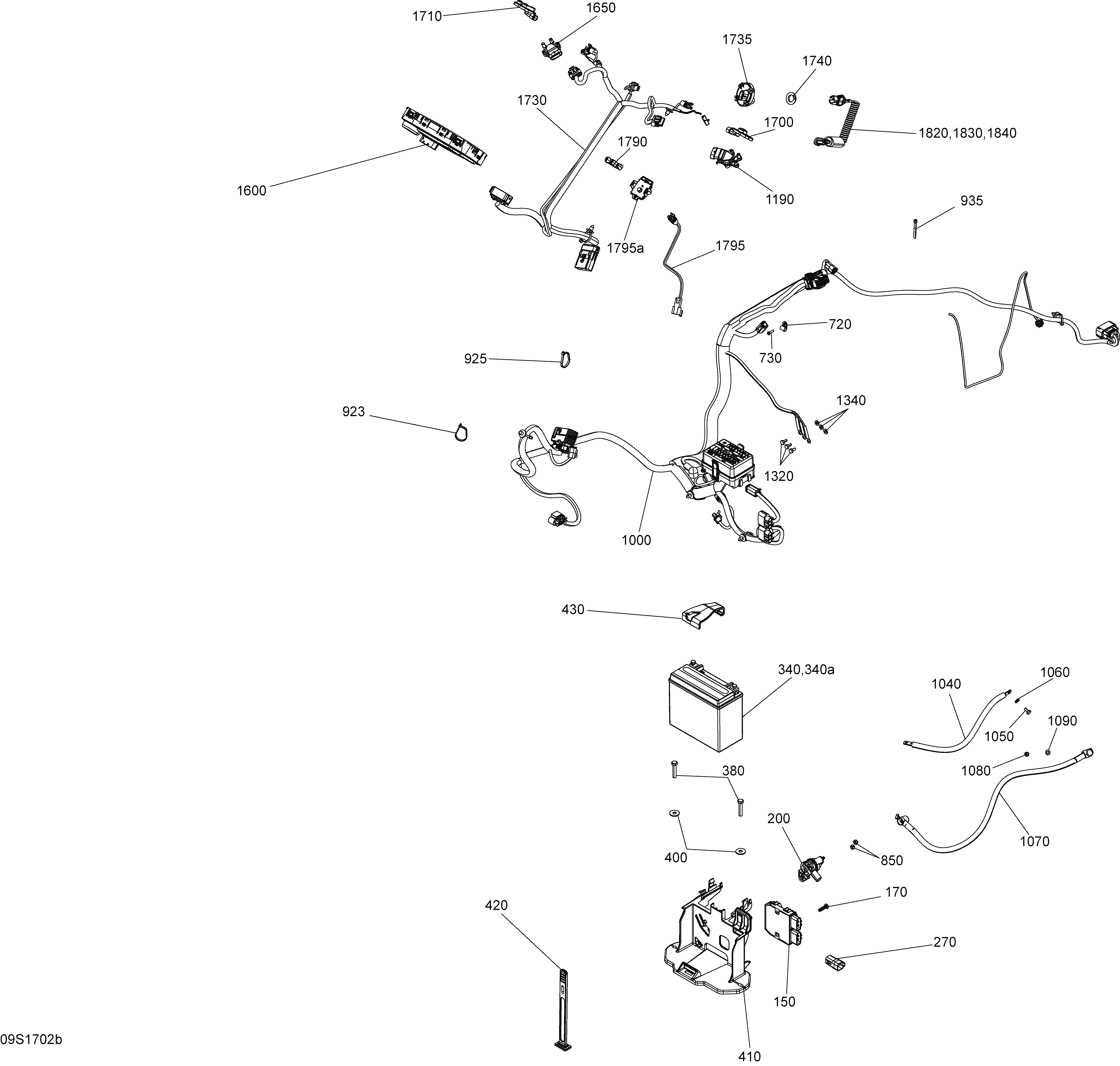

10- Electrical System - Model without Suspension для BRP GTX - 2017
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
170250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
200278003012 Starter RelayStarter Relay
-
270278002704 Diagnostic ConnectorDiagnostic Connector
-
340>340a410301203 Battery Ass'y, 18 Amperes. Includes 340 to 340aBattery Ass'y, 18 Amperes. Includes 340 to 340a
-
340a250000282 Battery Bolt KitBattery Bolt Kit
-
380207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
400234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
410278003136 Batt. SupportBatt. Support
-
420269500408 StrapStrap
-
430278003359 ClipClip
-
720293650257 Clamp. Model GTX LTD 300Clamp. Model GTX LTD 300
-
730250000287 Flanged Torx Screw K40 X 16. Model GTX LTD 300Flanged Torx Screw K40 X 16. Model GTX LTD 300
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
923293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
935293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
1000278003333 Main Harness. Model GTX STDMain Harness. Model GTX STD
-
1000278003337 Main Harness. Model GTX LTDMain Harness. Model GTX LTD
-
1040278003211 Cable GroundCable Ground
-
1050207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1060234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1070278003369 Cable-StarterCable-Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle SensorLH Throttle Sensor
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1600278003533 LCD Gauge. Model GTX LTDLCD Gauge. Model GTX LTD
-
1600278003503 LCD Gauge. Model GTX STDLCD Gauge. Model GTX STD
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278002767 Switch. Model GTX LTDSwitch. Model GTX LTD
-
1700278002768 Switch. Model GTX STDSwitch. Model GTX STD
-
1710278002602 SwitchSwitch
-
1730278003265 Steering Harness Ass'ySteering Harness Ass'y
-
1735515178225 DESS SwitchDESS Switch
-
1740278002963 Safety NutSafety Nut
-
1795>1795a278003615 Sensor Simulator O.T.A.S. Ass'ySensor Simulator O.T.A.S. Ass'y
-
1820278003400 Anti-Theft Tether Cord. Model GTX STDAnti-Theft Tether Cord. Model GTX STD
-
1830278003401 Anti-Theft Tether Cord, LearningAnti-Theft Tether Cord, Learning
-
1840278003402 Anti-Theft Tether Cord. Model GTX LTDAnti-Theft Tether Cord. Model GTX LTD
