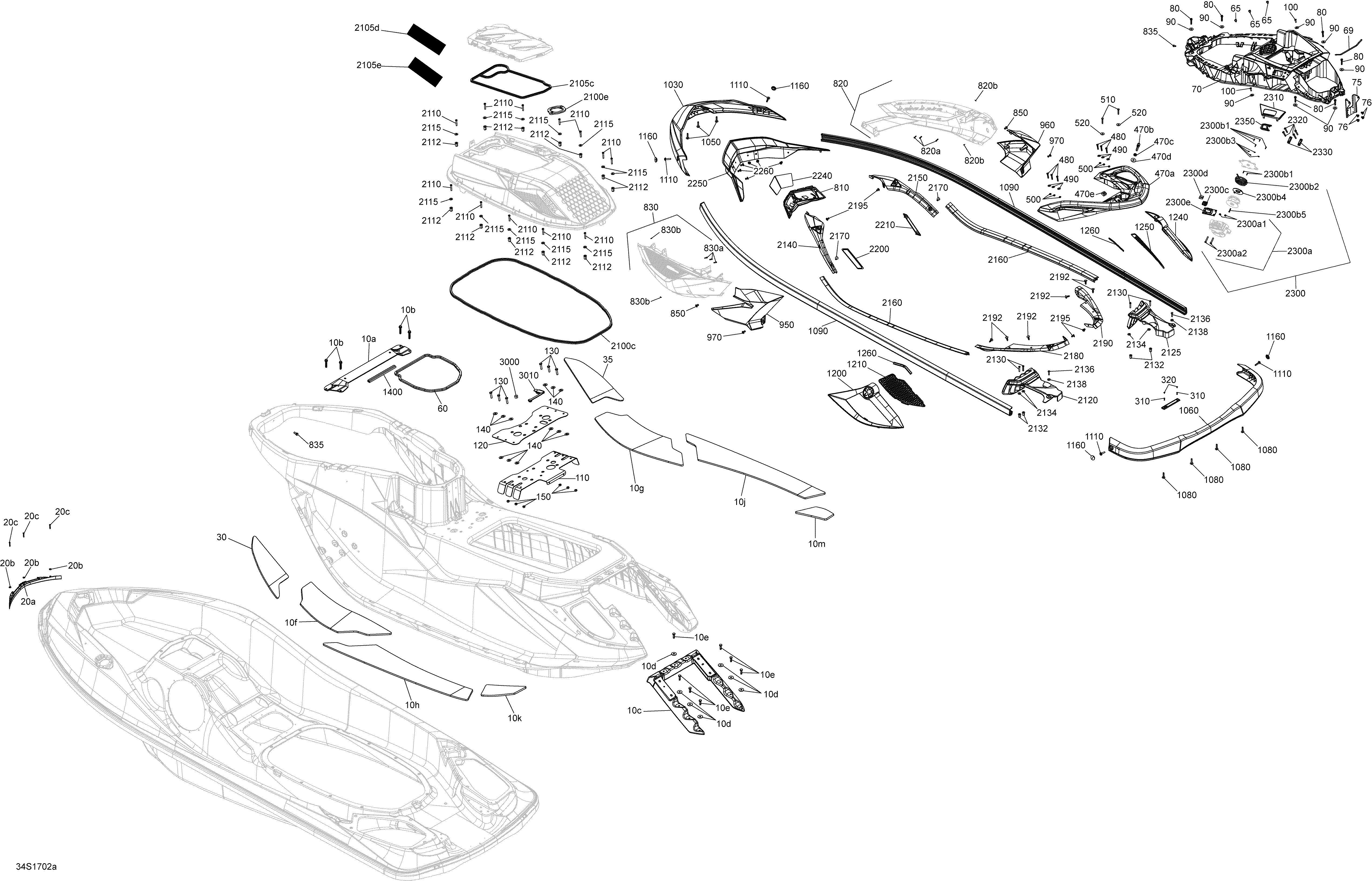

09- Body - GTX S 155, GTX LTD S 260 для BRP GTX - 2017
-
№АртикулНазвание
-
10>10m291004211 Upper Deck Ass. Includes 10 to 10mUpper Deck Ass. Includes 10 to 10m
-
10a291002778 Module StifnerModule Stifner
-
10b243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
10c279000214 Rear Pivot Ass'yRear Pivot Ass'y
-
10d250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
10e207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
10f291003463 LH Center Front CarpetLH Center Front Carpet
-
10g291003464 RH Center Front CarpetRH Center Front Carpet
-
10h291003465 LH Center Rear CarpetLH Center Rear Carpet
-
10j291003466 RH Center Rear CarpetRH Center Rear Carpet
-
10k291002775 LH Rear CarpetLH Rear Carpet
-
10m291002776 RH Rear CarpetRH Rear Carpet
-
20a291002818 Deck NoseDeck Nose
-
20b234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
20c241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
30291002607 LH Front CarpetLH Front Carpet
-
35291002608 RH Front CarpetRH Front Carpet
-
60293250200 Neoprene SealNeoprene Seal
-
65293830005 Rubber BumperRubber Bumper
-
69293250376 SealSeal
-
70291004595 Front ModuleFront Module
-
75291004210 Seat PivotSeat Pivot
-
76293150186 Pop Rivet 3/16Pop Rivet 3/16
-
80243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
90234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
100207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
110291003306 Lower Central ReinforcementLower Central Reinforcement
-
120291003416 Upper ReinforcementUpper Reinforcement
-
130207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
140234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
150232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
470a291004621 Black Rear HandleBlack Rear Handle
-
470b291003878 Seat StudSeat Stud
-
470c232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
470d234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
470e271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
480207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
510207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
520250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
810269501797 Front GridFront Grid
-
820>820b291004202 Front RH Cosmetic Ass. Package LTD. Includes 820 to 820bFront RH Cosmetic Ass. Package LTD. Includes 820 to 820b
-
820a241141660 Flanged Hex. Screw K40 X 16. Package LTDFlanged Hex. Screw K40 X 16. Package LTD
-
820b211100002 Push Nut. Package LTDPush Nut. Package LTD
-
820291004249 Front RH Cosmetic Ass. Package STDFront RH Cosmetic Ass. Package STD
-
830>830b291004205 Front LH Cosmetic Ass. Package LTD. Includes 830 to 830bFront LH Cosmetic Ass. Package LTD. Includes 830 to 830b
-
830a241141660 Flanged Hex. Screw K40 X 16. Package LTDFlanged Hex. Screw K40 X 16. Package LTD
-
830b211100002 Push Nut. Package LTDPush Nut. Package LTD
-
830291004251 Front LH Cosmetic Ass. Package STDFront LH Cosmetic Ass. Package STD
-
835211000106 Hex. Forming Screw M6 X 16Hex. Forming Screw M6 X 16
-
850293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
950291004256 LH CosmeticLH Cosmetic
-
960291004258 RH CosmeticRH Cosmetic
-
970293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
1030291004275 Front BumperFront Bumper
-
1050250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1060291004274 Rear BumperRear Bumper
-
1080250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1090291004451 Side BumperSide Bumper
-
1110250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1160291002744 Bumber CapBumber Cap
-
1200291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
1210291002740 LH Rear Side GrilleLH Rear Side Grille
-
1240291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
1250291002742 RH Rear Side GrilleRH Rear Side Grille
-
1260293250087 Gasket, NeopreneGasket, Neoprene
-
1400271000110 Protection TrimProtection Trim
-
2100>2100e291004056 Deck Extension Ass'y. Includes 2100 to 2100eDeck Extension Ass'y. Includes 2100 to 2100e
-
2100c293250185 Lip SealLip Seal
-
2100e293250209 Lip SealLip Seal
-
2105>2105e295501145 Vent Adaptor. Includes 2105 to 2105eVent Adaptor. Includes 2105 to 2105e
-
2105c293250213 GasketGasket
-
2105d219903090 Warning Decal, Gasoline VaporWarning Decal, Gasoline Vapor
-
2105e219903084 Caution Decal, Engine OilCaution Decal, Engine Oil
-
2110205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
2112250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
2115234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2120291002658 LH Rear GrillLH Rear Grill
-
2125291002698 RH Rear GrillRH Rear Grill
-
2130205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
2132250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
2134234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2136250000681 Hex Screw M6 X 30Hex Screw M6 X 30
-
2138234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2140291002837 LH Front Scraper JointLH Front Scraper Joint
-
2150291002838 RH Front Scraper JointRH Front Scraper Joint
-
2160291003818 Mid JointMid Joint
-
2170293730010 Black DartBlack Dart
-
2180291002696 LH Rear Scraper JointLH Rear Scraper Joint
-
2190291002697 RH Rear Scraper JointRH Rear Scraper Joint
-
2192293730006 Black DartBlack Dart
-
2195293150186 Pop Rivet 3/16Pop Rivet 3/16
-
2200291002694 LH Footrest CoverLH Footrest Cover
-
2210291002695 RH Footrest CoverRH Footrest Cover
-
2240293250231 GasketGasket
-
2250291004280 DeflectorDeflector
-
2260293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
2300>2300e291004019 Retractable Rope Ass'y. Package LTD. Includes 2300 to 2300eRetractable Rope Ass'y. Package LTD. Includes 2300 to 2300e
-
2300a>2300a2291003023 Jam Cleat System Ass'y. Package LTD. Includes 2300a to 2300a2Jam Cleat System Ass'y. Package LTD. Includes 2300a to 2300a2
-
2300a1232561200 Elastic Stop Nut M6, Brass. Package LTDElastic Stop Nut M6, Brass. Package LTD
-
2300a2205364060 Socket Head Screw M6 X 40. Package LTDSocket Head Screw M6 X 40. Package LTD
-
2300b1241731260 Oval Philipp Screw KA30 x 12. Package LTDOval Philipp Screw KA30 x 12. Package LTD
-
2300b2291002733 Rope 3/16''. Package LTDRope 3/16''. Package LTD
-
2300b3234032600 Flat Washer M3, Stainless. Package LTDFlat Washer M3, Stainless. Package LTD
-
2300b4291002762 Inside Cover. Package LTDInside Cover. Package LTD
-
2300b5204100049 Phillips Tapping Screw #8 X 1''. Package LTDPhillips Tapping Screw #8 X 1''. Package LTD
-
2300c291002726 Button. Package LTDButton. Package LTD
-
2300d291002754 Button Cap. Package LTDButton Cap. Package LTD
-
2300e291002729 Rope Guide. Package LTDRope Guide. Package LTD
-
2310291002724 Front Rewinder Cover. Package LTDFront Rewinder Cover. Package LTD
-
2310291002756 Front Rewinder Cap. Package STDFront Rewinder Cap. Package STD
-
2320205364560 Socket Screw Head M6 X 45. Package LTDSocket Screw Head M6 X 45. Package LTD
-
2330291002755 Double Cage Nut Ass'y. Package LTDDouble Cage Nut Ass'y. Package LTD
-
2350291002727 Under Cam. Package LTDUnder Cam. Package LTD
-
3000572051500 CapCap
-
3010293000118 CapCap
