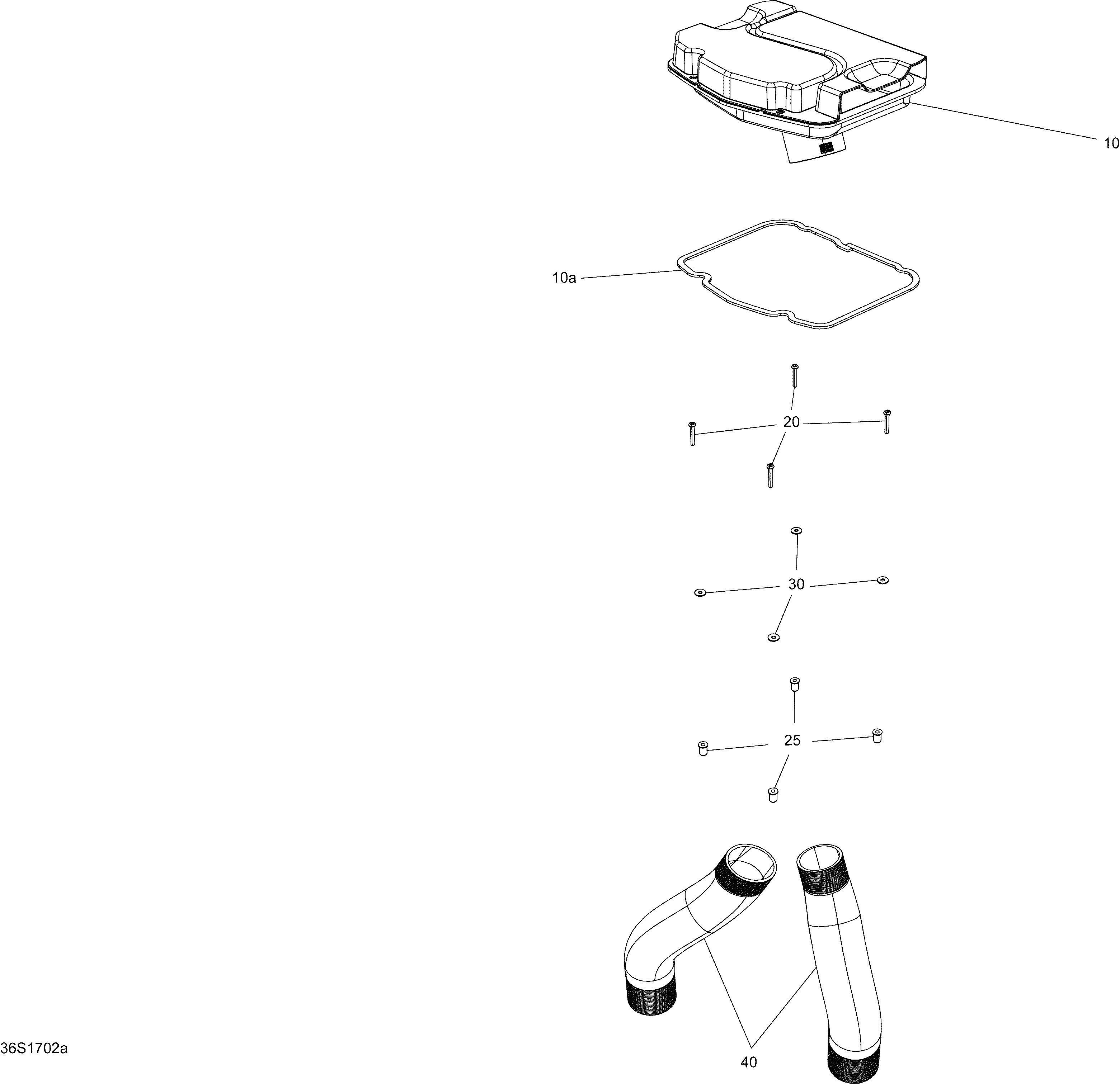

09- Ventilation - Model with Suspension для BRP GTX - 2017
-
№АртикулНазвание
-
10>10a237000063 Front Ventilation Box Ass'y. Includes 10 to 10aFront Ventilation Box Ass'y. Includes 10 to 10a
-
10a293250214 GasketGasket
-
20205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
25250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
30234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
40237000030 Vent Hose 3.5''Vent Hose 3.5''
