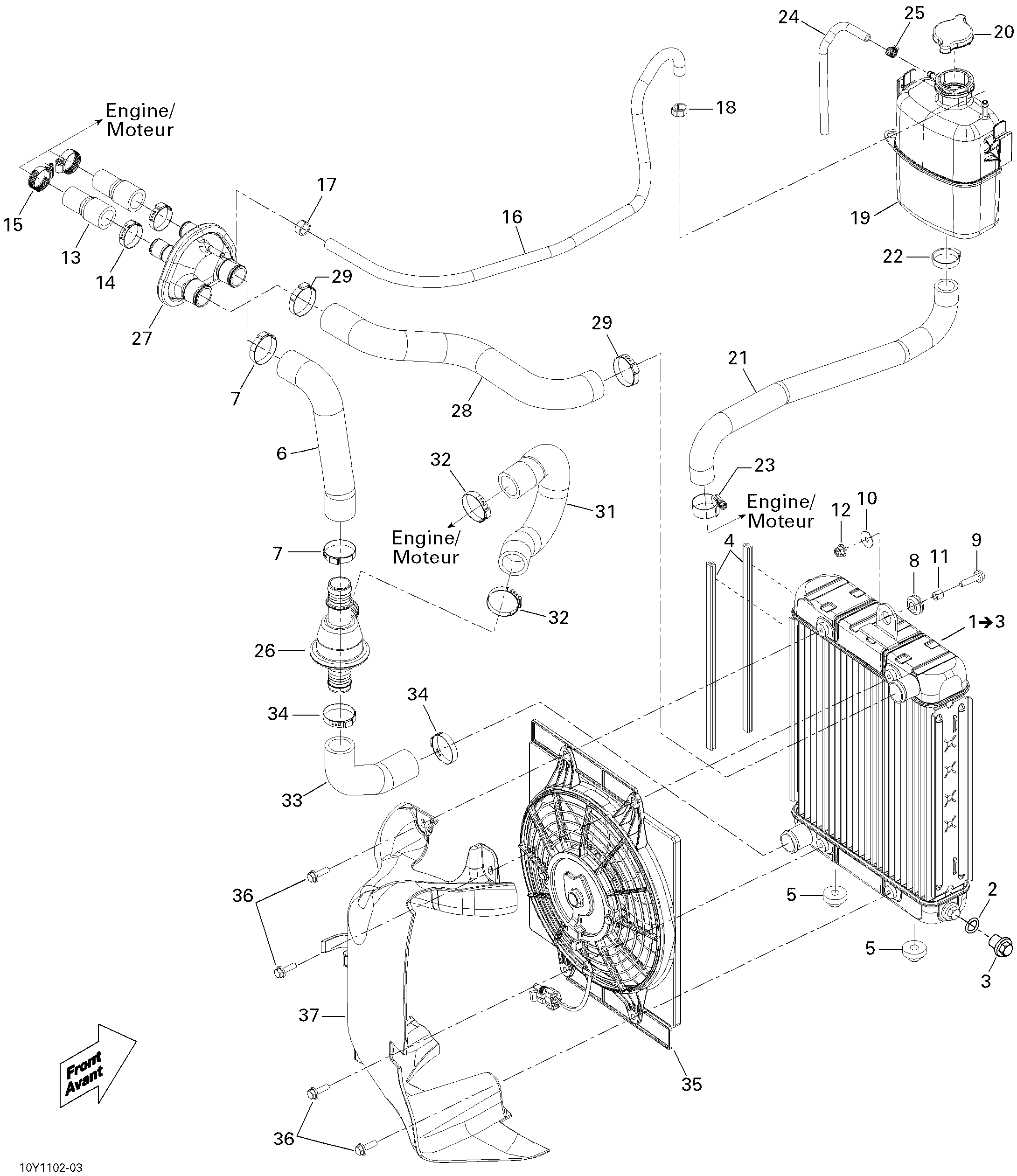

01- Cooling System для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
1709200128 Radiator. Includes 1 to 3Radiator. Includes 1 to 3
-
2709200217 O-RingO-Ring
-
3709200218 Drain PlugDrain Plug
-
4271001530 TrimTrim
-
5709200285 GrommetGrommet
-
6709200215 HoseHose
-
7509000045 Oetiker Gear ClampOetiker Gear Clamp
-
8293720053 GrommetGrommet
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10224060201 Flat WasherFlat Washer
-
11293900045 BushingBushing
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13709200144 HoseHose
-
14293650099 Oetiker Gear ClampOetiker Gear Clamp
-
15293650173 Tridon Gear ClampTridon Gear Clamp
-
16709200186 HoseHose
-
17293650025 Oetiker Gear ClampOetiker Gear Clamp
-
18293650025 Oetiker Gear ClampOetiker Gear Clamp
-
19709200163 Coolant TankCoolant Tank
-
20509000187 Pressure CapPressure Cap
-
21709200139 HoseHose
-
22293650141 Oetiker Gear ClampOetiker Gear Clamp
-
23293650051 Tridon Gear ClampTridon Gear Clamp
-
24415080200 Hose, PolyurethaneHose, Polyurethane
-
25414554800 Spring ClampSpring Clamp
-
26709200384 Thermostat HousingThermostat Housing
-
27709200151 ConnectorConnector
-
28709200272 Coolant Formed HoseCoolant Formed Hose
-
29509000045 Oetiker Gear ClampOetiker Gear Clamp
-
31709200259 Formed HoseFormed Hose
-
32509000045 Oetiker Gear ClampOetiker Gear Clamp
-
33709200185 HoseHose
-
34509000045 Oetiker Gear ClampOetiker Gear Clamp
-
35509000692 Fan Ass'yFan Ass'y
-
36207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
37705003120 DeflectorDeflector
