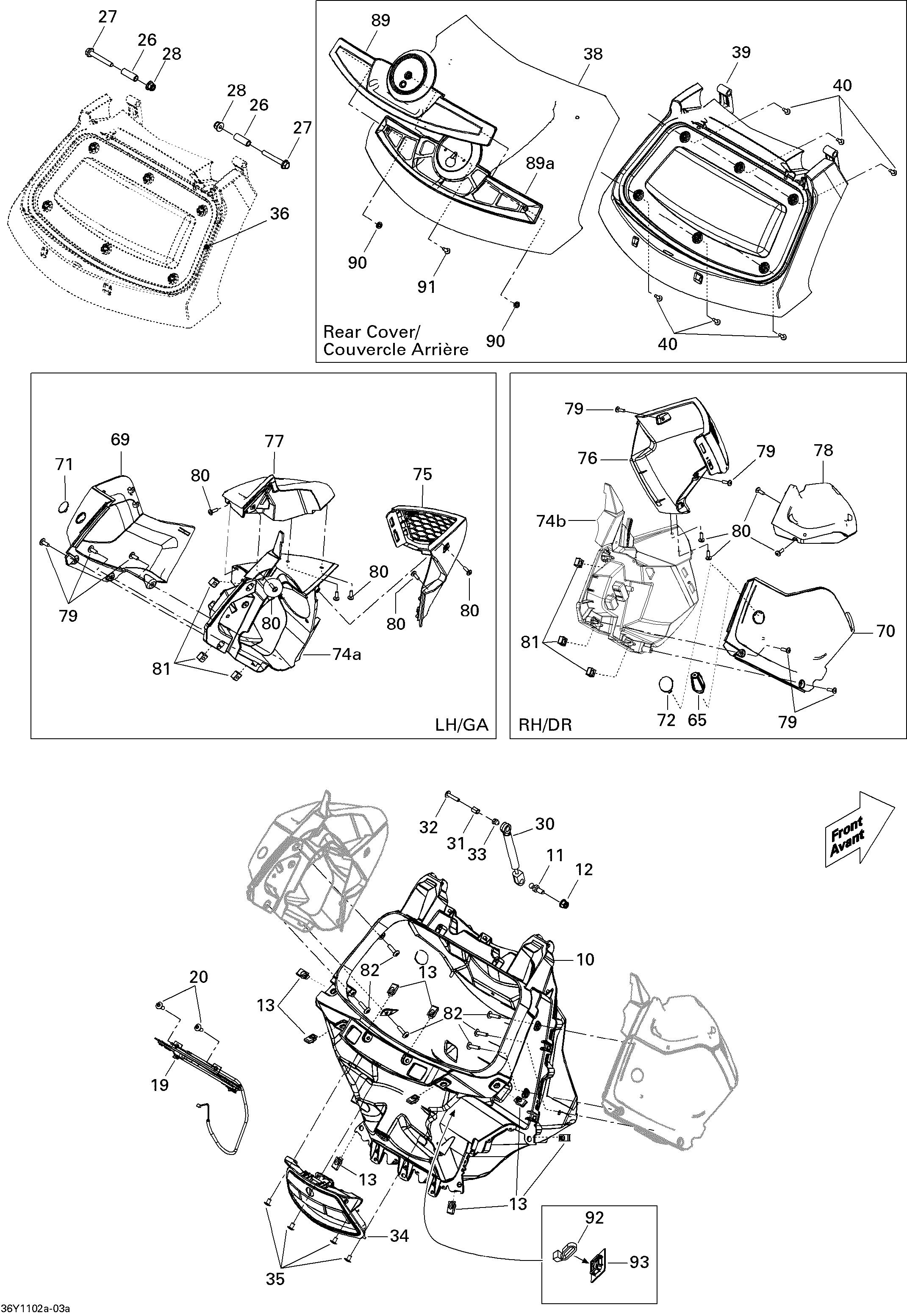

09- Luggages , Rear для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
10708300044 Storage Ass'yStorage Ass'y
-
11250300039 Ball StudBall Stud
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
19708300188 Center LatchCenter Latch
-
20250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
26708300394 SpacerSpacer
-
27207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
28233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
30708300383 Gaz ShockGaz Shock
-
31708300384 SpacerSpacer
-
32250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
33232361493 Domed Nut M6Domed Nut M6
-
34708300546 Main ControlMain Control
-
35250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
36219800177 SealSeal
-
38708300521 Central Cover, White PearlCentral Cover, White Pearl
-
39708300013 Inner CoverInner Cover
-
40250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
65708300156 RH Antena BaseRH Antena Base
-
69708300529 LH Arm Cover, White PearlLH Arm Cover, White Pearl
-
70708300531 RH Arm Cover, White PearlRH Arm Cover, White Pearl
-
71708300533 LH Cap, White PearlLH Cap, White Pearl
-
74A708300036 LH Sound BoxLH Sound Box
-
74b708300037 RH Sound BoxRH Sound Box
-
75708300381 LH Grill Ass'yLH Grill Ass'y
-
76708300382 RH Grill Ass'yRH Grill Ass'y
-
77708000614 LH Arm RestLH Arm Rest
-
78708000615 RH Arm RestRH Arm Rest
-
79250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
80250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
81269500725 Nut Housing Ass'yNut Housing Ass'y
-
82250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
89708300064 MouldingMoulding
-
89a708300425 MouldingMoulding
-
90732610072 Push NutPush Nut
-
91250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
92293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
93293750040 Tie-rap MountTie-rap Mount
