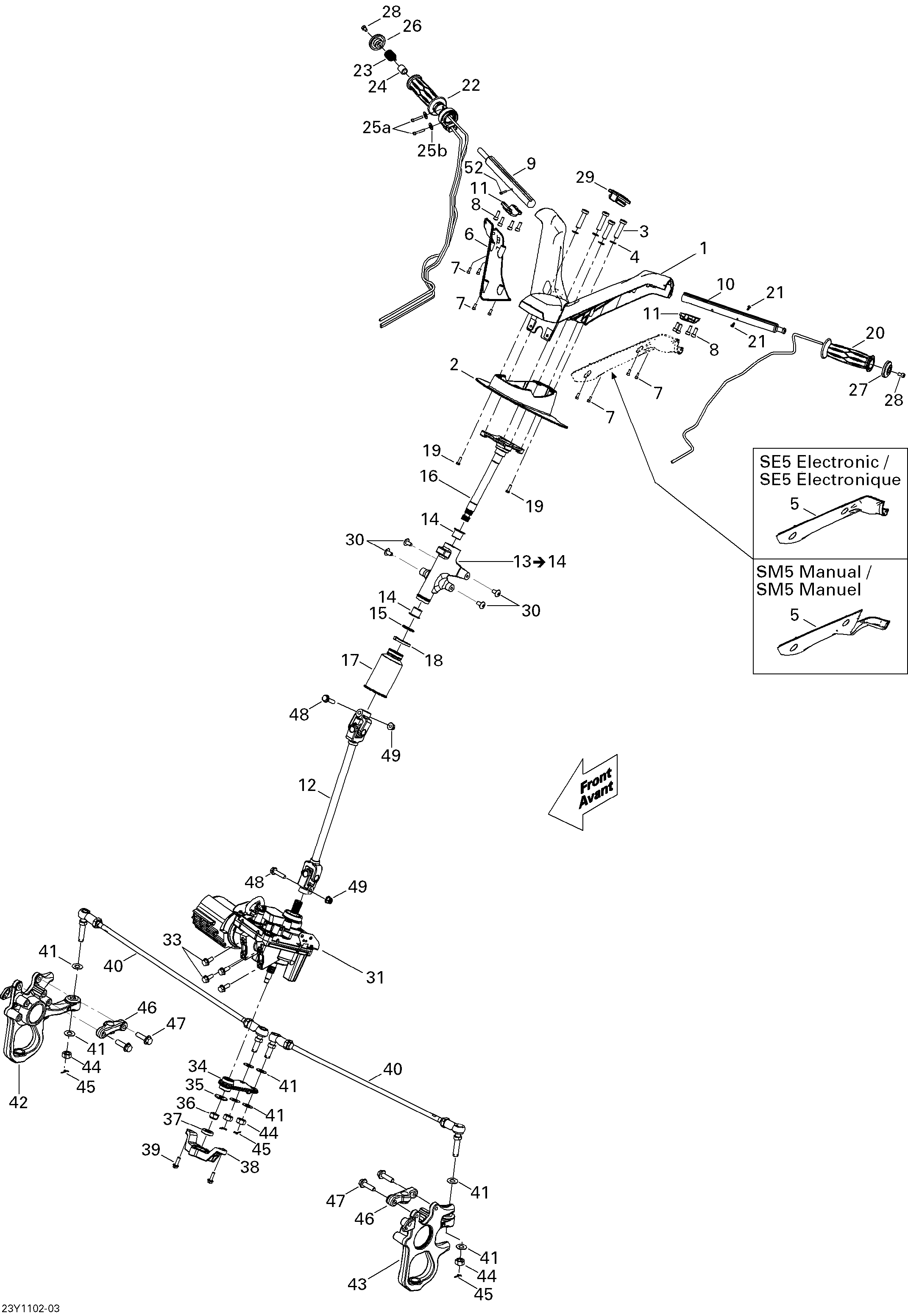

07- Steering для BRP Spyder RT LTD - 2011

№

Артикул

Название
1

709400907 Handlebar, Crystal Silver

Handlebar, Crystal Silver

15 750 ₽
2

709400579 Handlebar Central Cover

Handlebar Central Cover

1 510 ₽
3

250000456 Thin Socket Screw, Scotch Grip, M10 X 40

Thin Socket Screw, Scotch Grip, M10 X 40

2 620 ₽
4

250200105 Stainless Flat Washer, 10 mm

Stainless Flat Washer, 10 mm

190 ₽
5

709400577 LH Steering Cover

LH Steering Cover

1 510 ₽
6

709400578 RH Steering Cover

RH Steering Cover

1 510 ₽
7

205041094 Socket Screw, M4 X 10

Socket Screw, M4 X 10

280 ₽
8

205061644 Socket Head Screw M6 X 16

Socket Head Screw M6 X 16

110 ₽
9

709400884 RH Handlebar Tube

RH Handlebar Tube

5 660 ₽
10

709400981 LH Handlebar

LH Handlebar

0 ₽
11

709400631 Handlebar Clamp

Handlebar Clamp

6 200 ₽
12

709400658 Lower Steering Column

Lower Steering Column

14 830 ₽
13

709400808 Steering Column Support Ass'y. Includes 13 to 14

Steering Column Support Ass'y. Includes 13 to 14

9 160 ₽
15

709000089 O-Ring

O-Ring

1 370 ₽
16

709400774 Upper Steering Column

Upper Steering Column

14 830 ₽
17

709400790 Bellows

Bellows

1 000 ₽
18

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
19

420941925 Tapping Screw M5 X 16

Tapping Screw M5 X 16

180 ₽
20

709400625 Heating Handle Grip

Heating Handle Grip

17 280 ₽
21

250000453 Torx Cutting Screw, M4 X 10

Torx Cutting Screw, M4 X 10

1 540 ₽
22

709400929 Throttle Heating Grip

Throttle Heating Grip

28 870 ₽
23

709400773 Spring

Spring

1 570 ₽
24

709400782 Bushing

Bushing

960 ₽
25a

205042594 Socket Screw, M4 X 25

Socket Screw, M4 X 25

200 ₽
25b

234040600 Flat Washer 4 mm

Flat Washer 4 mm

50 ₽
26

709400765 RH Handlebar End Piece

RH Handlebar End Piece

0 ₽
27

709400793 LH Handlebar End Piece

LH Handlebar End Piece

2 360 ₽
28

205061094 Socket Screw, M6 X 10

Socket Screw, M6 X 10

200 ₽
30

250000198 Torx Truss Screw M8 X 16

Torx Truss Screw M8 X 16

310 ₽
31

709400965 Assisted Power Steering

Assisted Power Steering

0 ₽
31a

219800191 DPS Hardware Kit. Not Shown

DPS Hardware Kit. Not Shown

210 ₽
33

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip

600 ₽
34

709400922 Steering Pitman Arm

Steering Pitman Arm

2 250 ₽
35

250200113 Flat Washer, 12 mm

Flat Washer, 12 mm

410 ₽
36

250000047 Hex. Flanged Elastic Nut M12

Hex. Flanged Elastic Nut M12

670 ₽
37

293200113 Seal Ring

Seal Ring

1 360 ₽
38

709400455 Sensor Support

Sensor Support

1 470 ₽
39

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip

740 ₽
40

709400727 Tie Rod Ass'y

Tie Rod Ass'y

13 460 ₽
41

250200086 Flat Washer

Flat Washer

1 980 ₽
42

505071711 Knuckle RH

Knuckle RH

14 070 ₽
43

505071709 Knuckle LH

Knuckle LH

14 070 ₽
44

250100099 Nut M12

Nut M12

740 ₽
45

250400034 Cotter Pin

Cotter Pin

740 ₽
46

706200528 Upper Support

Upper Support

4 860 ₽
47

207503534 Hex. Flange Screw, Scotch Grip

Hex. Flange Screw, Scotch Grip

330 ₽
48

207583586 Hex. Flanged Screw M8 X 35, Scotch Grip

Hex. Flanged Screw M8 X 35, Scotch Grip

880 ₽
49

233281416 Elastic Flanged Nut M8

Elastic Flanged Nut M8

540 ₽
52

250000494 Socket Screw, M4 X 16 Scotch Grip

Socket Screw, M4 X 16 Scotch Grip

200 ₽
