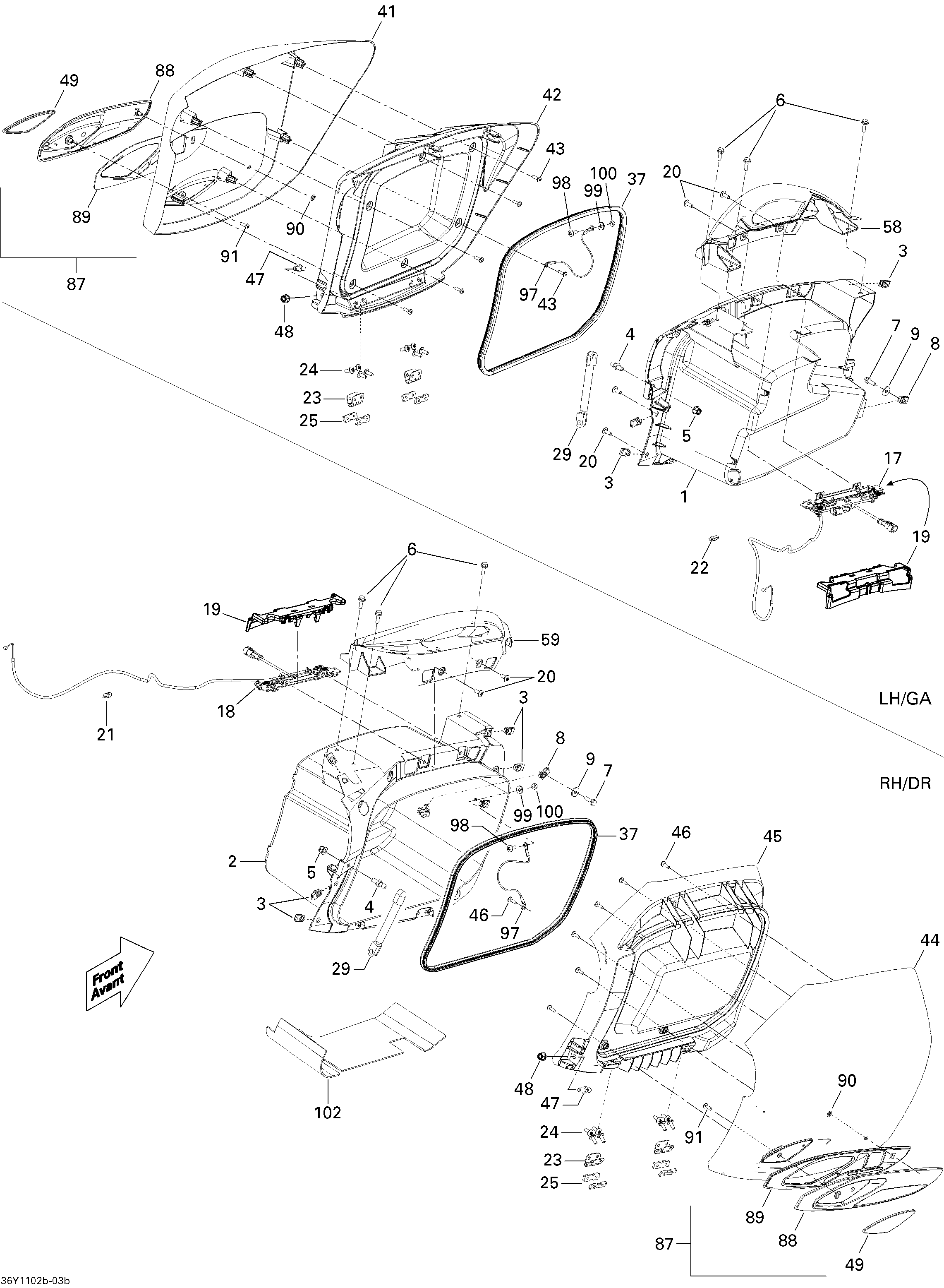

09- Luggages , Lateral для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
1708300000 LH CargoLH Cargo
-
2708300001 RH CargoRH Cargo
-
3250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4250300016 Ball StudBall Stud
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
9224061201 Flat WasherFlat Washer
-
17708300186 LH LatchLH Latch
-
18708300187 RH LatchRH Latch
-
19708300514 Latch ProtectorLatch Protector
-
20250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23708300006 HingeHinge
-
24250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
25708300129 PlatePlate
-
29708300011 Gaz ShockGaz Shock
-
37219800177 SealSeal
-
41708300523 LH Cover, White PearlLH Cover, White Pearl
-
42708300015 Inner CoverInner Cover
-
43250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
44708300525 RH Cover, White PearlRH Cover, White Pearl
-
45708300017 Inner CoverInner Cover
-
46250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
47250300016 Ball StudBall Stud
-
48233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
49705002423 Amber Lateral Reflector. EuropeAmber Lateral Reflector. Europe
-
49705003412 Red Reflector. North AmericaRed Reflector. North America
-
58708300496 LH Passenger Handle HeatLH Passenger Handle Heat
-
59708300498 RH Passenger Handle HeatRH Passenger Handle Heat
-
87708300534 LH Moulding LuggageLH Moulding Luggage
-
87a708300423 LH MouldingLH Moulding
-
88708300535 RH Moulding LuggageRH Moulding Luggage
-
88a708300424 RH MouldingRH Moulding
-
90732610072 Push NutPush Nut
-
91250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
97708300385 Retainer CableRetainer Cable
-
98250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
99211200055 Flat Washer, Stainless/NeopreneFlat Washer, Stainless/Neoprene
-
100232061414 Hex. Nut M6Hex. Nut M6
-
102705004173 Heat ShieldHeat Shield
