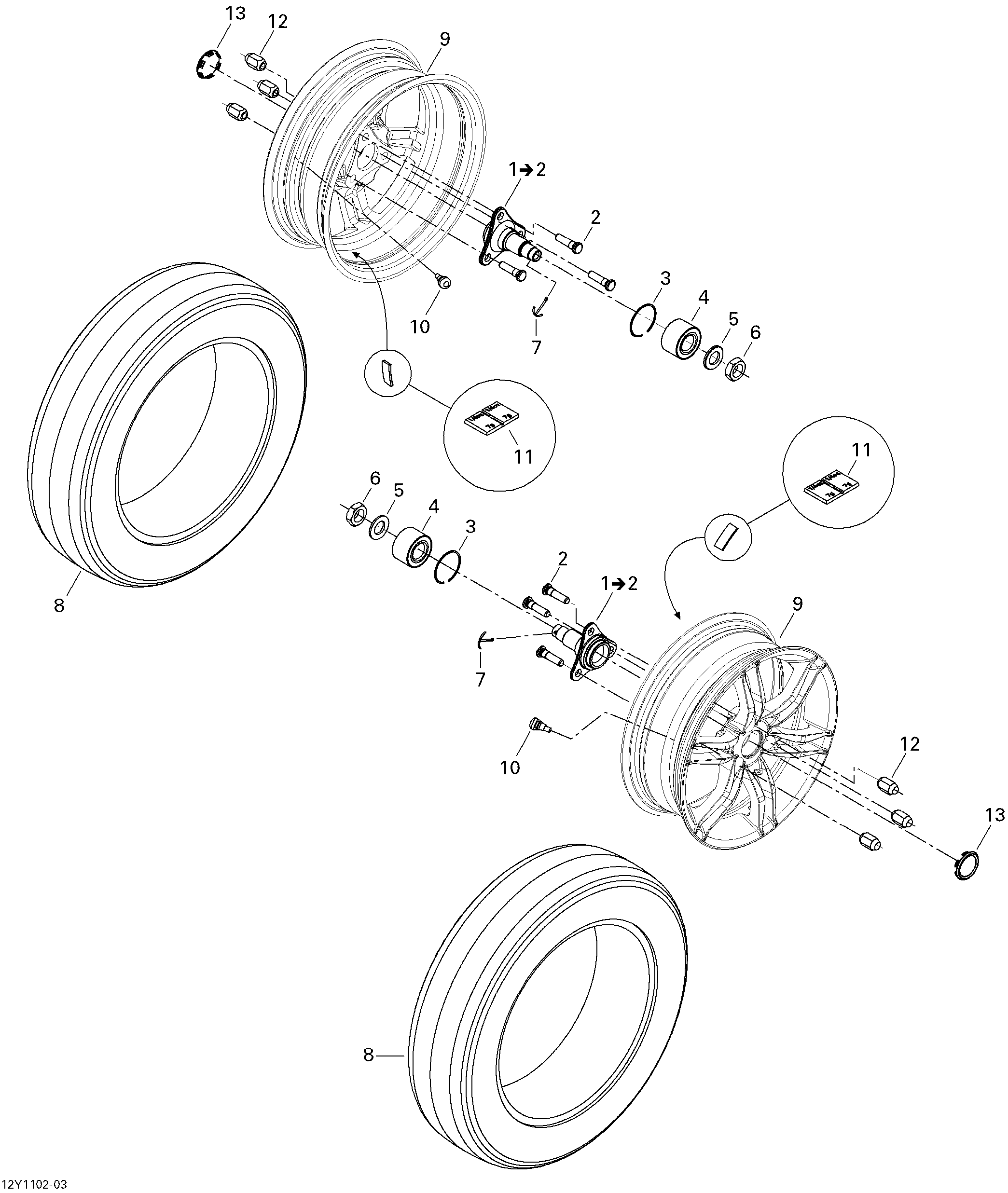

07- Drive System, Front для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
1706201159 Hub Ass'y. Includes 1 to 2Hub Ass'y. Includes 1 to 2
-
2250300024 Wheel Stud M12 X 1.5Wheel Stud M12 X 1.5
-
3293370019 CirclipCirclip
-
4293350040 Cone BearingCone Bearing
-
5250200094 Flat WasherFlat Washer
-
6250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
7250400047 Cotter PinCotter Pin
-
8706201411 Front TireFront Tire
-
9706201121 Front Rim, Smoked ChromeFront Rim, Smoked Chrome
-
10705400193 Rim Valve with CapRim Valve with Cap
-
11705501430 Adhesive WeightAdhesive Weight
-
12250100057 Wheel NutWheel Nut
-
13705400388 Wheel CapWheel Cap
