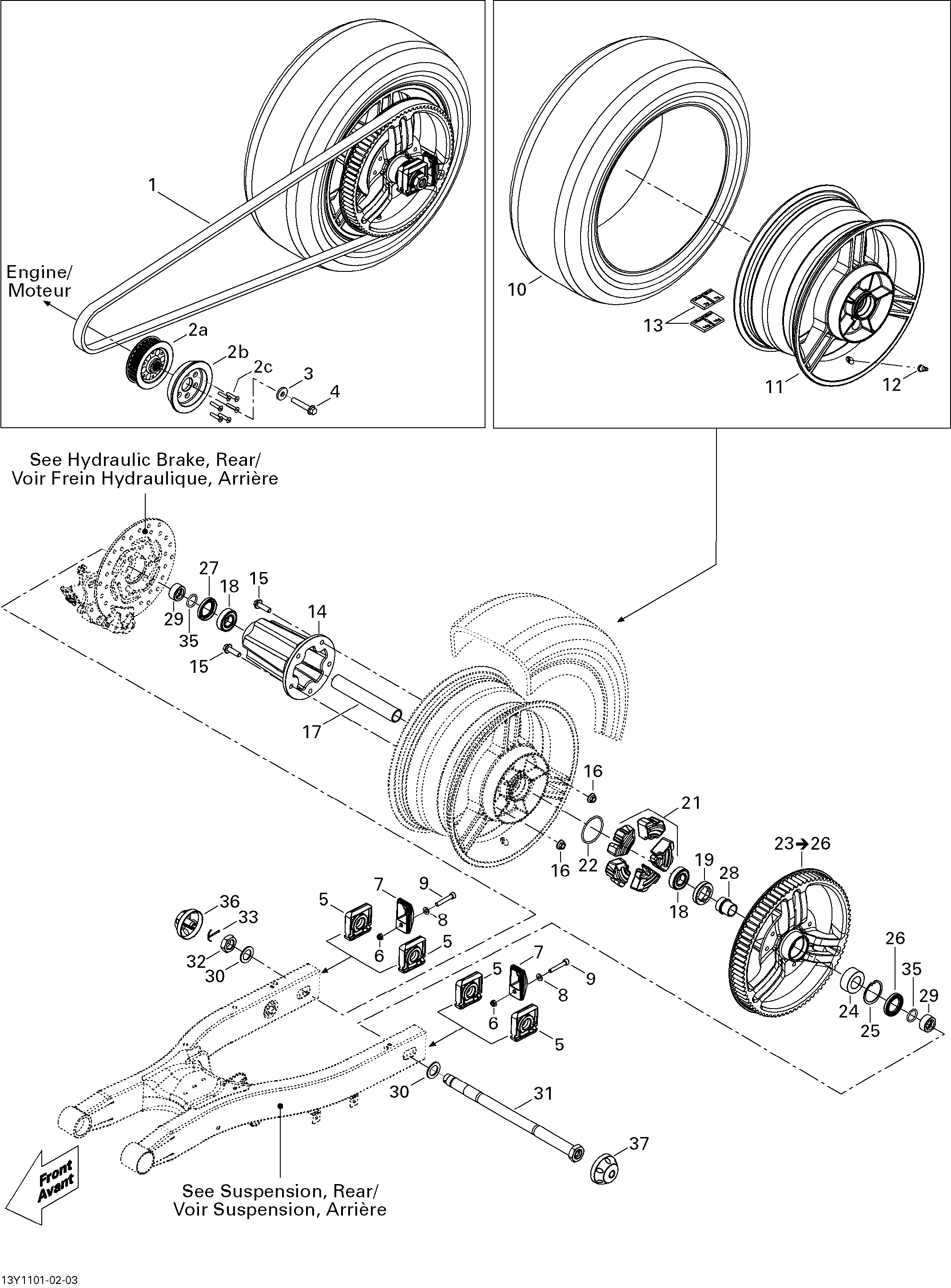

08- Drive System, Rear для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
1705501154 Drive BeltDrive Belt
-
2a705501201 28 Teeth Sprocket28 Teeth Sprocket
-
2b705501250 FlywheelFlywheel
-
2c205884046 Socket Screw M8 X 40, Scotch GripSocket Screw M8 X 40, Scotch Grip
-
3250200052 WasherWasher
-
4250000250 Flanged Hex. Screw M12 X 65, Scotch GripFlanged Hex. Screw M12 X 65, Scotch Grip
-
5705500770 Sliding BlockSliding Block
-
6250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
7705501431 Adjustment SupportAdjustment Support
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9250000514 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
10705501464 Rear TireRear Tire
-
11705501117 Rear Wheel RimRear Wheel Rim
-
12705400193 Rim Valve with CapRim Valve with Cap
-
13705501430 Adhesive WeightAdhesive Weight
-
14705501119 Rear Wheel HubRear Wheel Hub
-
15207503544 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
16233101414 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
17705500583 SpacerSpacer
-
18293350067 Ball BearingBall Bearing
-
19705500852 NutNut
-
21705500736 DamperDamper
-
22293300124 O-RingO-Ring
-
23705501305 Sproket Ass'y, 79 Teeth. Includes 23 to 26Sproket Ass'y, 79 Teeth. Includes 23 to 26
-
24293350065 Double Row BearingDouble Row Bearing
-
25293370053 CirclipCirclip
-
26293200094 SealSeal
-
27293200094 SealSeal
-
28705500853 SpacerSpacer
-
29705500773 SpacerSpacer
-
30250200093 Flat WasherFlat Washer
-
31705500746 Rear Drive AxleRear Drive Axle
-
32250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
33250400047 Cotter PinCotter Pin
-
35293300131 O-RingO-Ring
-
36705501022 Cap RHCap RH
-
37705501081 Cap LHCap LH
