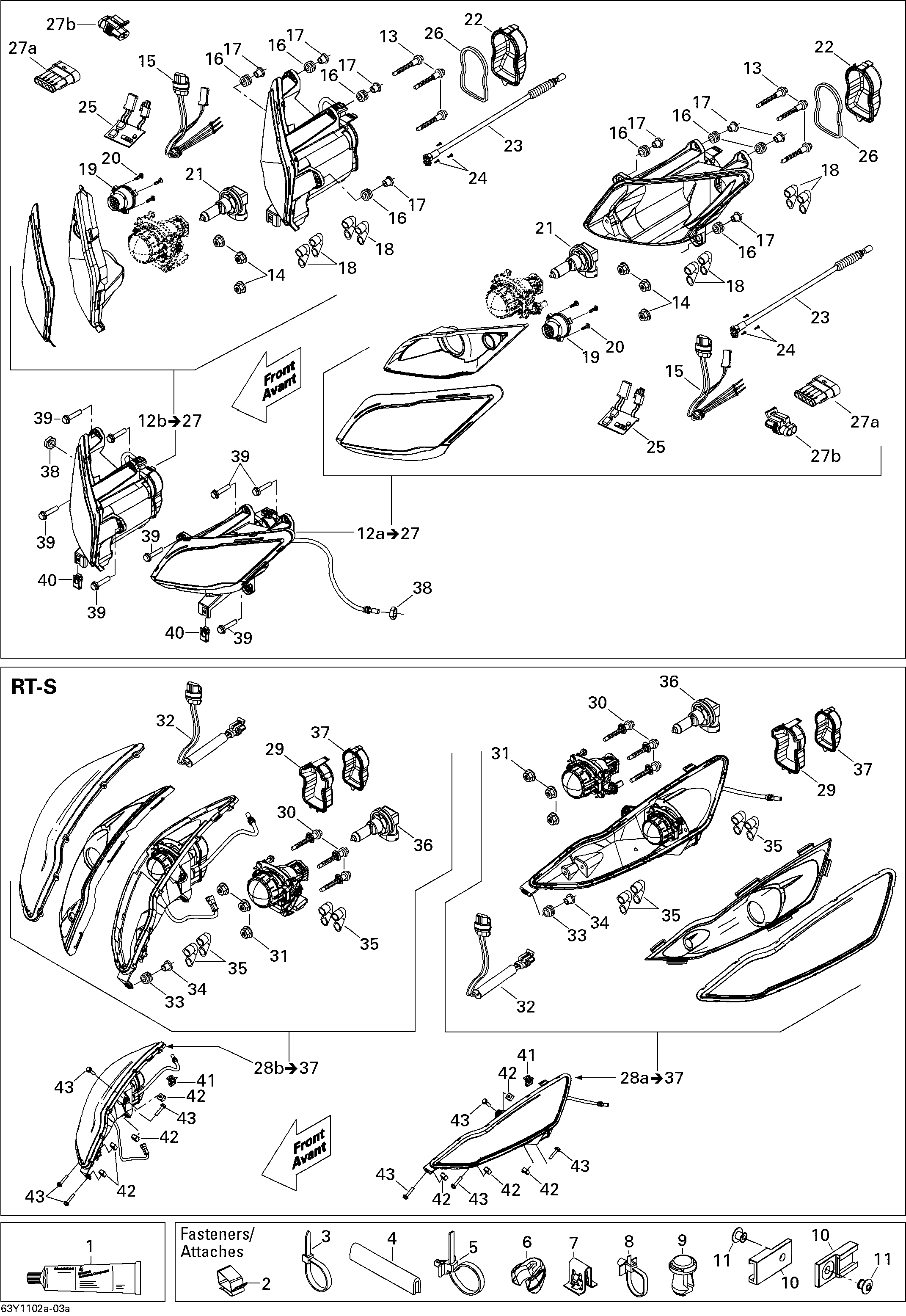

10- Lighting System для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2414227300 ClipClip
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
6710001452 Wire BracketWire Bracket
-
7517302785 Clip. North AmericaClip. North America
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12a710001383 LH Bi-Halogen Beam Ass'y. Includes 12a to 27LH Bi-Halogen Beam Ass'y. Includes 12a to 27
-
12b710001385 RH Bi-Halogen Beam Ass'y. Includes 12b to 27RH Bi-Halogen Beam Ass'y. Includes 12b to 27
-
16219800100 AntivibrationAntivibration
-
17219800099 SpacerSpacer
-
18219800133 Rubber VentilationRubber Ventilation
-
19710002030 5 Led Light5 Led Light
-
19710002031 Light HousingLight Housing
-
20219800134 Chromed Screw 4X19Chromed Screw 4X19
-
21219800136 Halogen Bulb HB3 65WHalogen Bulb HB3 65W
-
22219800174 Cover With GasketCover With Gasket
-
23219800111 Adjustement CableAdjustement Cable
-
24219800110 Chromed Screw 4X13Chromed Screw 4X13
-
26219800139 GasketGasket
-
27a710000779 HousingHousing
-
27b710002160 Connector With PlugConnector With Plug
-
28a710002151 LH Fog Light. North America, Includes 28a to 37LH Fog Light. North America, Includes 28a to 37
-
28b710002150 RH Fog Light. North America, Includes 28b to 37RH Fog Light. North America, Includes 28b to 37
-
33219800100 AntivibrationAntivibration
-
34219800099 SpacerSpacer
-
35219800101 Rubber VentilationRubber Ventilation
-
36219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
37219800174 Cover With GasketCover With Gasket
-
38232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
39207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
40250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
41517302785 ClipClip
-
42269500725 Nut Housing Ass'yNut Housing Ass'y
-
43207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
