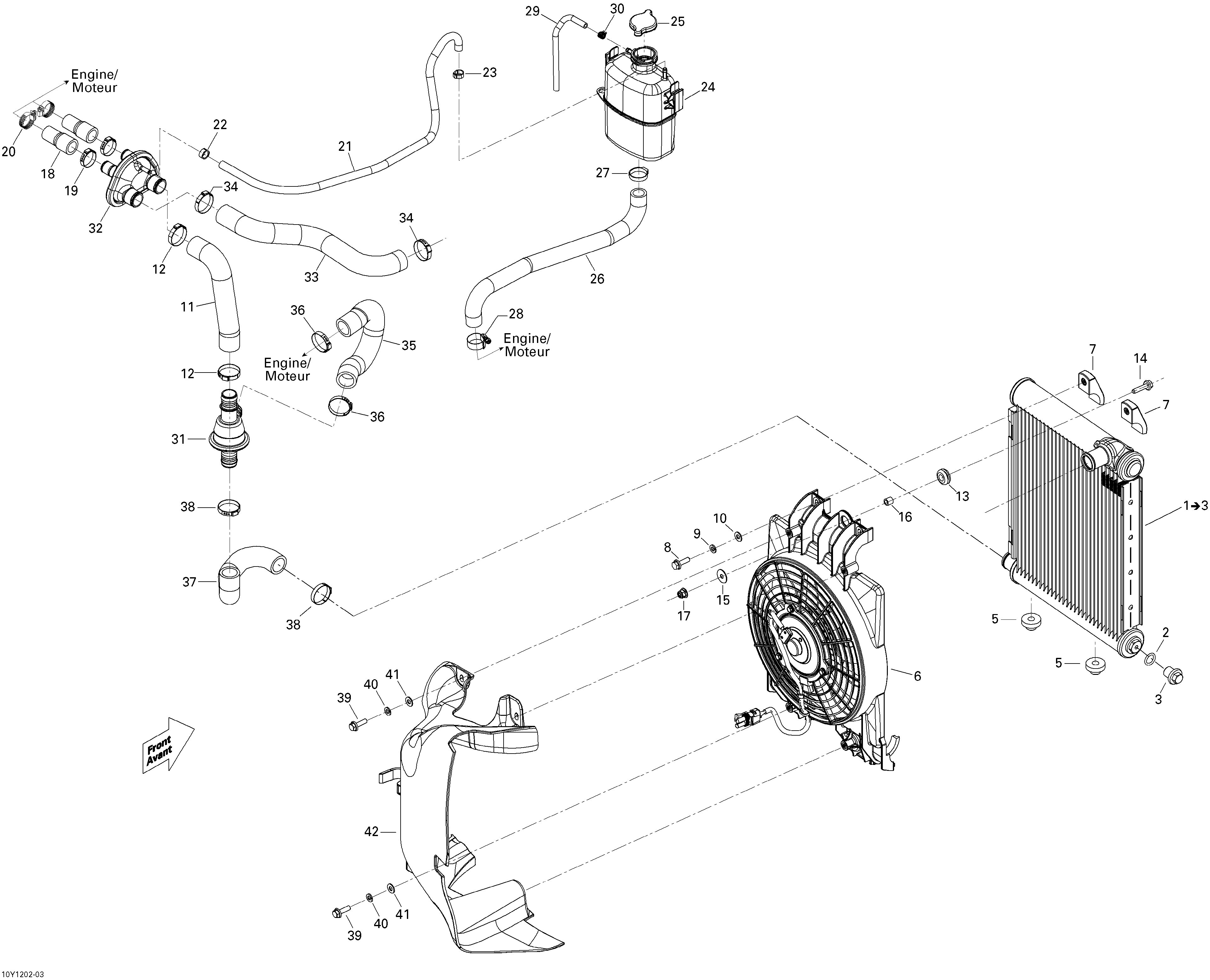

01- Cooling System для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
1709200337 Radiator. Includes 1 to 3Radiator. Includes 1 to 3
-
2709200417 O-RingO-Ring
-
3709200418 Drain PlugDrain Plug
-
5709200285 GrommetGrommet
-
6709200338 Fan Ass'yFan Ass'y
-
7709200372 BracketBracket
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9234161601 Lock Washer Helical M6Lock Washer Helical M6
-
10224061121 Flat WasherFlat Washer
-
11709200215 HoseHose
-
12509000045 Oetiker Gear ClampOetiker Gear Clamp
-
13293720053 GrommetGrommet
-
14207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
15224060201 Flat WasherFlat Washer
-
16293900105 BushingBushing
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18709200144 HoseHose
-
19293650099 Oetiker Gear ClampOetiker Gear Clamp
-
20293650173 Tridon Gear ClampTridon Gear Clamp
-
21709200415 HoseHose
-
22293650025 Oetiker Gear ClampOetiker Gear Clamp
-
23293650025 Oetiker Gear ClampOetiker Gear Clamp
-
24709200412 Coolant TankCoolant Tank
-
25509000187 Pressure CapPressure Cap
-
26709200139 HoseHose
-
27293650141 Oetiker Gear ClampOetiker Gear Clamp
-
28293650051 Tridon Gear ClampTridon Gear Clamp
-
29415080200 Hose, PolyurethaneHose, Polyurethane
-
30414554800 Spring ClampSpring Clamp
-
31709200384 Thermostat HousingThermostat Housing
-
32709200151 ConnectorConnector
-
33709200272 Coolant Formed HoseCoolant Formed Hose
-
34509000045 Oetiker Gear ClampOetiker Gear Clamp
-
35709200259 Formed HoseFormed Hose
-
36509000045 Oetiker Gear ClampOetiker Gear Clamp
-
37709200301 HoseHose
-
38509000045 Oetiker Gear ClampOetiker Gear Clamp
-
39207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
40234161601 Lock Washer Helical M6Lock Washer Helical M6
-
41224061121 Flat WasherFlat Washer
-
42705003120 DeflectorDeflector
