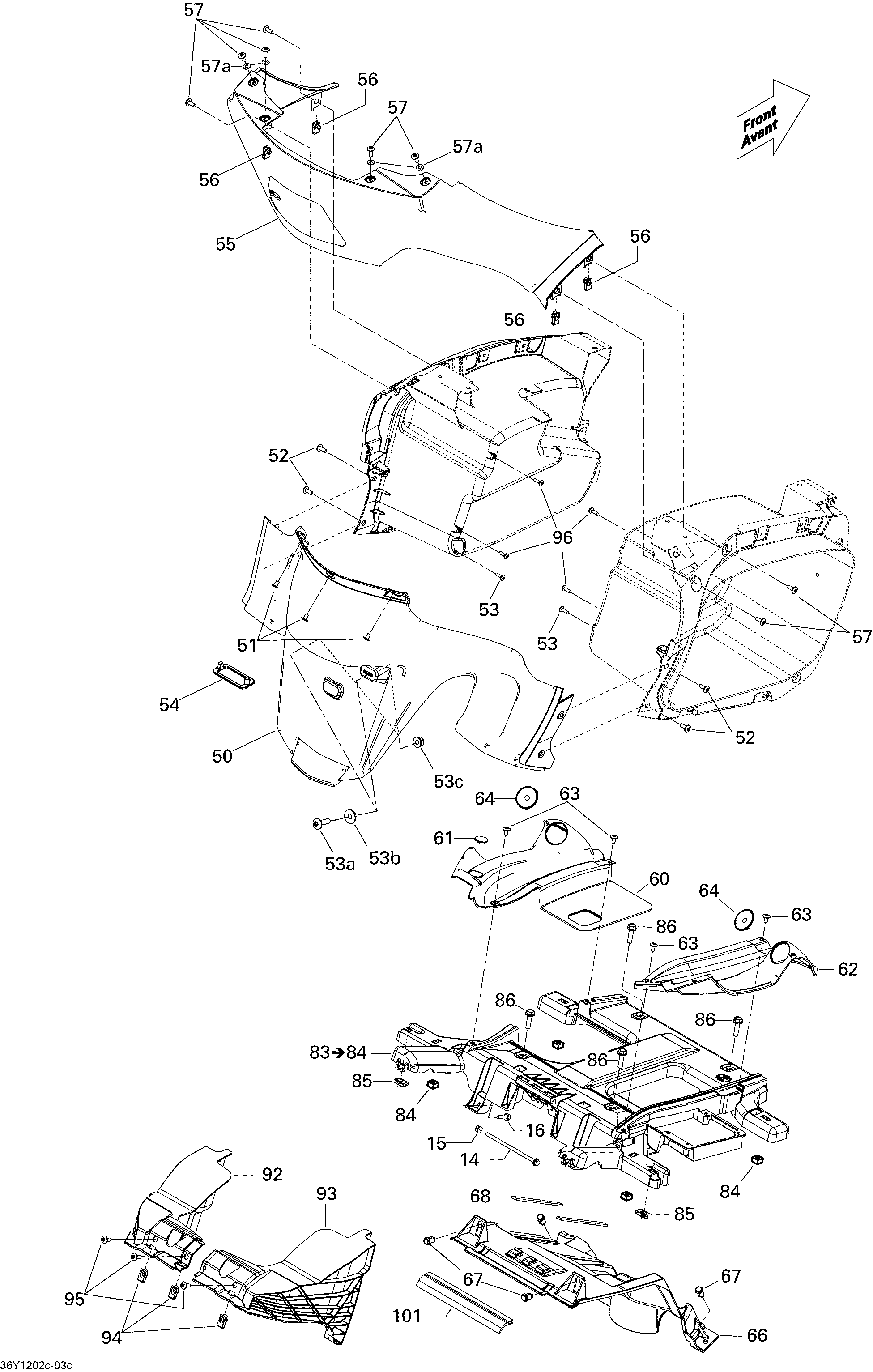

09- Luggages Rear Fender для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
14230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
15233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
16207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
50708300020 Rear FenderRear Fender
-
51250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
52250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
53250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
53a250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
53b234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
53c233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
54708300177 PlatePlate
-
55708300586 Rear Pannel, Bronze. LTD, Bronze ModelRear Pannel, Bronze. LTD, Bronze Model
-
55708300527 Vegas White Rear Pannel. LTD, White ModelVegas White Rear Pannel. LTD, White Model
-
56250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
57250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
57a705003207 Plastic WasherPlastic Washer
-
60708300209 LH Handle PannelLH Handle Pannel
-
61708300405 CapCap
-
62708300027 RH Handle PannelRH Handle Pannel
-
63250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
66708300028 Under Tail Rear Wheel CoverUnder Tail Rear Wheel Cover
-
67293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
68293250087 Gasket, NeopreneGasket, Neoprene
-
83708300781 Rear Support Ass'y. Includes 83 to 84Rear Support Ass'y. Includes 83 to 84
-
84269500725 Nut Housing Ass'yNut Housing Ass'y
-
85250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
86207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
92708300327 LH Inner FenderLH Inner Fender
-
93708300328 RH Inner FenderRH Inner Fender
-
94250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
95250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
96250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
101708300397 SealSeal
