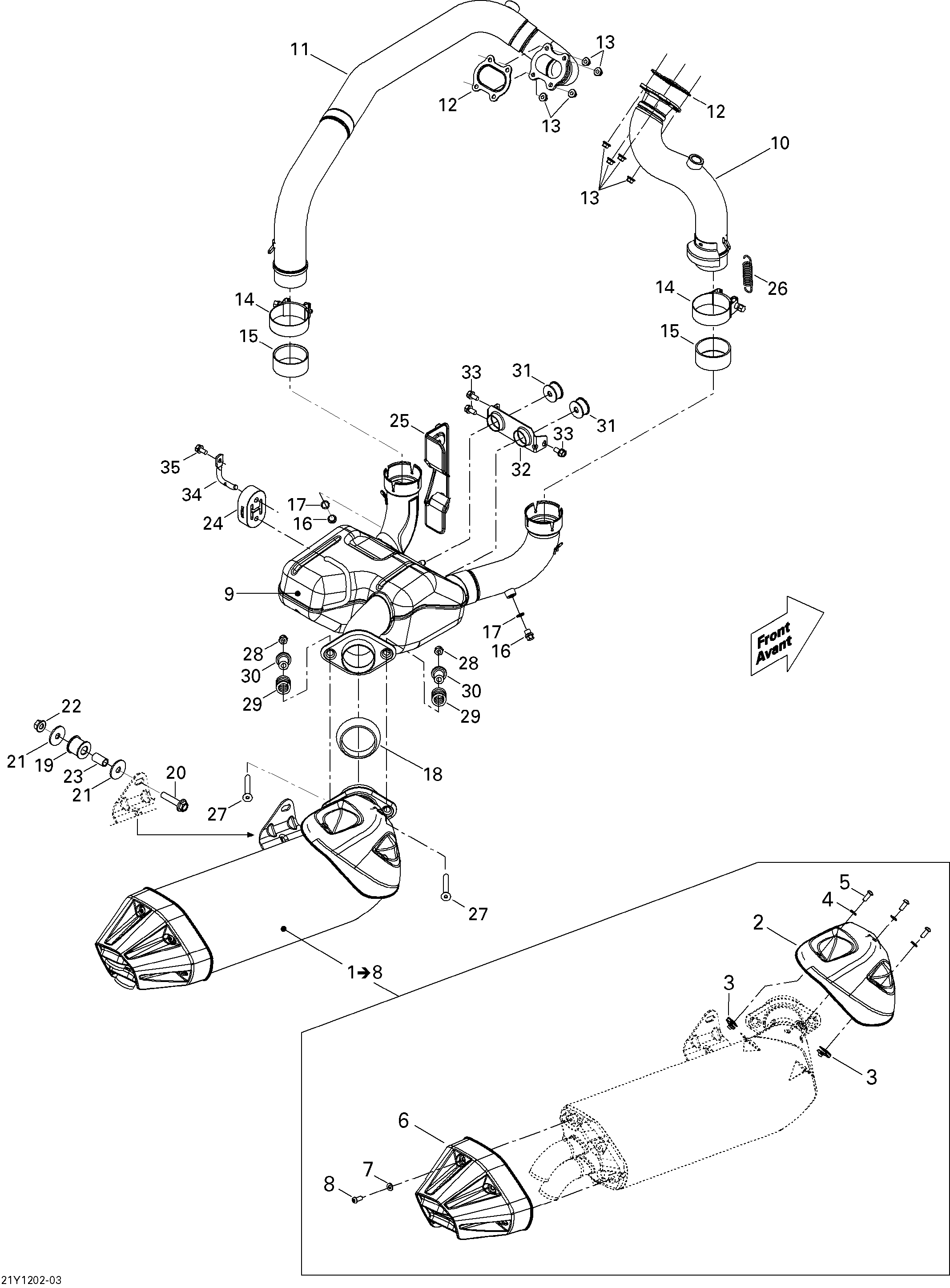

01- Exhaust System для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
1707600948 Muffler Ass'y. Includes 1 to 8Muffler Ass'y. Includes 1 to 8
-
2707600949 Exhaust Heat ShieldExhaust Heat Shield
-
3250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5250000437 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
6707600950 End CapEnd Cap
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8250000437 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
9707800499 Primary Exhaust MufflerPrimary Exhaust Muffler
-
10707600649 Rear Exhaust Tuned PipeRear Exhaust Tuned Pipe
-
11707600634 Front Exhaust Tuned PipeFront Exhaust Tuned Pipe
-
12707600296 SealSeal
-
13233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
14707600651 CollarCollar
-
15707600650 Pipe Slip JointPipe Slip Joint
-
16250100122 Threaded Cap M10Threaded Cap M10
-
17414920600 WasherWasher
-
18514053677 Exhaust GasketExhaust Gasket
-
19707600683 Anti-Vibration RubberAnti-Vibration Rubber
-
20207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
21506150000 Washer 10 mmWasher 10 mm
-
22233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
23705003206 BushingBushing
-
24707600638 Rubber BumperRubber Bumper
-
25707600653 DeflectorDeflector
-
26514054226 SpringSpring
-
27250000404 Socket Screw, M8 X 75Socket Screw, M8 X 75
-
28232581600 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
29707600682 SpringSpring
-
30707600750 BushingBushing
-
31707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
32707600661 Front BracketFront Bracket
-
33210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
34707600666 Retaining RodRetaining Rod
-
35210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
