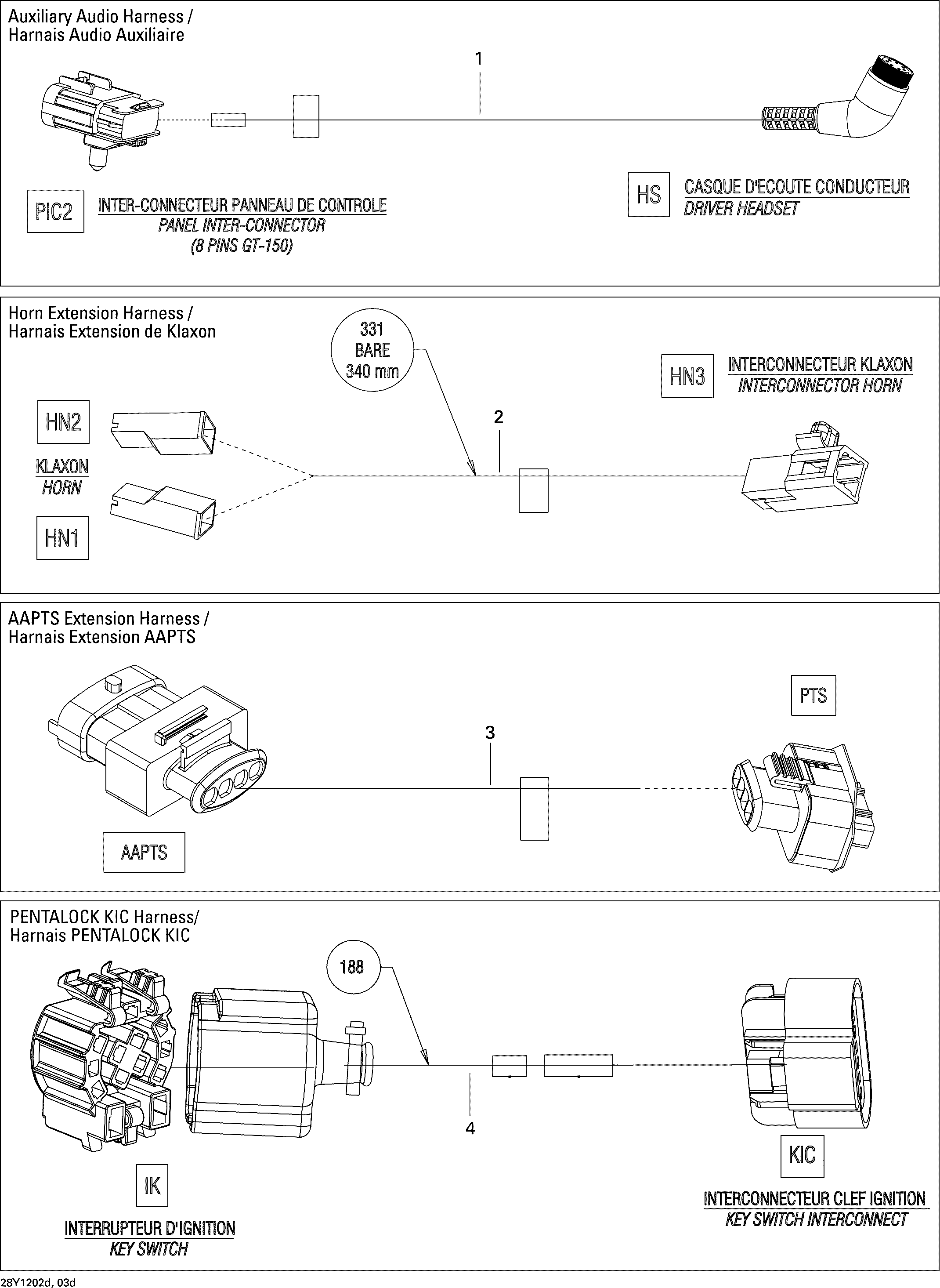

10- Electrical Harness , Miscellaneous для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
2710001864 Horn Extension Harness. Includes 2 to HN3Horn Extension Harness. Includes 2 to HN3
-
331710000244 Protector Tube, 4 mmProtector Tube, 4 mm
-
HN1409010100 Female TerminalFemale Terminal
-
HN1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
HN2409010100 Female TerminalFemale Terminal
-
HN2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
HN3515175232 Male TerminalMale Terminal
-
HN3710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
3710001865 Extended Harness AAPTS. Includes 3 to PTSExtended Harness AAPTS. Includes 3 to PTS
-
AAPTS710001885 HousingHousing
-
AAPTS415128501 SealSeal
-
AAPTS515176839 TerminalTerminal
-
PTS515176410 Housing Connector, 4 CircuitsHousing Connector, 4 Circuits
-
PTS415128501 SealSeal
-
PTS710001137 Female TerminalFemale Terminal
-
4710002785 Harness PENTALOCK KIC. Includes 4 to KICHarness PENTALOCK KIC. Includes 4 to KIC
-
188409902000 Tubing 12 mmTubing 12 mm
-
IK710001128 HousingHousing
-
IK710001129 CapCap
-
IK710001130 Female TerminalFemale Terminal
-
IK414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
KIC710001231 HousingHousing
-
KIC710001332 Seal WireSeal Wire
-
KIC710001863 TerminalTerminal
-
KIC710001224 TerminalTerminal
