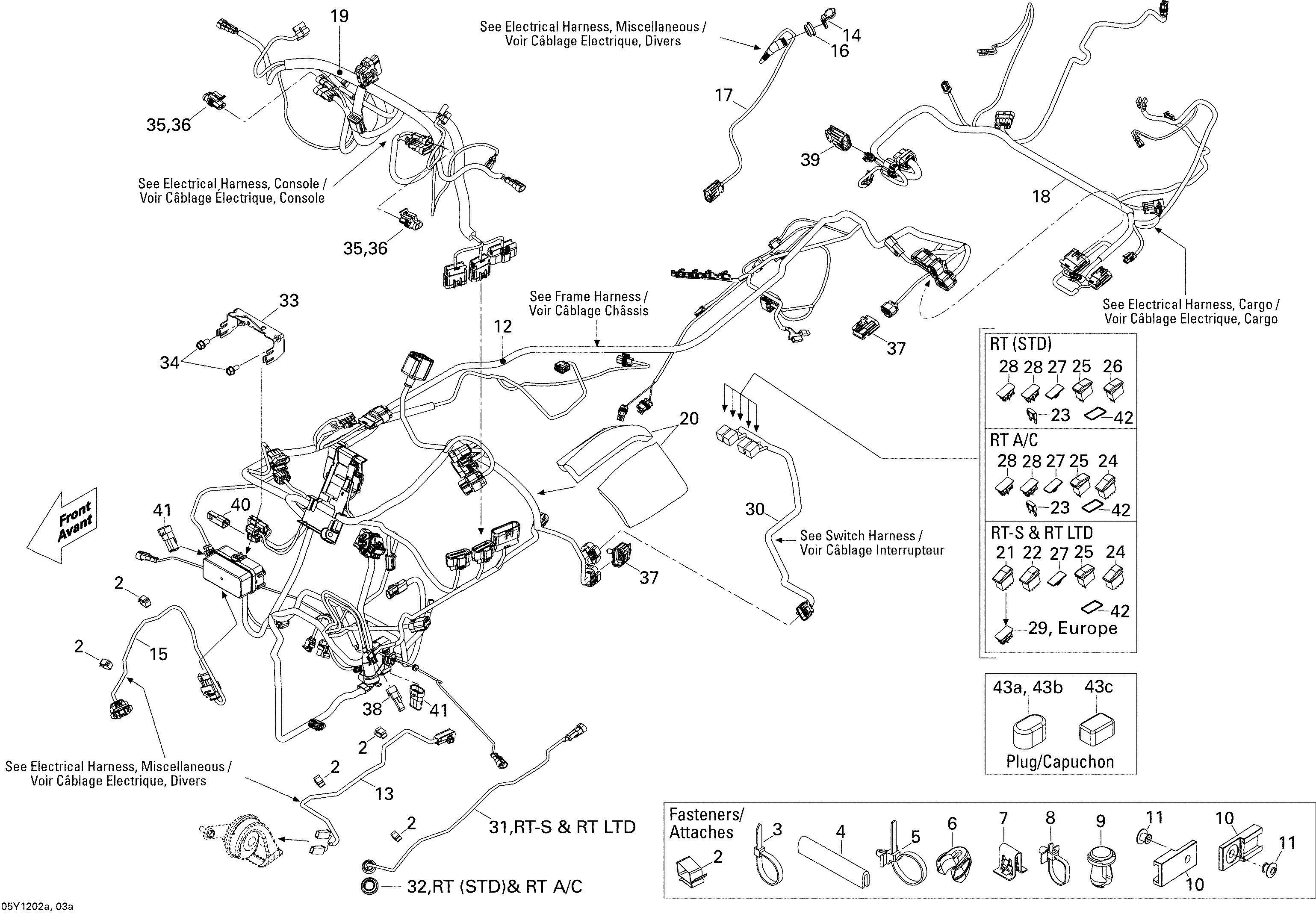

10- Electrical Accessories 1 для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
2414227300 Clip. LTDClip. LTD
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
3515175220 Tie RapTie Rap
-
3515175220 Tie RapTie Rap
-
3515175220 Tie RapTie Rap
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
6710001452 Wire BracketWire Bracket
-
7517302785 Clip. North America LTDClip. North America LTD
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
13710001864 Horn Extension HarnessHorn Extension Harness
-
14710002078 WeathercapWeathercap
-
15710001865 Extended Harness AAPTSExtended Harness AAPTS
-
17710002004 Auxiliary Audio Harness. LTDAuxiliary Audio Harness. LTD
-
18710001490 Cargo HarnessCargo Harness
-
19710001614 Console HarnessConsole Harness
-
20518325516 RH Front Panel FoamRH Front Panel Foam
-
21710002351 Beam Switch. North America S, North America LTDBeam Switch. North America S, North America LTD
-
22710002352 Suspension Switch. LTDSuspension Switch. LTD
-
24710002353 Switch, Hood/Parking BrakeSwitch, Hood/Parking Brake
-
25710002354 Switch, Heat GripSwitch, Heat Grip
-
27710002260 PlugPlug
-
29710001999 Plug Carling. Europe LTDPlug Carling. Europe LTD
-
30710002782 Switch HarnessSwitch Harness
-
31710001533 Trunk Light. LTDTrunk Light. LTD
-
33710001888 Fuse SupportFuse Support
-
34210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
35409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
36409013700 PlugPlug
-
37710002161 Packard Connector With PlugPackard Connector With Plug
-
42710002288 Panel Seal. Europe LTDPanel Seal. Europe LTD
