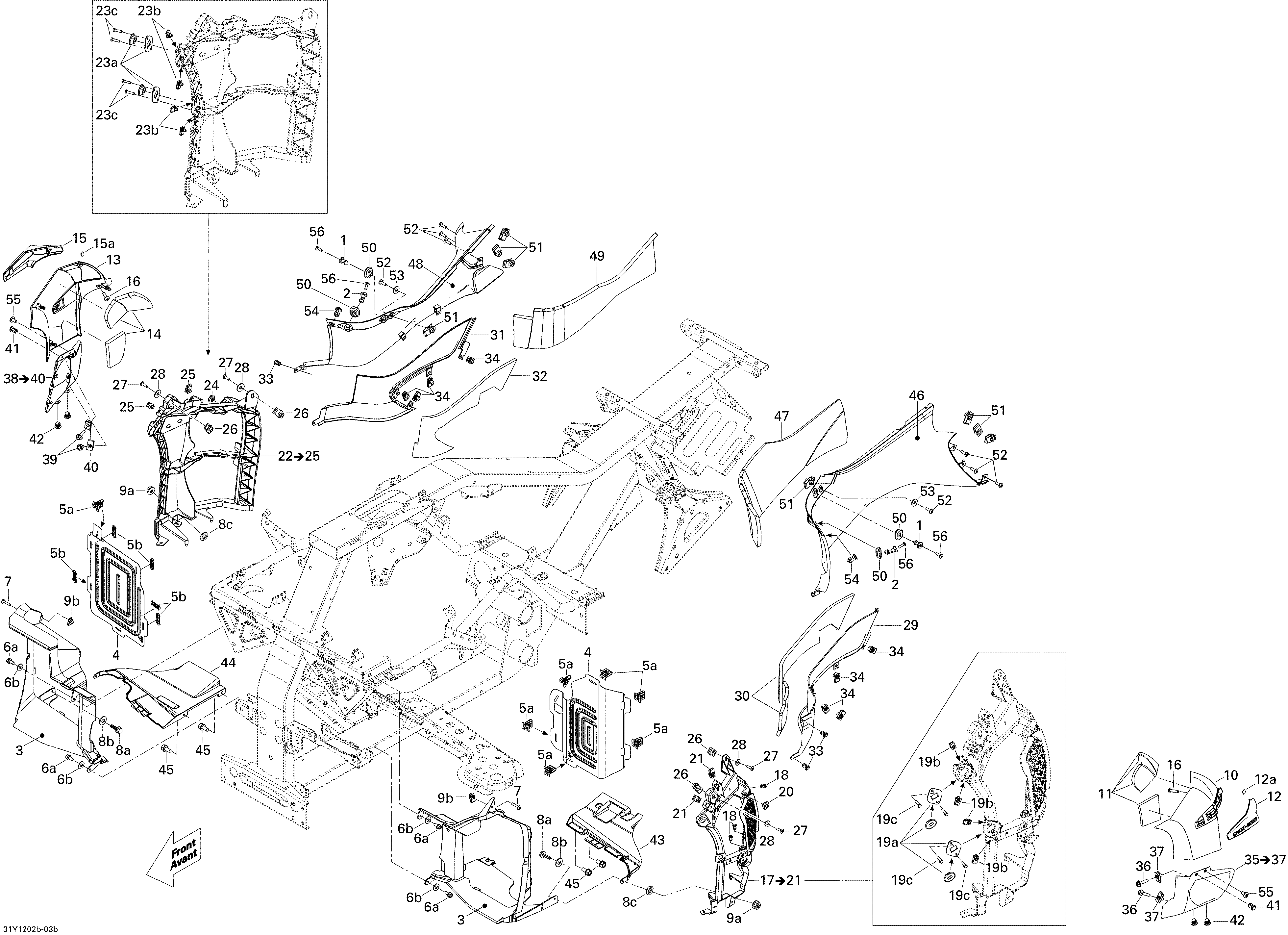

09- Body And Accessories Side для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
1705003842 KnobKnob
-
2705003746 Angled KnobAngled Knob
-
3705005008 LH Radiator BezelLH Radiator Bezel
-
4705005009 LH Radiator GuardLH Radiator Guard
-
3705002758 RH Radiator BezelRH Radiator Bezel
-
4705003793 RH Radiator GuardRH Radiator Guard
-
5a517302785 ClipClip
-
5b705004838 Flat ClipFlat Clip
-
6a210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6b234062670 Flat WasherFlat Washer
-
7250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8a207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
8b234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8c732610072 Push NutPush Nut
-
9a233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9b250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10705006151 LH Lateral Side Panel, Blue. Blue ModelLH Lateral Side Panel, Blue. Blue Model
-
10705006153 LH Lateral Side Panel, Bronze. Bronze ModelLH Lateral Side Panel, Bronze. Bronze Model
-
10705006155 LH Lateral Side Panel, Magnesium. Magnesium ModelLH Lateral Side Panel, Magnesium. Magnesium Model
-
10705006158 LH Lateral Side Panel, White. White ModelLH Lateral Side Panel, White. White Model
-
10705006160 LH Lateral Side Panel, Red. Red ModelLH Lateral Side Panel, Red. Red Model
-
11518324751 LH Side Panel FoamLH Side Panel Foam
-
12219400195 Side Panel Cap Kit, ChromeSide Panel Cap Kit, Chrome
-
12a293830143 Rubber PadRubber Pad
-
13705006152 RH Lateral Side Panel, Blue. Blue ModelRH Lateral Side Panel, Blue. Blue Model
-
13705006154 RH Lateral Side Panel, Bronze. Bronze ModelRH Lateral Side Panel, Bronze. Bronze Model
-
13705006156 RH Lateral Side Panel, Magnesium. Magnesium ModelRH Lateral Side Panel, Magnesium. Magnesium Model
-
13705006157 RH Lateral Side Panel, White. White ModelRH Lateral Side Panel, White. White Model
-
13705006159 RH Lateral Side Panel, Red. Red ModelRH Lateral Side Panel, Red. Red Model
-
14518324752 RH Side Panel FoamRH Side Panel Foam
-
15705003983 RH Side Panel Cap, ChromeRH Side Panel Cap, Chrome
-
16250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
15a293830143 Rubber PadRubber Pad
-
17705005986 LH Side Panel Support Ass'yLH Side Panel Support Ass'y
-
18293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
19a705005055 Grommet Ass'yGrommet Ass'y
-
19b250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19c207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
20705003264 GrommetGrommet
-
21250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
22705005985 RH Side Panel Support Ass'yRH Side Panel Support Ass'y
-
23a705005055 Grommet Ass'yGrommet Ass'y
-
23b250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23C207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
24705003264 GrommetGrommet
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
27250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28250200029 Washer M6Washer M6
-
29705006188 LH Rocker Panel FoamLH Rocker Panel Foam
-
30518324755 LH Rocker Panel FoamLH Rocker Panel Foam
-
31705006187 RH Rocker Panel FoamRH Rocker Panel Foam
-
32518324756 RH Rocker Panel FoamRH Rocker Panel Foam
-
33293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
34250100111 Panel Nut M8Panel Nut M8
-
35705003759 LH Water Deflector Ass'yLH Water Deflector Ass'y
-
36207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
37250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
38705003760 RH Water Deflector Ass'yRH Water Deflector Ass'y
-
39207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
40250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
41293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
42518321954 Fastener PanelFastener Panel
-
43705002755 LH Deflector PanelLH Deflector Panel
-
44705002756 RH Deflector PanelRH Deflector Panel
-
45210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
46705006172 LH Upper Lateral Panel, Blue. Blue ModelLH Upper Lateral Panel, Blue. Blue Model
-
46705006173 LH Upper Lateral Panel, Bronze. Bronze ModelLH Upper Lateral Panel, Bronze. Bronze Model
-
46705006175 LH Upper Lateral Panel, Magnesium. Magnesium ModelLH Upper Lateral Panel, Magnesium. Magnesium Model
-
46705006178 LH Upper Lateral Panel, White. White ModelLH Upper Lateral Panel, White. White Model
-
46705006180 LH Upper Lateral Panel, Red. Red ModelLH Upper Lateral Panel, Red. Red Model
-
47705003757 LH Upper Lateral Panel FoamLH Upper Lateral Panel Foam
-
48705006171 RH Upper Lateral Panel, Blue. Blue ModelRH Upper Lateral Panel, Blue. Blue Model
-
48705006174 RH Upper Lateral Panel, Bronze. Bronze ModelRH Upper Lateral Panel, Bronze. Bronze Model
-
48705006176 RH Upper Lateral Panel, Magnesium. Magnesium ModelRH Upper Lateral Panel, Magnesium. Magnesium Model
-
48705006177 RH Upper Lateral Panel, White. White ModelRH Upper Lateral Panel, White. White Model
-
48705006179 RH Upper Lateral Panel, Red. Red ModelRH Upper Lateral Panel, Red. Red Model
-
49705003758 RH Upper Lateral Panel FoamRH Upper Lateral Panel Foam
-
50705000321 Oval WasherOval Washer
-
51250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
52250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
53234062670 Flat WasherFlat Washer
-
54293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
55250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
56250000459 Torx Screw, K50X16Torx Screw, K50X16
