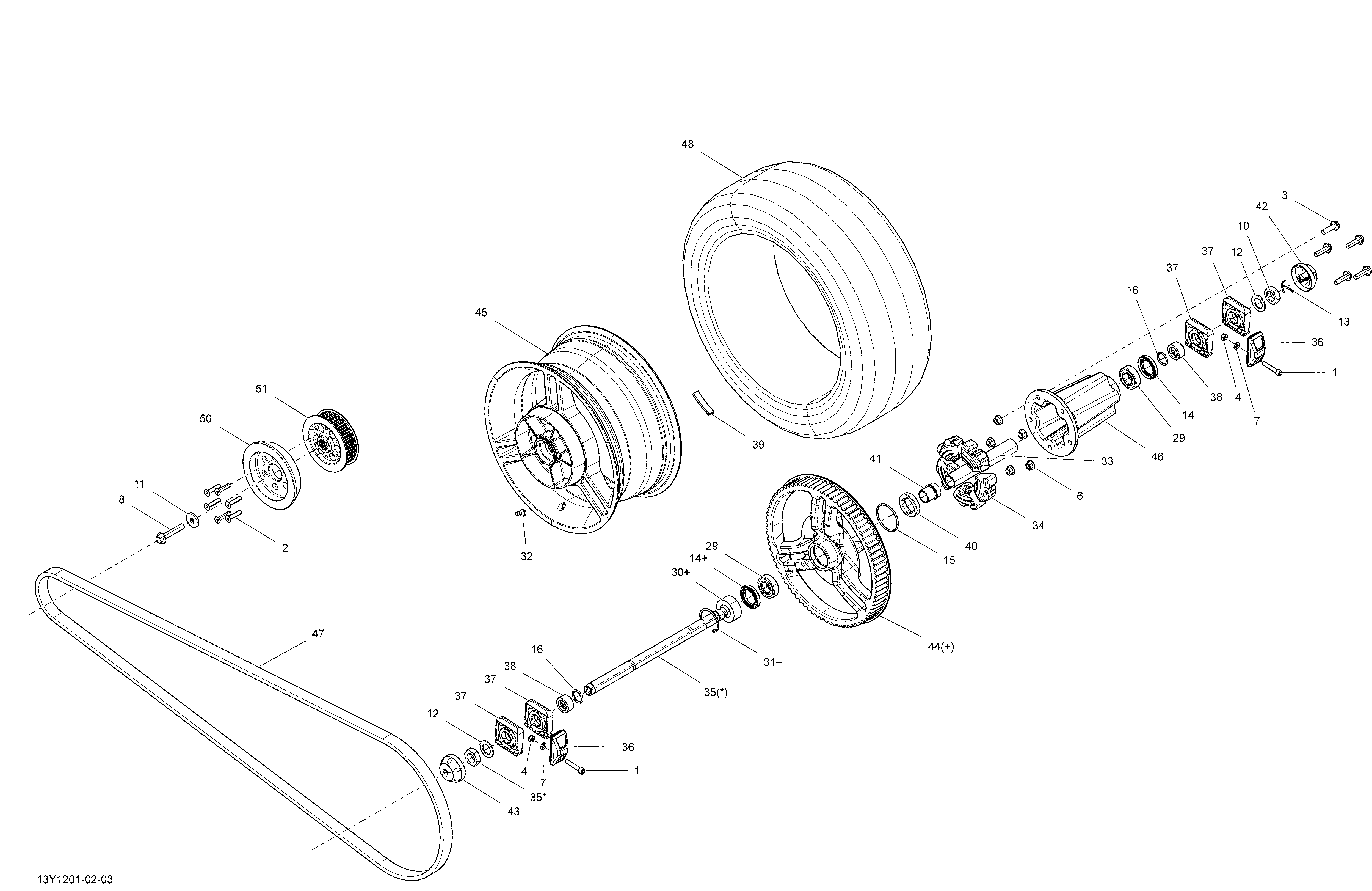

08- Drive System, Rear для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
1250000514 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
2205884046 Socket Screw M8 X 40, Scotch GripSocket Screw M8 X 40, Scotch Grip
-
3207503544 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
4250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6233101414 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
7234081410 Flat Washer 8 mmFlat Washer 8 mm
-
8250000250 Flanged Hex. Screw M12 X 65, Scotch GripFlanged Hex. Screw M12 X 65, Scotch Grip
-
10250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
11250200052 WasherWasher
-
12250200093 Flat WasherFlat Washer
-
13250400047 Cotter PinCotter Pin
-
14293200094 SealSeal
-
15293300124 O-RingO-Ring
-
16293300131 O-RingO-Ring
-
29293350067 Ball BearingBall Bearing
-
30293350065 Double Row BearingDouble Row Bearing
-
31293370053 CirclipCirclip
-
32705400193 Rim Valve With CapRim Valve With Cap
-
33705500583 SpacerSpacer
-
34705500736 DamperDamper
-
35705500746 Rear Drive AxleRear Drive Axle
-
36705501431 Adjustment SupportAdjustment Support
-
37705500770 Sliding BlockSliding Block
-
38705500773 SpacerSpacer
-
39705501430 Adhesive WeightAdhesive Weight
-
40705500852 NutNut
-
41705500853 SpacerSpacer
-
42705501022 Cap RHCap RH
-
43705501081 Cap LHCap LH
-
44705501705 Sprocket 79 Teeth Ass'y, SilverSprocket 79 Teeth Ass'y, Silver
-
45705501117 Rear Wheel Rim, SilverRear Wheel Rim, Silver
-
46705501531 Rear Hub, SilverRear Hub, Silver
-
47705501576 Drive BeltDrive Belt
-
48705501464 Rear TireRear Tire
-
50705501250 FlywheelFlywheel
-
51705501201 28 Teeth Sprocket28 Teeth Sprocket
