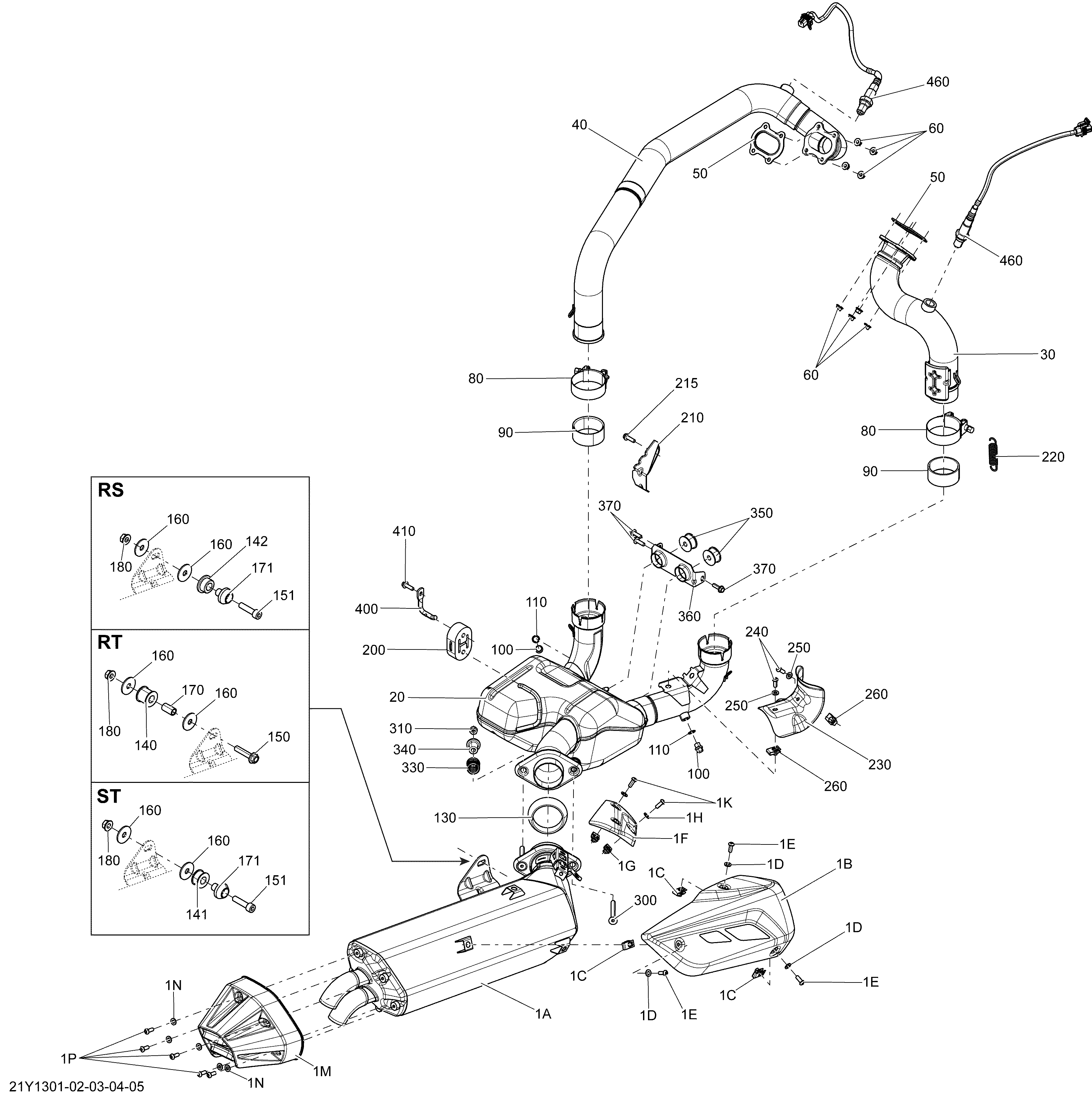

01- Exhaust System для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
1a707601107 Muffler Ass'y. Spyder RT-LTD, Includes 1A to 1PMuffler Ass'y. Spyder RT-LTD, Includes 1A to 1P
-
1b707601271 Heat Shield, Chrome. Spyder RT-LTDHeat Shield, Chrome. Spyder RT-LTD
-
1c250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
1d234061600 Flat Washer M6, Stainless. Spyder RT-LTDFlat Washer M6, Stainless. Spyder RT-LTD
-
1e250000437 Socket Screw, M6 X 16. Spyder RT-LTDSocket Screw, M6 X 16. Spyder RT-LTD
-
1f707601054 Heat Shield, Carbon Black. Spyder RT-LTDHeat Shield, Carbon Black. Spyder RT-LTD
-
1g250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
1h234061670 Flat Washer 6 mm. Spyder RT-LTDFlat Washer 6 mm. Spyder RT-LTD
-
1k250000616 Socket Screw, M6 X 16. Spyder RT-LTDSocket Screw, M6 X 16. Spyder RT-LTD
-
1m707600950 Muffler End Cap, Chrome. Spyder RT-LTDMuffler End Cap, Chrome. Spyder RT-LTD
-
1N234061600 Flat Washer M6, Stainless. Spyder RT-LTDFlat Washer M6, Stainless. Spyder RT-LTD
-
1P250000437 Socket Screw, M6 X 16. Spyder RT-LTDSocket Screw, M6 X 16. Spyder RT-LTD
-
20707601043 Primary MufflerPrimary Muffler
-
30707601044 Rear Exhaust Tuned PipeRear Exhaust Tuned Pipe
-
40707600634 Front Exhaust Tuned PipeFront Exhaust Tuned Pipe
-
50707600296 SealSeal
-
60233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
80707601249 CollarCollar
-
90707600650 Pipe Slip JointPipe Slip Joint
-
100250100122 Threaded Cap M10Threaded Cap M10
-
110414920600 WasherWasher
-
130514053677 Exhaust GasketExhaust Gasket
-
140707600683 Anti-Vibration Rubber. Spyder RT-LTDAnti-Vibration Rubber. Spyder RT-LTD
-
150207504546 Hex. Flanged Screw, M10 X 45 Scotch Grip. Spyder RT-LTDHex. Flanged Screw, M10 X 45 Scotch Grip. Spyder RT-LTD
-
160506150000 Washer 10 mmWasher 10 mm
-
170705003206 Bushing. Spyder RT-LTDBushing. Spyder RT-LTD
-
180233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
200707600638 Rubber BumperRubber Bumper
-
210707601111 DeflectorDeflector
-
215210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
220514054226 SpringSpring
-
230707601042 Heat ShieldHeat Shield
-
240250000437 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
250234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
260250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
300250000404 Socket Screw, M8 X 75Socket Screw, M8 X 75
-
310232581600 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
330707600682 SpringSpring
-
340707600750 BushingBushing
-
350707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
360707600661 Front BracketFront Bracket
-
370210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
400707600666 Retaining RodRetaining Rod
-
410210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
460707600872 Oxygen SensorOxygen Sensor
