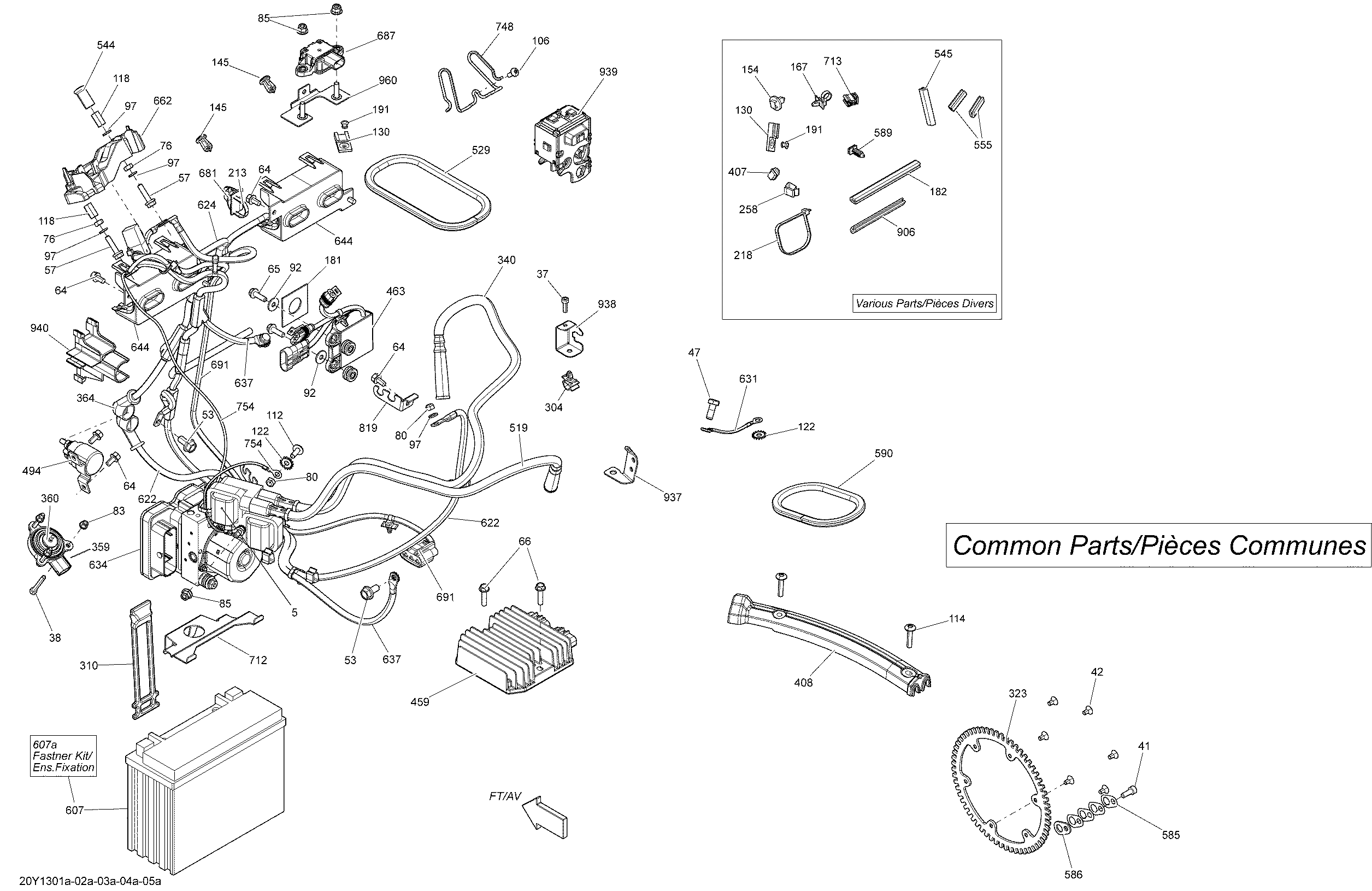

10- Electrical System Common Parts для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
5278001546 Ignition CoilIgnition Coil
-
37205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
38205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
41205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
42205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
47207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
53207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
57207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
64210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
65210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
66210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
76232061600 Hex. Nut M6Hex. Nut M6
-
80232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
83233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
85233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
92234062410 Flat Washer 6 mmFlat Washer 6 mm
-
97234161601 Lock Washer Helical M6Lock Washer Helical M6
-
106250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
112250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
114250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
118250100117 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
122250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
130270000141 ClipClip
-
145293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
154293730018 Mount DartMount Dart
-
167293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
181293830091 Rubber BumperRubber Bumper
-
182271001530 TrimTrim
-
191390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
213414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
218414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
258414227300 ClipClip
-
304515176795 ClipClip
-
310520000528 LatchLatch
-
323705601062 Wheel SensorWheel Sensor
-
340707000518 Cable Ass'yCable Ass'y
-
359709400363 Steering Position SensorSteering Position Sensor
-
360709400362 Encoder MagnetEncoder Magnet
-
364710000393 Protector CapProtector Cap
-
407710000992 ClipClip
-
408710001035 ProtectorProtector
-
459710001191 Voltage RegulatorVoltage Regulator
-
463710001195 DESS ModuleDESS Module
-
494710001364 Starter RelayStarter Relay
-
519707000399 Cable Ass'yCable Ass'y
-
529271001530 TrimTrim
-
544710001610 BootBoot
-
545271001530 TrimTrim
-
555271001530 TrimTrim
-
585710002023 ShimShim
-
586710002024 ShimShim
-
589710002033 HolderHolder
-
590271001530 TrimTrim
-
607410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
622710002372 Starter CableStarter Cable
-
624710002373 Battery Positive CableBattery Positive Cable
-
631710002374 Fuel Tank Negative CableFuel Tank Negative Cable
-
634219800271 Dry Programed Module VCMDry Programed Module VCM
-
637710002378 Negative Main CableNegative Main Cable
-
644710002388 Fuse Holder SupportFuse Holder Support
-
662710002509 Booster HolderBooster Holder
-
681710002633 PlugPlug
-
687710002677 Yaw Rate SensorYaw Rate Sensor
-
691710002716 Regulator CableRegulator Cable
-
712710002893 Battery HolderBattery Holder
-
713710002896 Tie-Rap ClipTie-Rap Clip
-
748710003017 Grommet SpindleGrommet Spindle
-
754710003031 Ground Cable, SolenoideGround Cable, Solenoide
-
819710003157 Speed Sensor HolderSpeed Sensor Holder
-
906271001530 TrimTrim
-
937710003305 Connectors BracketConnectors Bracket
-
938710003306 Knock Holder SupportKnock Holder Support
-
939710003310 Connector SupportConnector Support
-
940710003322 Connector SupportConnector Support
-
960710003494 YRS HolderYRS Holder
-
607a295500849 Battery Fastener KitBattery Fastener Kit
