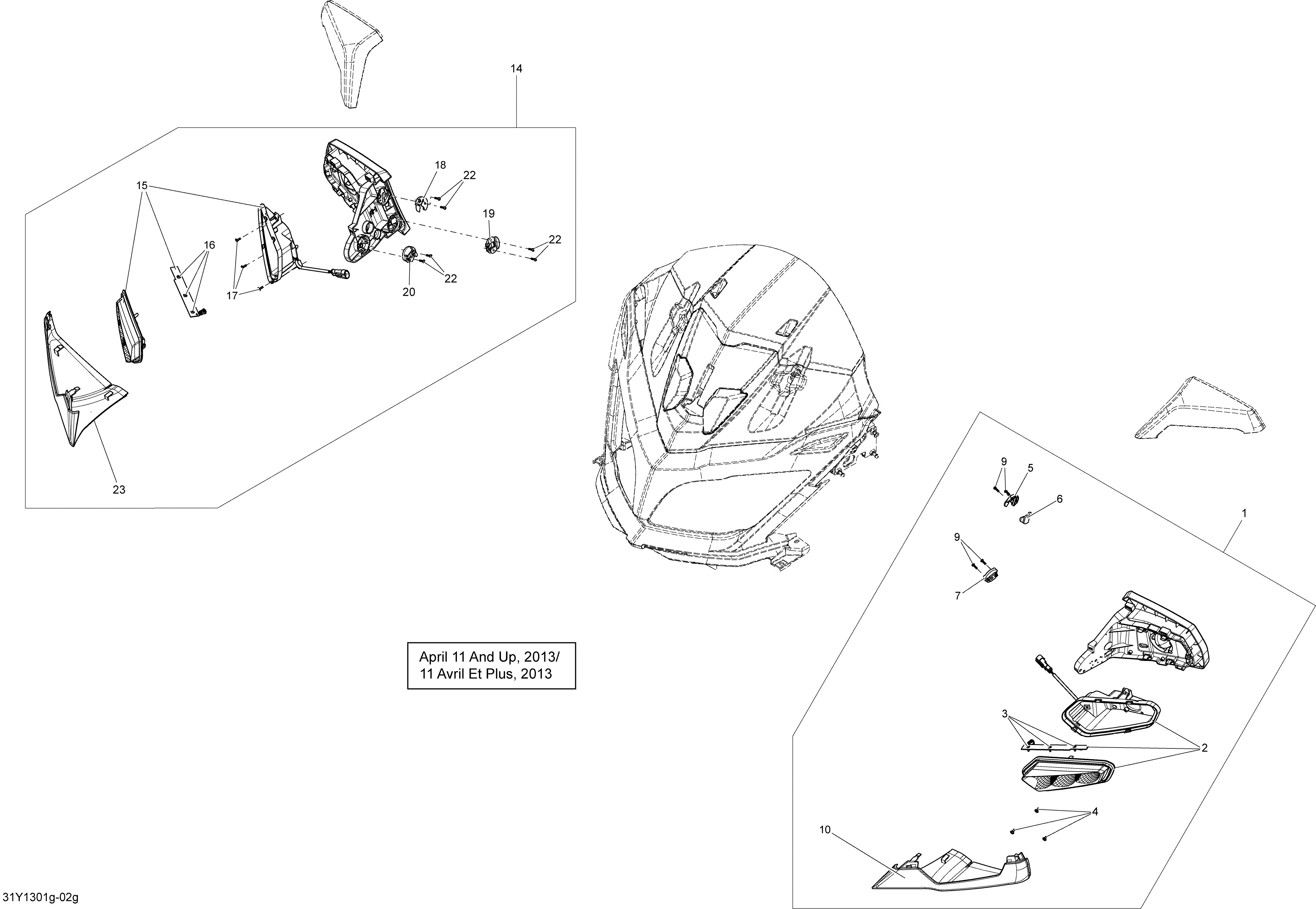

09- Body And Accessories Mirror_31Y1302g для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
1705006966 LH Mirror Ass'y. Includes 1 to 13. April 11 And Up, 2013LH Mirror Ass'y. Includes 1 to 13. April 11 And Up, 2013
-
2710001510 LH Front Flasher UnitLH Front Flasher Unit
-
3219800118 ScrewScrew
-
4219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
5219800286 LH Upper PelletLH Upper Pellet
-
6219800287 Rear Lower PelletRear Lower Pellet
-
7219800288 LH Front Lower PelletLH Front Lower Pellet
-
9250000610 Flanged Screw K30 X 12Flanged Screw K30 X 12
-
10705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
14705006967 RH Mirror Ass'y. Includes 14 to 26. April 11 And Up, 2013RH Mirror Ass'y. Includes 14 to 26. April 11 And Up, 2013
-
15710001511 RH Front Flasher UnitRH Front Flasher Unit
-
16219800118 ScrewScrew
-
17219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
18219800289 RH Upper PelletRH Upper Pellet
-
19219800287 Rear Lower PelletRear Lower Pellet
-
20219800290 RH Front Lower PelletRH Front Lower Pellet
-
22250000610 Flanged Screw K30 X 12Flanged Screw K30 X 12
-
23705003159 RH Lower Mirror ShellRH Lower Mirror Shell
