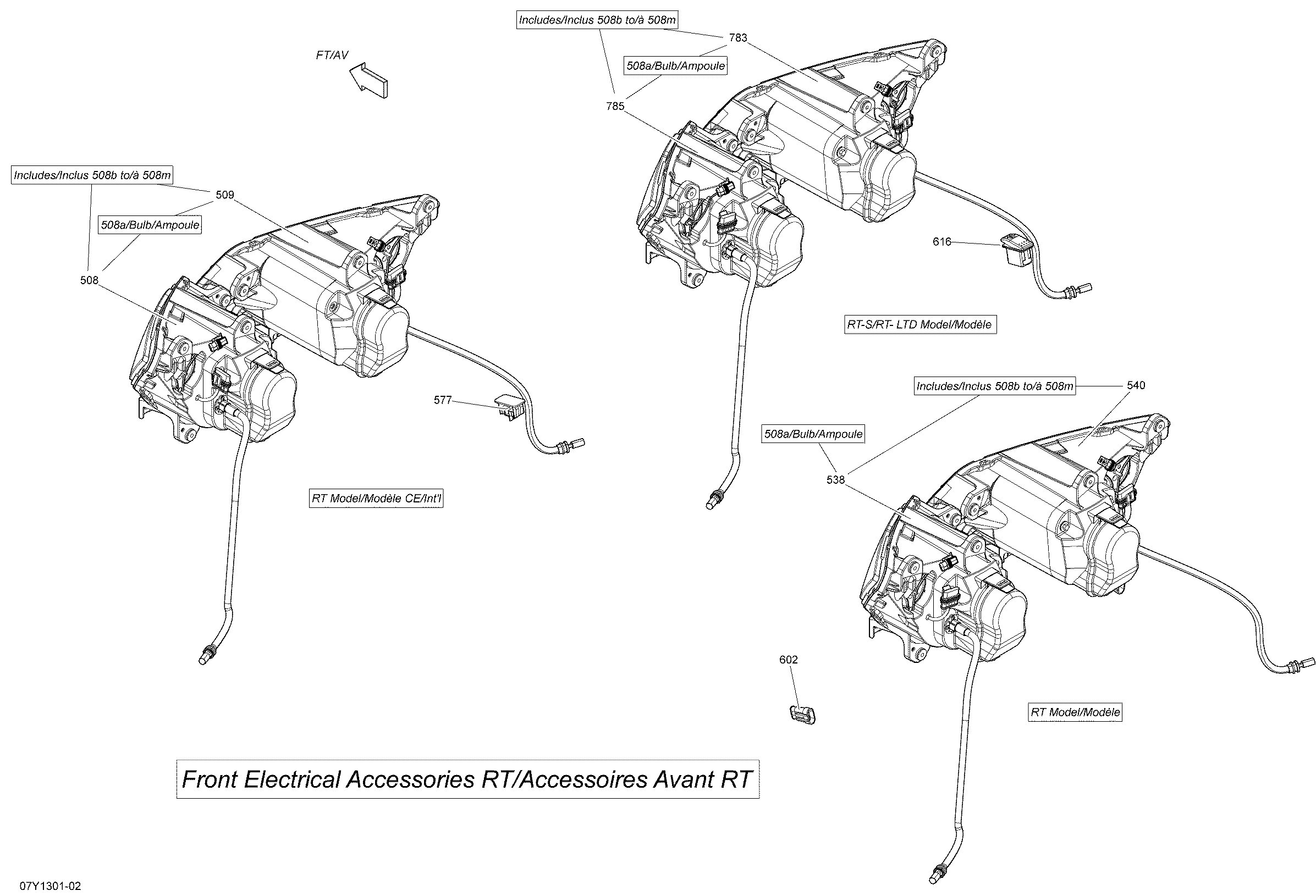

10- Electrical Accessories, Front Headlight для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
508710001384 LH High Beam Ass'y. RT CE/Int'lLH High Beam Ass'y. RT CE/Int'l
-
509710001386 RH High Beam Ass'y. RT CE/Int'lRH High Beam Ass'y. RT CE/Int'l
-
538710001536 LH Bi-Halogen Beam Ass'y. RTLH Bi-Halogen Beam Ass'y. RT
-
540710001537 RH Bi-Halogen Beam Ass'y. RTRH Bi-Halogen Beam Ass'y. RT
-
577710001999 Plug CarlingPlug Carling
-
602710002168 Packard Connector With Plug. RS, RTPackard Connector With Plug. RS, RT
-
616710002351 Beam Switch. RT-S, RT (LTD)Beam Switch. RT-S, RT (LTD)
-
783710003097 RH Bi-Halogen Beam Ass'y. RT-S, RT (LTD)RH Bi-Halogen Beam Ass'y. RT-S, RT (LTD)
-
785710003098 LH Bi-Halogen Beam Ass'y. RT-S, RT (LTD)LH Bi-Halogen Beam Ass'y. RT-S, RT (LTD)
-
508a219800140 Halogen Bulb H9 65WHalogen Bulb H9 65W
-
508b219800110 Chromed Screw 4X13Chromed Screw 4X13
-
508c219800174 Cover With GasketCover With Gasket
-
508d219800111 Adjustement CableAdjustement Cable
-
508e219800100 AntivibrationAntivibration
-
508f219800099 SpacerSpacer
-
508g219800133 Rubber VentilationRubber Ventilation
-
508h219800174 Cover With GasketCover With Gasket
-
508j710002031 Light HousingLight Housing
-
508k710003096 Auxilary LightAuxilary Light
-
508m271001530 TrimTrim
