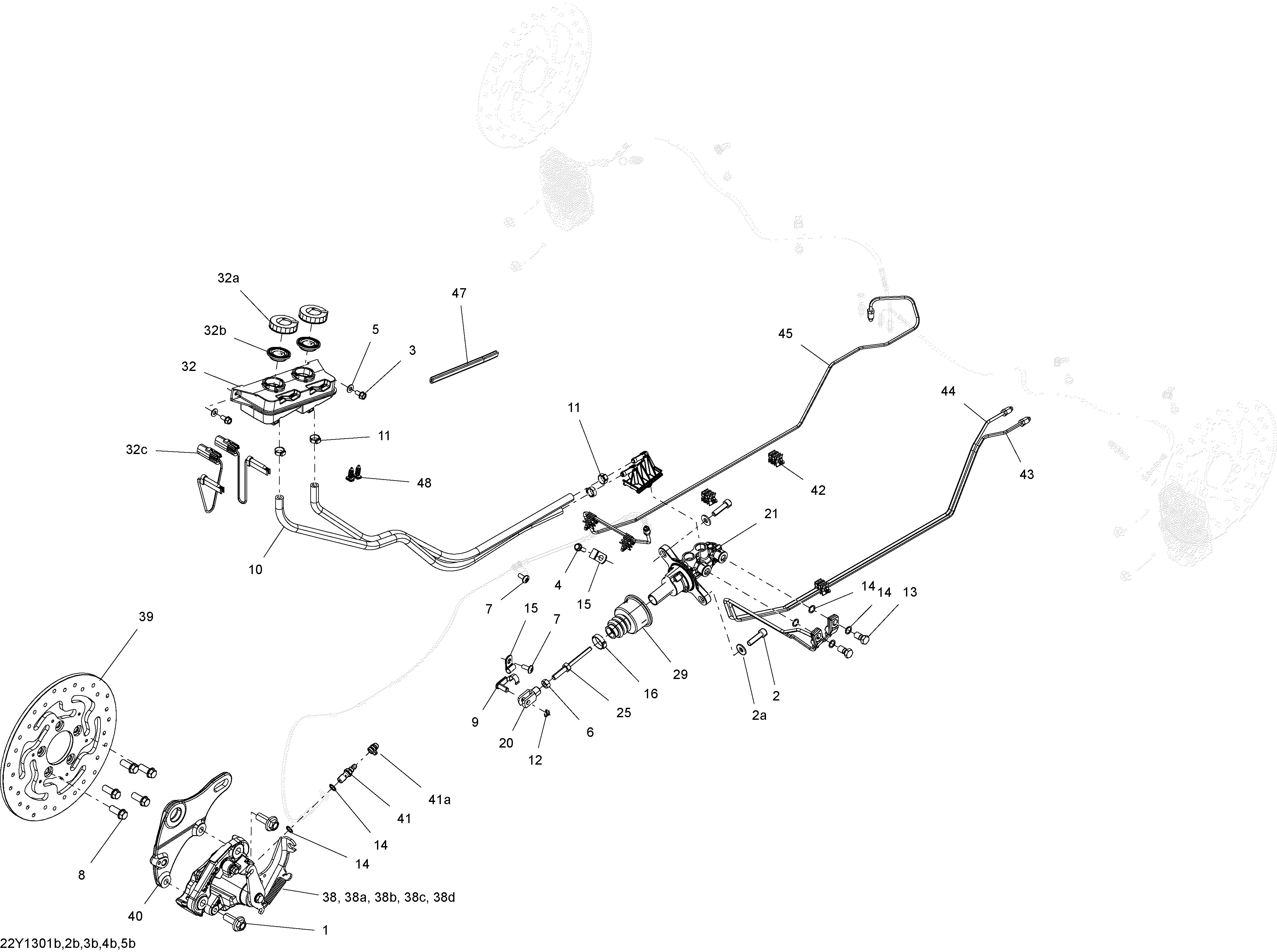

06- Hydraulic Brake, Rear для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
1207523036 Hex. Flanged Screw S.Grip M12 X 30Hex. Flanged Screw S.Grip M12 X 30
-
2205583044 Allen Screw M8 X 30Allen Screw M8 X 30
-
2a506151245 WasherWasher
-
3210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6232081414 Hex. Nut M8Hex. Nut M8
-
7250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
9250400062 PinPin
-
10415129615 Hose 8MMHose 8MM
-
11293650047 Crimp ClampCrimp Clamp
-
12371800700 Cotter PinCotter Pin
-
13414920500 Banjo BoltBanjo Bolt
-
14414920600 WasherWasher
-
15415052400 AttacheAttache
-
16509000442 Oetiker Gear ClampOetiker Gear Clamp
-
20705600100 YokeYoke
-
21705600722 Tandem Cylinder MasterTandem Cylinder Master
-
25705600468 Piston RodPiston Rod
-
29705600716 BellowBellow
-
32705601072 Brake Fluid Reservoir Ass'yBrake Fluid Reservoir Ass'y
-
32705601072 Brake Fluid Reservoir Ass'yBrake Fluid Reservoir Ass'y
-
32a219800058 Cap And Diaphragm KitCap And Diaphragm Kit
-
32c705601073 Oil Level SensorOil Level Sensor
-
38705600989 Rear CaliperRear Caliper
-
38a219800239 Brake Pad KitBrake Pad Kit
-
38b219800240 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
38c219800241 Rear Cable Support KitRear Cable Support Kit
-
38d219800242 Rear Dust CoverRear Dust Cover
-
38705600989 Rear CaliperRear Caliper
-
39705600992 Rear Brake DiskRear Brake Disk
-
40705600993 Rear Caliper BracketRear Caliper Bracket
-
41705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
41a705601190 Bleeder Bolt CapBleeder Bolt Cap
-
42705601061 Rigid Tube BracketRigid Tube Bracket
-
43705601157 Tandem Rigid TubeTandem Rigid Tube
-
44705601158 Tandem Rigid TubeTandem Rigid Tube
-
45705601159 Rear Brake Rigid TubeRear Brake Rigid Tube
-
47271001530 TrimTrim
-
48710002033 HolderHolder
