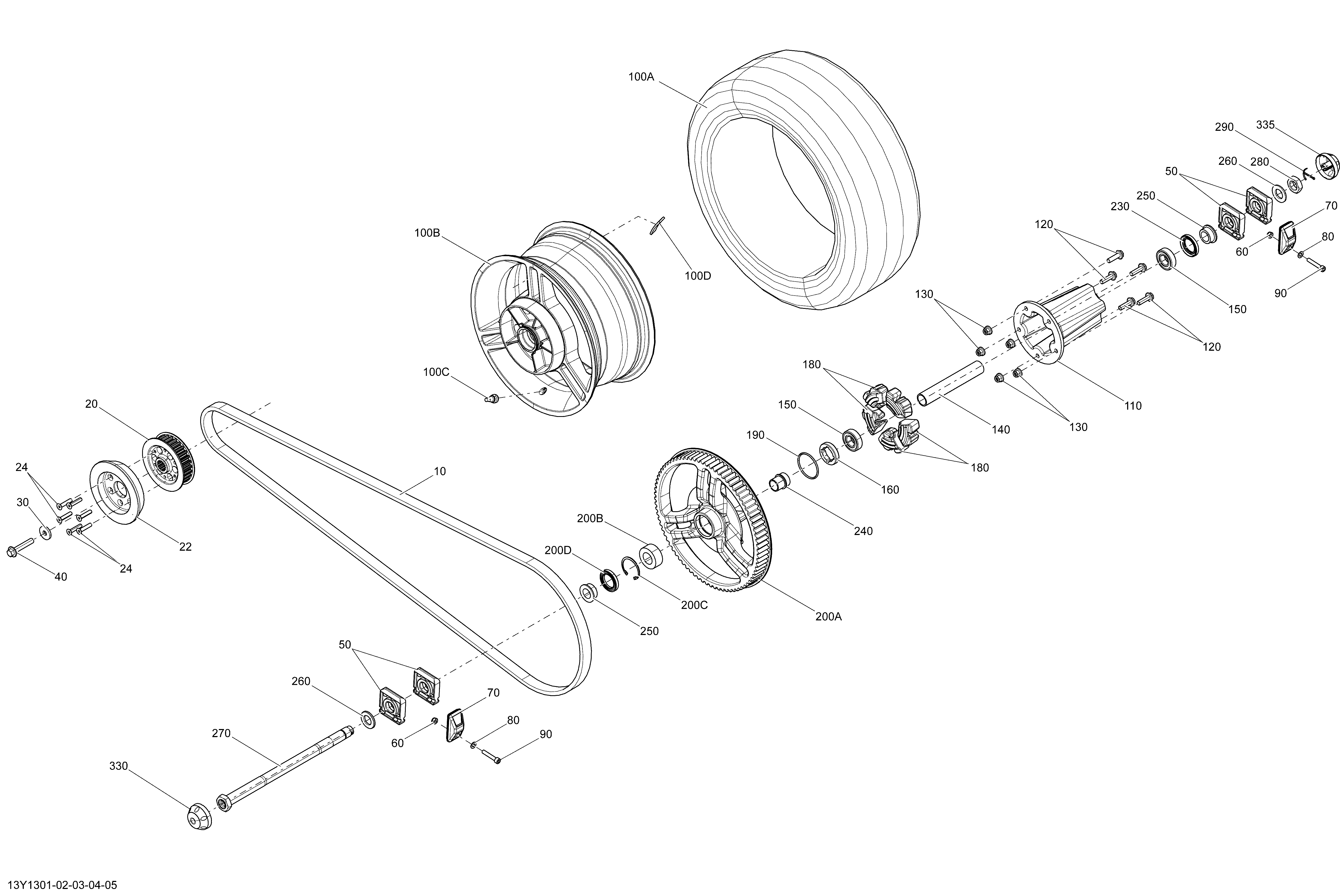

08- Drive System, Rear для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
10705501576 Drive BeltDrive Belt
-
20705501201 28 Teeth Sprocket28 Teeth Sprocket
-
22705501250 FlywheelFlywheel
-
24205884046 Socket Screw M8 X 40, Scotch GripSocket Screw M8 X 40, Scotch Grip
-
30250200052 WasherWasher
-
40250000250 Flanged Hex. Screw M12 X 65, Scotch GripFlanged Hex. Screw M12 X 65, Scotch Grip
-
50705500770 Sliding BlockSliding Block
-
60250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
70705500758 Adjustment SupportAdjustment Support
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90250000514 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
100a705501604 Rear TireRear Tire
-
100b705501722 Rear Wheel Rim, Carbon Black. RT-LTDRear Wheel Rim, Carbon Black. RT-LTD
-
100c705400193 Rim Valve With CapRim Valve With Cap
-
100d705501430 Adhesive WeightAdhesive Weight
-
110705501598 Rear Wheel Hub, Carbon Black. RT-LTDRear Wheel Hub, Carbon Black. RT-LTD
-
120207503587 Flanged Hex. Screw M10 X 35, Scotch GripFlanged Hex. Screw M10 X 35, Scotch Grip
-
130233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
140705501472 SpacerSpacer
-
150293350067 Ball BearingBall Bearing
-
160705500852 NutNut
-
180705500736 DamperDamper
-
190293300124 O-RingO-Ring
-
200a705501705 Sprocket 79 Teeth Ass'y, Metallic Silver. RT-LTD, Includes 200A to 200DSprocket 79 Teeth Ass'y, Metallic Silver. RT-LTD, Includes 200A to 200D
-
200b293350065 Double Row BearingDouble Row Bearing
-
200c293370053 CirclipCirclip
-
200d293200094 SealSeal
-
230293200094 SealSeal
-
240705500853 SpacerSpacer
-
250705501602 SpacerSpacer
-
260250200094 Flat WasherFlat Washer
-
270705501691 Rear Wheel AxleRear Wheel Axle
-
280250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
290250400047 Cotter PinCotter Pin
-
330705501081 Cap LHCap LH
-
335705501022 Cap RHCap RH
