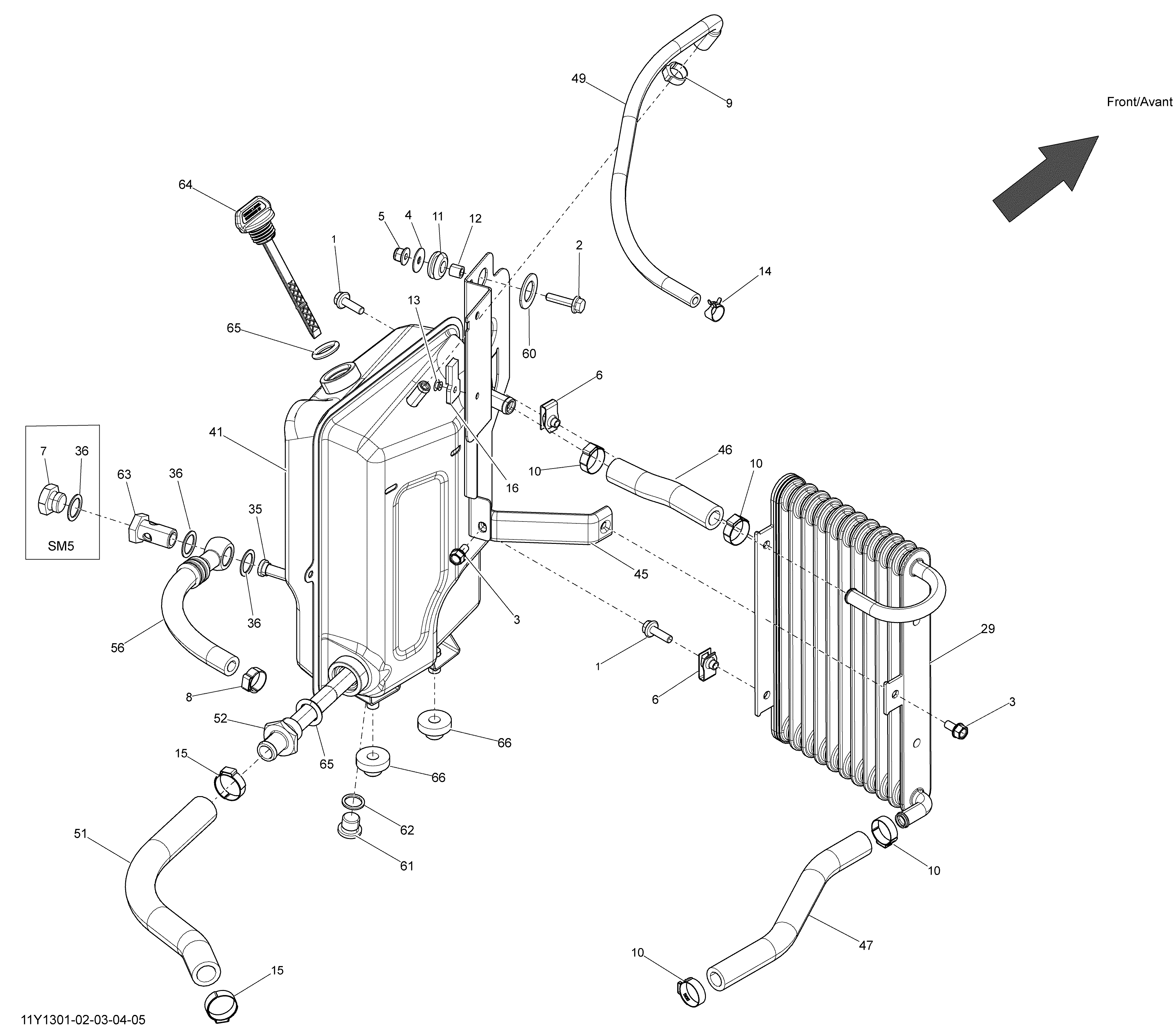

02- Oil System для BRP Spyder RT Limited SE5 - 2013
-
№АртикулНазвание
-
1207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4224060201 Flat WasherFlat Washer
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250100114 Hex. Head Plug M16 X 1.5. SM5 ModelHex. Head Plug M16 X 1.5. SM5 Model
-
8293650030 Oetiker Clamp. SE5 ModelOetiker Clamp. SE5 Model
-
9293650140 Oetiker ClampOetiker Clamp
-
10293650186 Oetiker ClampOetiker Clamp
-
11293720053 GrommetGrommet
-
12293900105 BushingBushing
-
13390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
14414415200 Universal Spring ClampUniversal Spring Clamp
-
15509000552 Gear ClampGear Clamp
-
16515176209 Deutsch Gray ClipDeutsch Gray Clip
-
29519000123 Oil RadiatorOil Radiator
-
35519000144 StrainerStrainer
-
36519000148 Copper Washer. SM5 ModelCopper Washer. SM5 Model
-
36519000148 Copper Washer. SE5 ModelCopper Washer. SE5 Model
-
41519000293 Oil TankOil Tank
-
45519000175 Radiator SupportRadiator Support
-
46519000199 12,7 mm Hose12,7 mm Hose
-
47519000199 12,7 mm Hose12,7 mm Hose
-
49519000208 Formed HoseFormed Hose
-
51519000200 15,9 mm Hose15,9 mm Hose
-
52519000219 StrainerStrainer
-
56519000287 Hose. SE5 ModelHose. SE5 Model
-
60519000295 WasherWasher
-
61705500504 Fill Level PlugFill Level Plug
-
62705500506 Copper WasherCopper Washer
-
63705600527 Banjo Bolt. SE5 ModelBanjo Bolt. SE5 Model
-
64519000155 Oil CapOil Cap
-
65709000218 O-RingO-Ring
-
66709200285 GrommetGrommet
