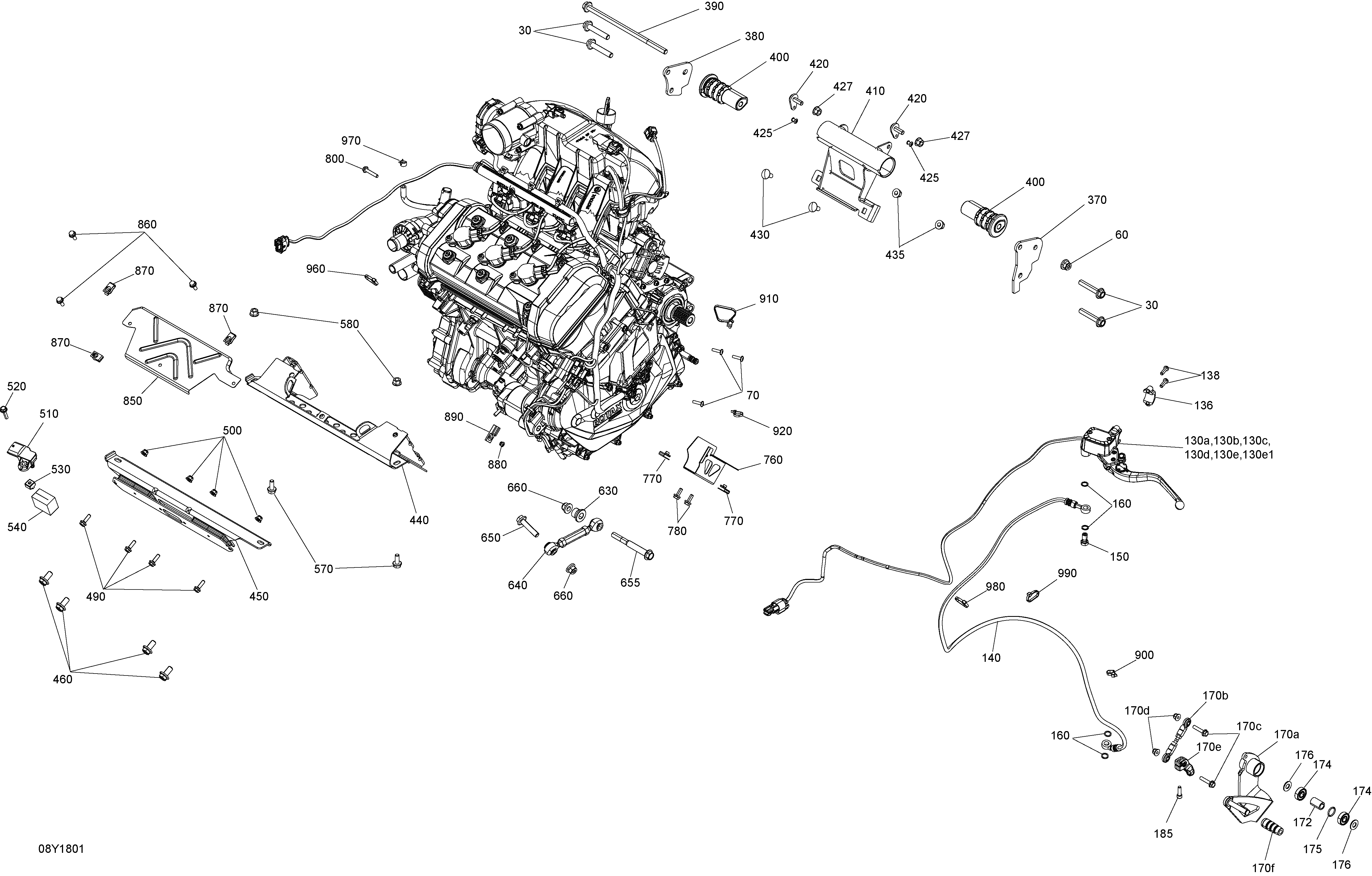

01- Engine для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
30207505544 Hex. Flanged Screw M10 X 55, Scotch GripHex. Flanged Screw M10 X 55, Scotch Grip
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
70250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
130707000972 Master Cylinder Ass'y. Manual. Includes 130 to 130e1Master Cylinder Ass'y. Manual. Includes 130 to 130e1
-
130a707001211 Clutch Lever Ass'y. ManualClutch Lever Ass'y. Manual
-
130b719000049 Clamps Kit. Manual. Includes 130b to 130b1Clamps Kit. Manual. Includes 130b to 130b1
-
130b1250000433 Torx Screw M6 X 20. ManualTorx Screw M6 X 20. Manual
-
130c707000653 Master Cylinder. ManualMaster Cylinder. Manual
-
130d219800297 Microswitch. ManualMicroswitch. Manual
-
130e219800096 Cap Set. Manual. Includes 130e to 130e1Cap Set. Manual. Includes 130e to 130e1
-
130e1415129356 Screw M4 X 20. ManualScrew M4 X 20. Manual
-
136719000049 Clamps Kit. ManualClamps Kit. Manual
-
138250000433 Torx Screw M6 X 20. ManualTorx Screw M6 X 20. Manual
-
140707000879 Hose. ManualHose. Manual
-
150507032551 Banjo Bolt. ManualBanjo Bolt. Manual
-
160414920600 Washer. ManualWasher. Manual
-
170a707001421 Carbon Black Lever. ManualCarbon Black Lever. Manual
-
170b707001103 Double Ball Joint. ManualDouble Ball Joint. Manual
-
170c207662544 Hex. Flanged Screw M6 X 25. ManualHex. Flanged Screw M6 X 25. Manual
-
170d233261414 Hex. Flanged Elastic Nut M6. ManualHex. Flanged Elastic Nut M6. Manual
-
170e707000926 Shifter Arm. ManualShifter Arm. Manual
-
170f707000456 End Clutch Pedal. ManualEnd Clutch Pedal. Manual
-
172705600541 Bushing. ManualBushing. Manual
-
174705600458 Bearing. ManualBearing. Manual
-
175293300191 O-Ring. ManualO-Ring. Manual
-
176234001410 Flat Washer 10 mm. ManualFlat Washer 10 mm. Manual
-
185514054626 Socket Head Screw M6 X 22, Scotch Grip. ManualSocket Head Screw M6 X 22, Scotch Grip. Manual
-
370707001293 LH Engine SupportLH Engine Support
-
380707001294 RH Engine SupportRH Engine Support
-
390250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
400707000973 Rubber MountRubber Mount
-
410707000877 Frame ExtensionFrame Extension
-
420707001292 AttachAttach
-
425390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
427233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
430207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
435233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
440707001561 Front Engine SupportFront Engine Support
-
450707000876 Rubber MountRubber Mount
-
460207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
490207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
500233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
510707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
520207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
530269500725 Nut Housing Ass'y. Includes 530 to 530bNut Housing Ass'y. Includes 530 to 530b
-
530a269500252 M6 Nut Housing Ass'y. Not ShownM6 Nut Housing Ass'y. Not Shown
-
530b232561600 Hex. Elastic Stop Nut M6. Not ShownHex. Elastic Stop Nut M6. Not Shown
-
540707000586 FilterFilter
-
570207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
580233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
630707001736 SpacerSpacer
-
640707001918 Connecting RodConnecting Rod
-
650207504546 Hex. Flanged Screw M10 X 45 Scotch GripHex. Flanged Screw M10 X 45 Scotch Grip
-
655250000702 Hex. Flanged Screw M10 X 100Hex. Flanged Screw M10 X 100
-
660233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
760707001353 Connector SupportConnector Support
-
770250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
780207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
800250000724 Torx Screw M5 X 20. AutomaticTorx Screw M5 X 20. Automatic
-
850707601057 Upper Heat DeflectorUpper Heat Deflector
-
860207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
870250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
880390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
890270000141 ClipClip
-
900293750002 Tie-Rap 142 mm. ManualTie-Rap 142 mm. Manual
-
910515175220 Tie RapTie Rap
-
920293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
960293750008 Tie-Rap 350 mm. AutomaticTie-Rap 350 mm. Automatic
-
970414420700 Spring Clamp. ManualSpring Clamp. Manual
-
980414115200 Tie-Rap 180 mm. ManualTie-Rap 180 mm. Manual
-
990414115200 Tie-Rap 180 mm. ManualTie-Rap 180 mm. Manual
