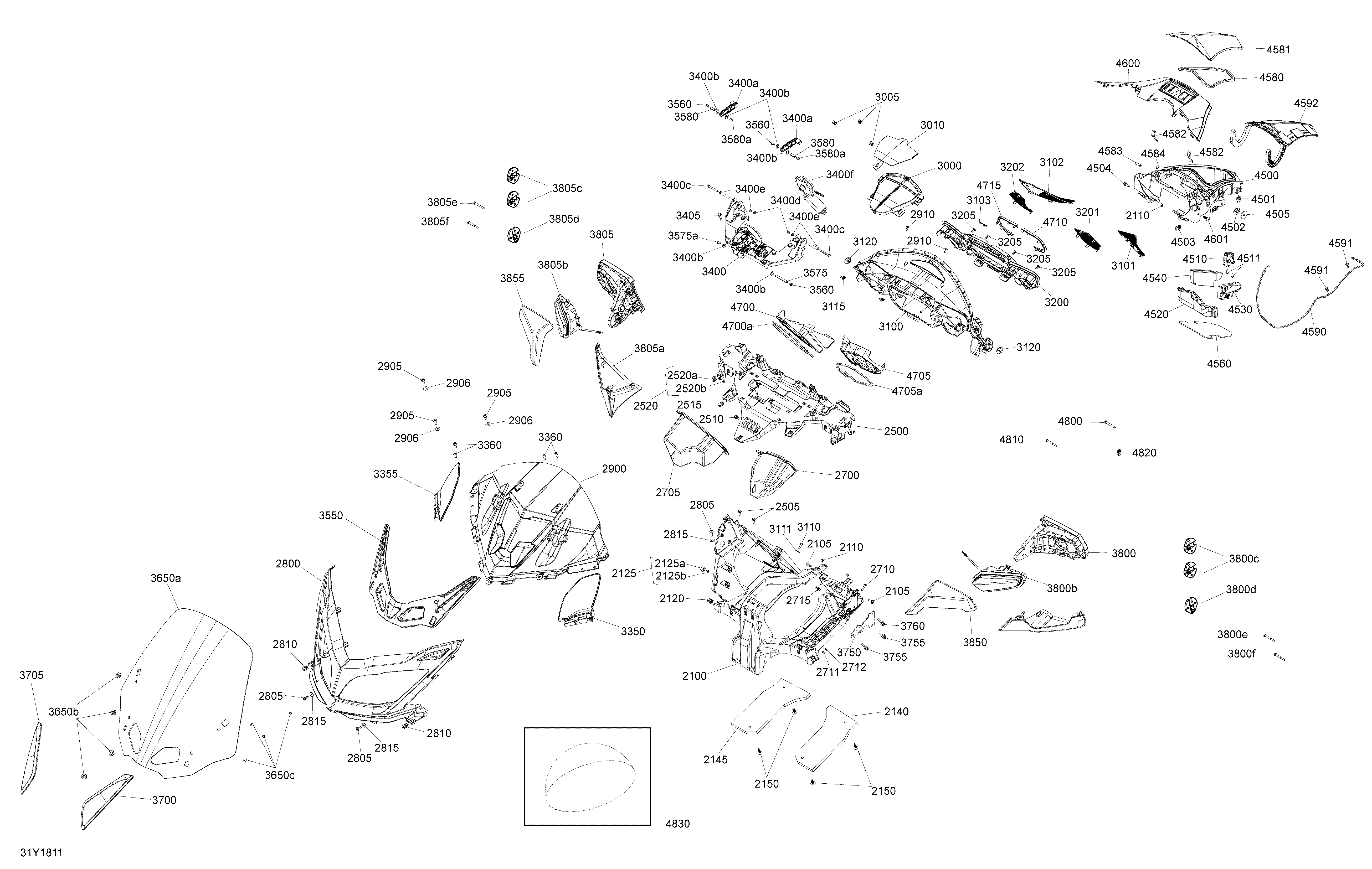

09- Body And Accessories - Console для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
2100705002743 Console SupportConsole Support
-
2105250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
2110232862412 Square Nut M6Square Nut M6
-
2120250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
2125269501166 Nut Housing Ass'y. Includes 2125 to 2125bNut Housing Ass'y. Includes 2125 to 2125b
-
2125a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2125b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2140707800349 LH Acoustic FoamLH Acoustic Foam
-
2145707800341 RH Acoustic FoamRH Acoustic Foam
-
2150293730006 Black DartBlack Dart
-
2500705012150 Console Cross-supportConsole Cross-support
-
2505210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2510207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2515250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
2520269501166 Nut Housing Ass'y. Includes 2520 to 2520bNut Housing Ass'y. Includes 2520 to 2520b
-
2520a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2520b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2700705011996 LH Speaker Hsg Ass'yLH Speaker Hsg Ass'y
-
2705705011997 RH Speaker Hsg Ass'yRH Speaker Hsg Ass'y
-
2710250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2711250100071 Hex. Flanged Nut M5Hex. Flanged Nut M5
-
2712250200025 Washer M5Washer M5
-
2715250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2800705009172 Vegas White P Front ConsoleVegas White P Front Console
-
2805250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2810250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
2815250200164 Flat washer M6Flat washer M6
-
2900705006186 Upper ConsoleUpper Console
-
2905250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2906250200164 Flat washer M6Flat washer M6
-
2910250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3000705002746 Guide Chart SupportGuide Chart Support
-
3005517302785 ClipClip
-
3010705009360 Guide ChartGuide Chart
-
3100705006656 DashboardDashboard
-
3101705011416 LH Lower Speaker GrillLH Lower Speaker Grill
-
3102705011417 RH Lower Speaker GrillRH Lower Speaker Grill
-
3103708400308 BRP Audio LogoBRP Audio Logo
-
3110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3111250200164 Flat washer M6Flat washer M6
-
3115250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3120705000321 Oval WasherOval Washer
-
3200705011418 Dashboard BezelDashboard Bezel
-
3201705011603 LH Upper Speaker GrillLH Upper Speaker Grill
-
3202705011605 RH Upper Speaker GrillRH Upper Speaker Grill
-
3205250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3350705002841 LH Upper Air DeflectorLH Upper Air Deflector
-
3355705002842 RH Upper Air DeflectorRH Upper Air Deflector
-
3360250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3400705011453 Sup Motor Ass'y. Includes 3400 to 3400fSup Motor Ass'y. Includes 3400 to 3400f
-
3400a219800432 Arm-rear Ass'yArm-rear Ass'y
-
3400b705003267 SleeveSleeve
-
3400c207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
3400d232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
3400e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3400f278002579 Windshield MotorWindshield Motor
-
3405207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
3550708400152 SupportSupport
-
3560205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
3575219800355 Retainer Pin Kit. Includes 3575 to 3575aRetainer Pin Kit. Includes 3575 to 3575a
-
3575a205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
3580219800355 Retainer Pin Kit. Includes 3580 to 3580aRetainer Pin Kit. Includes 3580 to 3580a
-
3580a205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
3650a219400415 WindshieldWindshield
-
3650b705003756 Windshield GrommetWindshield Grommet
-
3650c705005756 SleeveSleeve
-
3700705007411 Black Deep Windshield Cap LHBlack Deep Windshield Cap LH
-
3705705007412 Black Deep Windshield Cap RHBlack Deep Windshield Cap RH
-
3750705003779 Console Support PlateConsole Support Plate
-
3755705004322 Spherical Head StudSpherical Head Stud
-
3760705004323 Spherical Head StudSpherical Head Stud
-
3800708400146 LH Mirror. Includes 3800 to 3800bLH Mirror. Includes 3800 to 3800b
-
3800a705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
3800b710001510 LH Front Flasher UnitLH Front Flasher Unit
-
3800c219800156 HousingHousing
-
3800d219800158 HousingHousing
-
3800e219800118 ScrewScrew
-
3800f219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
3805708400147 RH Mirror. Includes 3805 to 3805bRH Mirror. Includes 3805 to 3805b
-
3805a705003159 RH Lower Mirror ShellRH Lower Mirror Shell
-
3805b710001511 RH Front Flasher UnitRH Front Flasher Unit
-
3805c219800156 HousingHousing
-
3805d219800158 HousingHousing
-
3805e219800118 ScrewScrew
-
3805f219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
3850705007405 Vegas White Pearl LH Upper Mirror ShellVegas White Pearl LH Upper Mirror Shell
-
3855705007406 Vegas White Pearl RH Upper Mirror ShellVegas White Pearl RH Upper Mirror Shell
-
4500705002726 Glove BoxGlove Box
-
4501250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4502705000321 Oval WasherOval Washer
-
4503250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4504207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4505705007085 Rubber WasherRubber Washer
-
4510705007380 Push LatchPush Latch
-
4511250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
4520219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
4530219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
4540219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
4560219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
4580219800143 Neoprene Seal, MeterNeoprene Seal, Meter
-
4581705006973 White Glove Box CoverWhite Glove Box Cover
-
4582705003748 Glove Box SpringGlove Box Spring
-
4583705003295 Retainer PinRetainer Pin
-
4584705600272 CirclipCirclip
-
4590705007381 Glove Box CableGlove Box Cable
-
4591293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4592705009361 Door BoxDoor Box
-
4600705004461 Center PanelCenter Panel
-
4601293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4700708400242 RH Speaker Support Ass'y. Includes 4700 to 4700aRH Speaker Support Ass'y. Includes 4700 to 4700a
-
4700a293250143 SealSeal
-
4705708400243 LH Speaker Support Ass'y. Includes 4705 to 4705aLH Speaker Support Ass'y. Includes 4705 to 4705a
-
4705a293250143 SealSeal
-
4710705012349 Black LH TrimBlack LH Trim
-
4715705012351 Black RH TrimBlack RH Trim
-
4800250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4810250000455 Torx Screw M5 X 25Torx Screw M5 X 25
-
4820250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4830705005666 Windshield Rubber BumperWindshield Rubber Bumper
