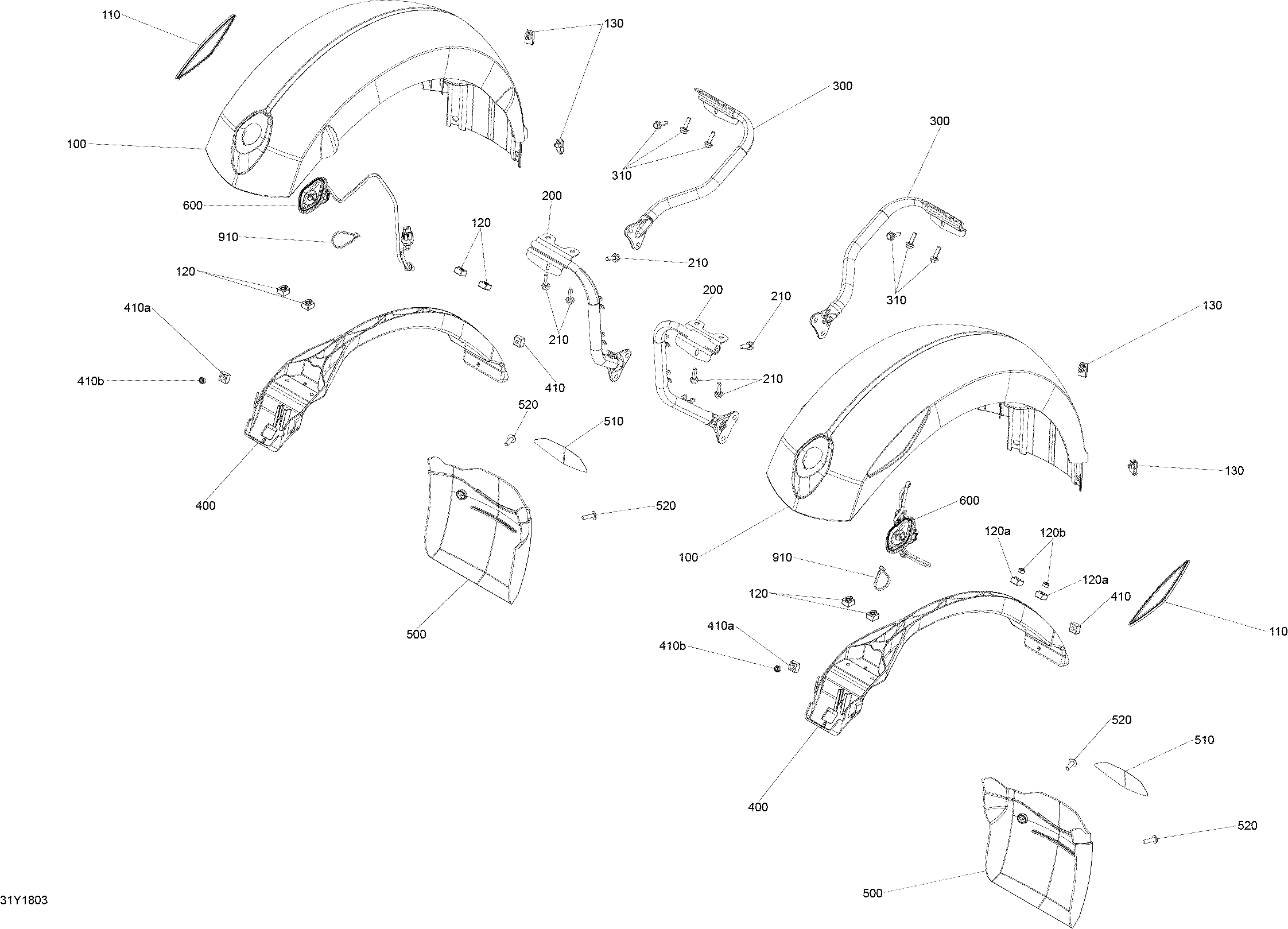

09- Body And Accessories - Fender для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
100705003904 Pearl White LH Front Fender. Model Pearl WhitePearl White LH Front Fender. Model Pearl White
-
100705003903 Pearl White RH Front Fender. Model Pearl WhitePearl White RH Front Fender. Model Pearl White
-
110705002423 Lateral Reflector, AmberLateral Reflector, Amber
-
120269500725 Nut Housing Ass'yNut Housing Ass'y
-
120a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
120b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
130250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
200705010102 LH Painted Fender Front SupportLH Painted Fender Front Support
-
200705010103 RH Painted Fender Front SupportRH Painted Fender Front Support
-
210207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
300705010100 LH Painted Fender Rear SupportLH Painted Fender Rear Support
-
300705010101 RH Painted Fender Rear SupportRH Painted Fender Rear Support
-
310207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
400705002389 Central Front Fender SupportCentral Front Fender Support
-
410269500725 Nut Housing Ass'yNut Housing Ass'y
-
410a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
410b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
500705001767 LH MudguardLH Mudguard
-
500705001768 RH MudguardRH Mudguard
-
510704901160 Reflective StripeReflective Stripe
-
520250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
600710003295 Position LightPosition Light
-
910293750002 Tie-Rap 142 mmTie-Rap 142 mm
