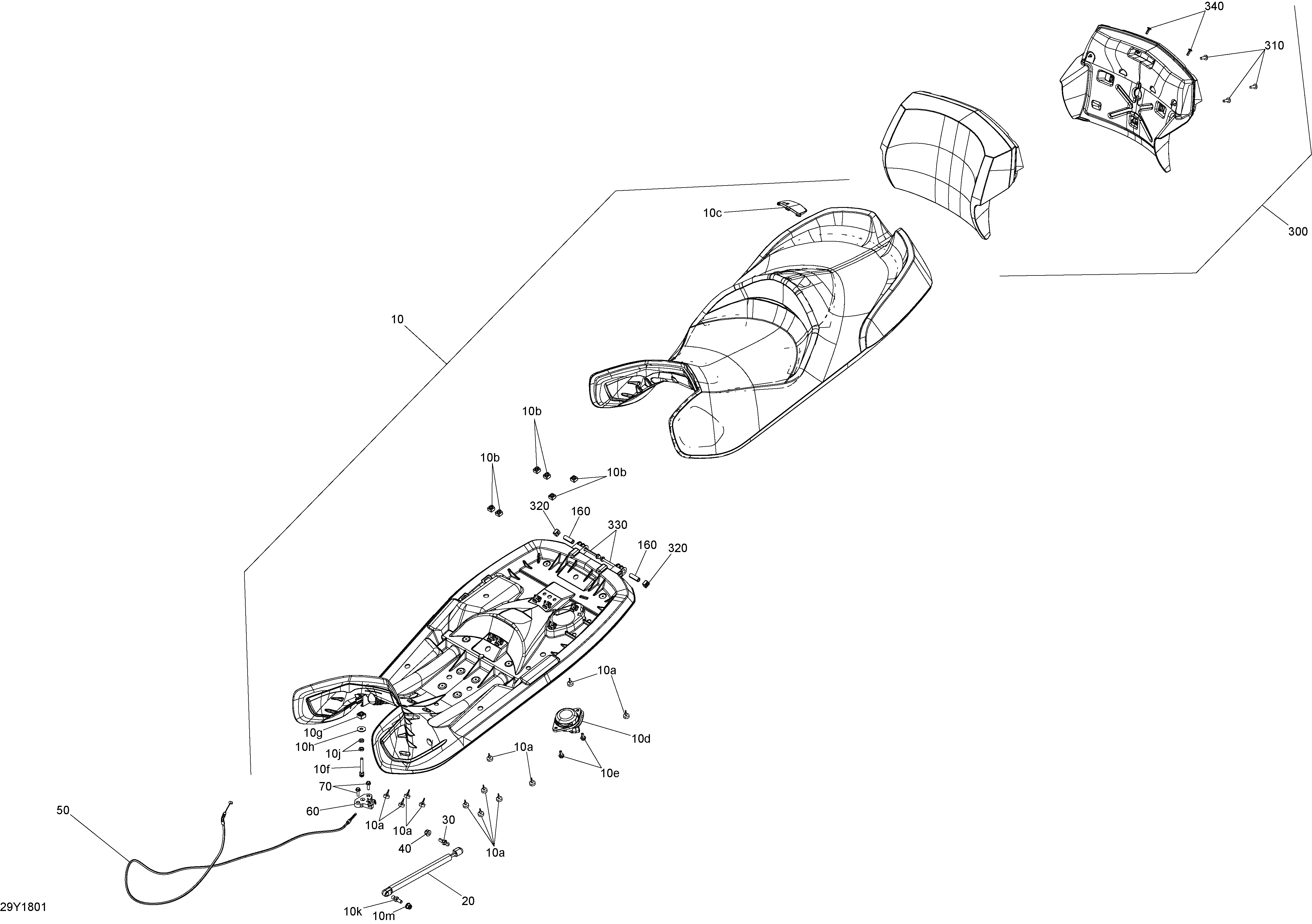

09- Seat для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
10708002539 Seat 2 Places Ass'y. Includes 10 to 10mSeat 2 Places Ass'y. Includes 10 to 10m
-
10a708000759 Rubber StopperRubber Stopper
-
10b269501166 Nut Housing Ass'y. Includes 10b to 10b2Nut Housing Ass'y. Includes 10b to 10b2
-
10b1269500252 M6 Nut Housing Ass'y. Not ShownM6 Nut Housing Ass'y. Not Shown
-
10b2232561200 Elastic Stop Nut M6, Brass. Not ShownElastic Stop Nut M6, Brass. Not Shown
-
10c708001633 Black CapBlack Cap
-
10d710005543 Passanger Detection SwitchPassanger Detection Switch
-
10e207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10f705002223 LugLug
-
10g269501943 Elastic Nut Housing M8. Includes 10g to 10g1Elastic Nut Housing M8. Includes 10g to 10g1
-
10g1232581200 Hex. Elastic Nut M8, Brass. Not ShownHex. Elastic Nut M8, Brass. Not Shown
-
10h234082410 Flat Washer 8 mmFlat Washer 8 mm
-
10j232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
10k250300039 Ball Head StudBall Head Stud
-
10m233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20708000658 Gaz ShockGaz Shock
-
30250300039 Ball Head StudBall Head Stud
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50708001743 Seat CableSeat Cable
-
60705007379 LatchLatch
-
70210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
160708000664 SpacerSpacer
-
300708002536 Backrest Passenger Ass'yBackrest Passenger Ass'y
-
310250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
320269500725 Nut Housing Ass'y. Includes 320 to 320bNut Housing Ass'y. Includes 320 to 320b
-
320a269500252 M6 Nut Housing Ass'y. Not ShownM6 Nut Housing Ass'y. Not Shown
-
320b232561600 Hex. Elastic Stop Nut M6. Not ShownHex. Elastic Stop Nut M6. Not Shown
-
330250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
340250000720 Torx Screw K50 X 16Torx Screw K50 X 16
